MANUAL TRANSMISSION [Y16M-D]
05–11–6
CONTROL ROD OPERATION
CHU051101025S07
• The control rod sliding section and the supports of each shift fork are equipped with a teflon bushing, which
reduces sliding resistance during shifts and thus improves shift feeling.
End Of Sie
SHIFT INTERLOCK MECHANISM FUNCTION
CHU051101025S08
• The shift interlock mechanism prevents double engagement. Two interlock blocks, which can only move in the
selected direction, and a ball located between shift fork shafts No.2 and No.3 operate together to restrict the
movement of the unselected shift forks, thereby ensuring reliability.
End Of Sie

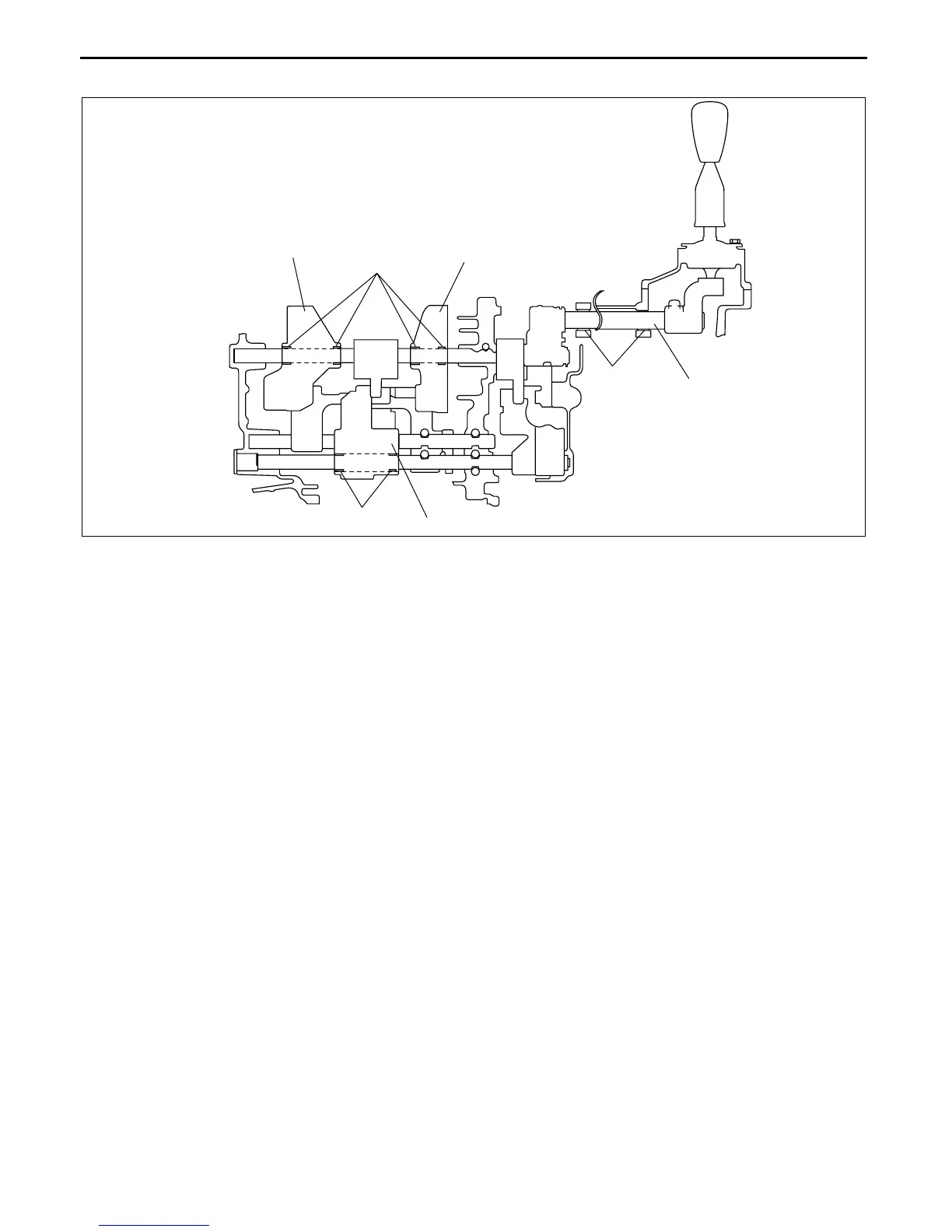

5TH/REVERSE SHIFT FORK
BUSHING
1ST/2ND SHIFT FORK
CONTROL ROD
BUSHING
3RD/4TH SHIFT FORK
BUSHING
CHU0511S109
