Mazda RX-8 2004 - Up Switch; Down Switch; Steering Shift Switch Construction;Operation; Operation

AUTOMATIC TRANSMISSION SHIFT MECHANISM
05–14–4
End Of S ie
STEERING SHIFT SWITCH FUNCTION
CHU051446010S03
• When an up-shift or down-shift operation is detected in M range, an up-shift or down-shift request signal is sent
to the TCM.
End Of Sie

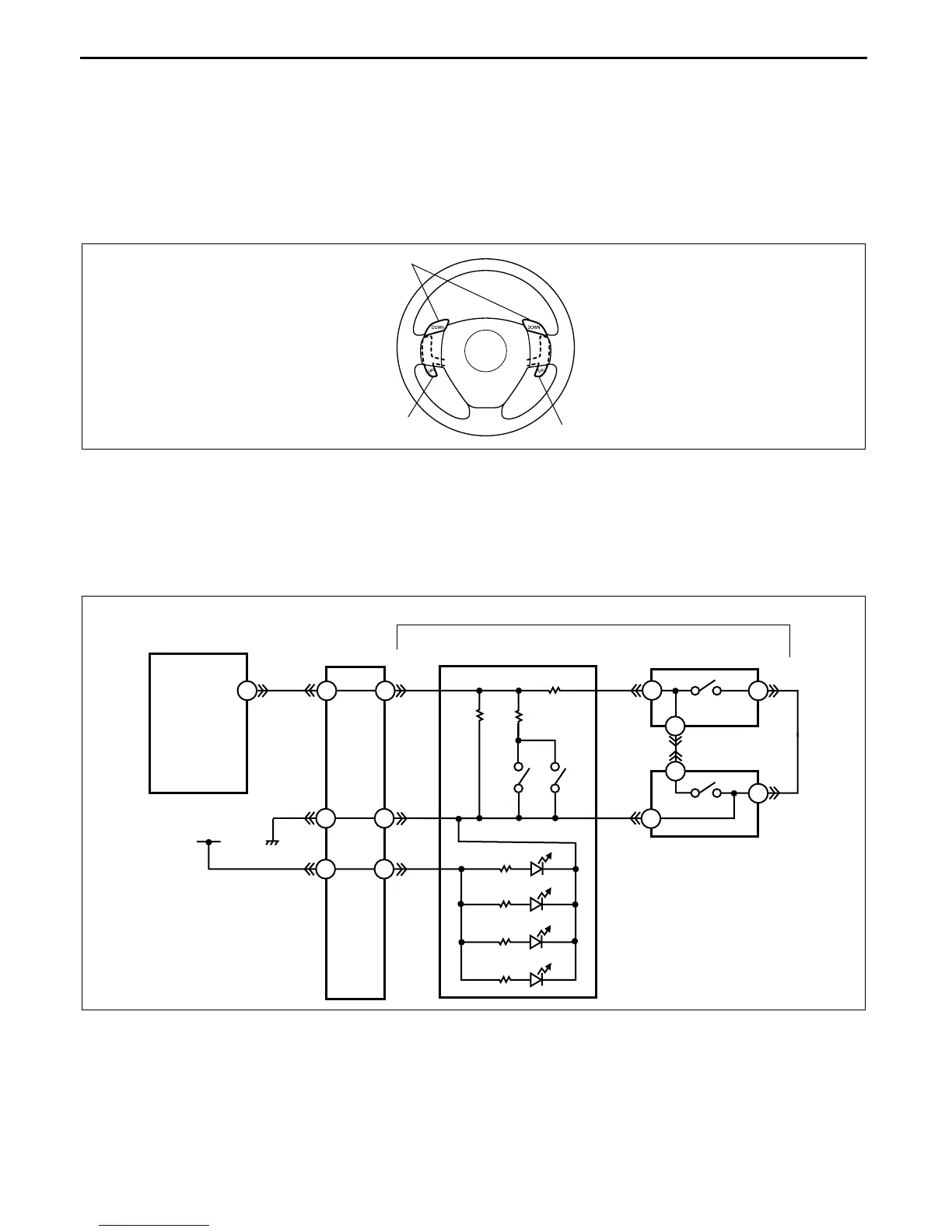

STEERING SHIFT SWITCH CONSTRUCTION/OPERATION
CHU051446010S04
Construction
• There is one pair of up and down switches on both the left and right sides of the steering wheel.
• The down switch is built into the audio control and cruise control switches. (For vehicles without cruise control,
there is only a down switch.)
Operation
Sending of up/down-shift request signals
• The TCM detects an up/down-shift request signal according to the voltage applied to terminal 1W.
• When the up or down switch is operated, the resistor built into the down switch changes the voltage applied to
TCM terminal 1W.
• The TCM controls upshifting or downshifting based on this change in voltage.
End Of Sie
DOWN SWITCH
UP SWITCH
UP SWITCH
CHU0514S201
TCM
1W
CLOCK
SPRING
DOWN SWITCH
UP SWITCH (LH)
UP SWITCH (RH)
STEERING SHIFT SWITCH
RH
LH
5C
5F
C
C
B
B
A
2C
A
2F
DOWN (RH)
DOWN (LH)
UP (RH)
UP (LH)
TNS
5D 2D
CHU0514S202
