ECCENTRIC SHAFT CONSTRUCTION
CHU011011901S01
• The highly durable, forged carbon steel eccentric shaft is processed with induction hardening for improved
wear resistance.
• The oil passage supplying lubrication for each journal and the rotor cooling oil jet plugs, runs from the front end
of the eccentric shaft to the rear main journal.
• The rotor cooling oil jet plugs inject oil into the rotor interior.
End Of Sie

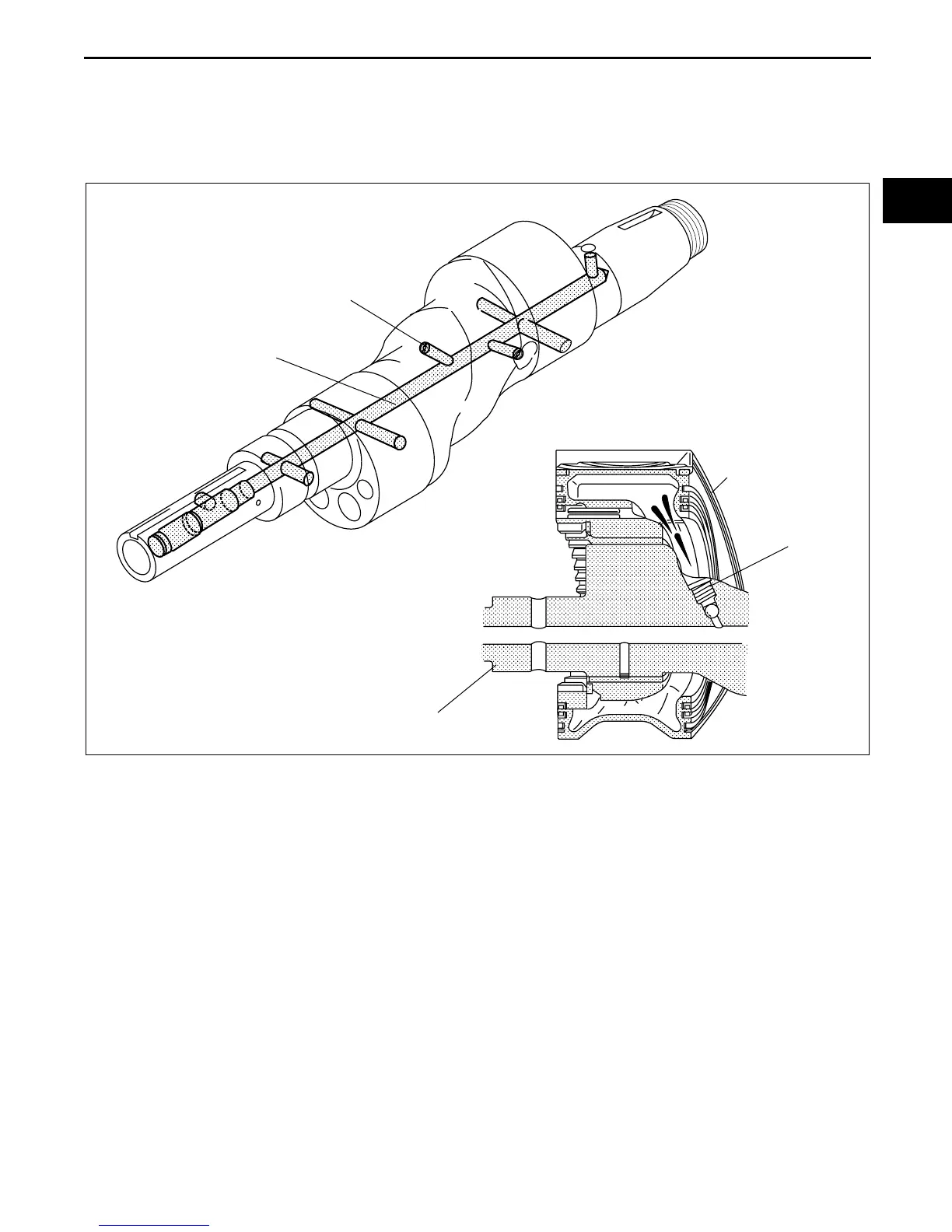

OIL PASSAGE
OIL JET PLUG
ECCENTRIC SHAFT
ROTOR
OIL JET PLUG
CHJ0110S009
