ENTERTAINMENT
09–20–2
ENTERTAINMENT OUTLINE
CHU092001066S01
• The center panel module installed with the audio unit and the audio switch, A/C switch, hazard warning switch
and rear window defroster switch built into the center panel has been adopted.
• The audio unit consists of the following parts:
— Base unit, which has AM/FM tuner and control function for each module
— Upper module (CD player or CD changer)
— Lower module (cassette deck or MD player)
— Cover
• Upper module (CD player or CD changer) and lower module (cassette deck or MD player) are options.
• Module availability depends on vehicle grade.
• An audio control switch is equipped on the steering wheel for audio operation.
• The glass antenna has been adopted.
• The following speakers have been adopted for standard specification vehicles (6 speakers):
— Front door speaker (2)
— Rear speaker (2)
— Front tweeter (2)
• The following speakers have been adopted for BOSE specification vehicles (9 speakers):
— Front door speaker (2)
— Rear speaker (2)
— Front tweeter (2)
— Rear tweeter (2)
— Center speaker (1)
• The auto level control (ALC) function has been adopted. (Standard specification vehicle)
• The noise-response sound compensation system (AudioPilot*) has been adopted. (BOSE specification
vehicle)
• A noise filter has been installed on the brake light, and rear window defroster circuit, and a condenser has been
installed on the high-mount brake light and trunk compartment light circuit for improved noise reduction.
• All information related to the audio system appears on the information display’s LCD.
* : “AudioPilot” is a registered trademark of Bose Corporation.
End Of Sie

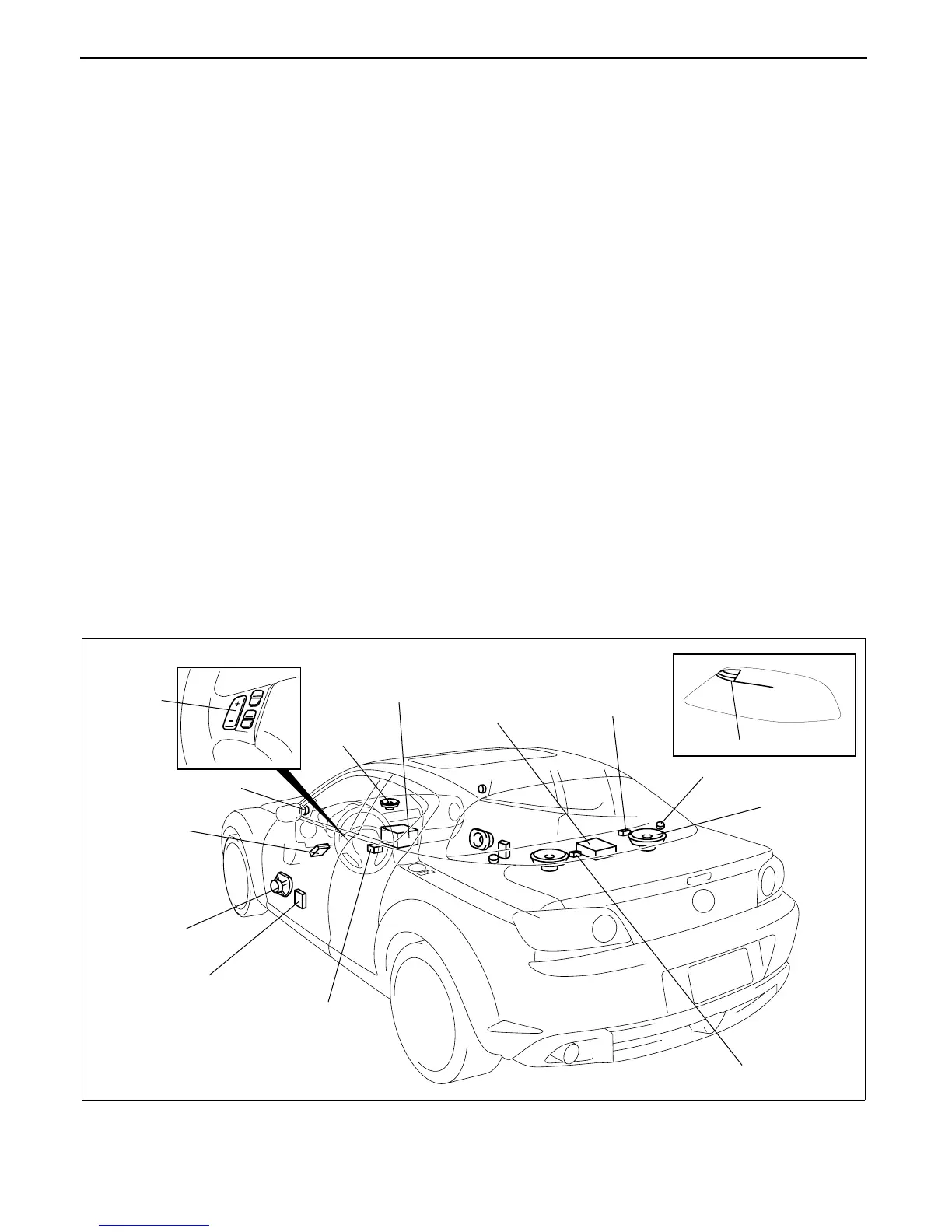

AUDIO SYSTEM STRUCTURAL VIEW
CHU092001066S02
End Of Sie
AUDIO
CONTROL
SWITCH
CENTER
SPEAKER
CENTER PANEL
MODULE
NOISE FILTER
(REAR
DEFROSTER)
MAIN
AMPLIFIER
(BOSE)
REAR TWEETER
REAR
SPEAKER
CONDENSER
AUDIOPILOT
MICROPHONE
(BOSE)
FRONT DOOR
SPEAKER
AMPLIFIER
(BOSE)
FRONT DOOR
SPEAKER
NOISE FILTER
(STOP LIGHT)
FRONT TWEETER
GLASS ANTENNA
CHU0920N001
