LUBRICATION
01–11–5
01–11

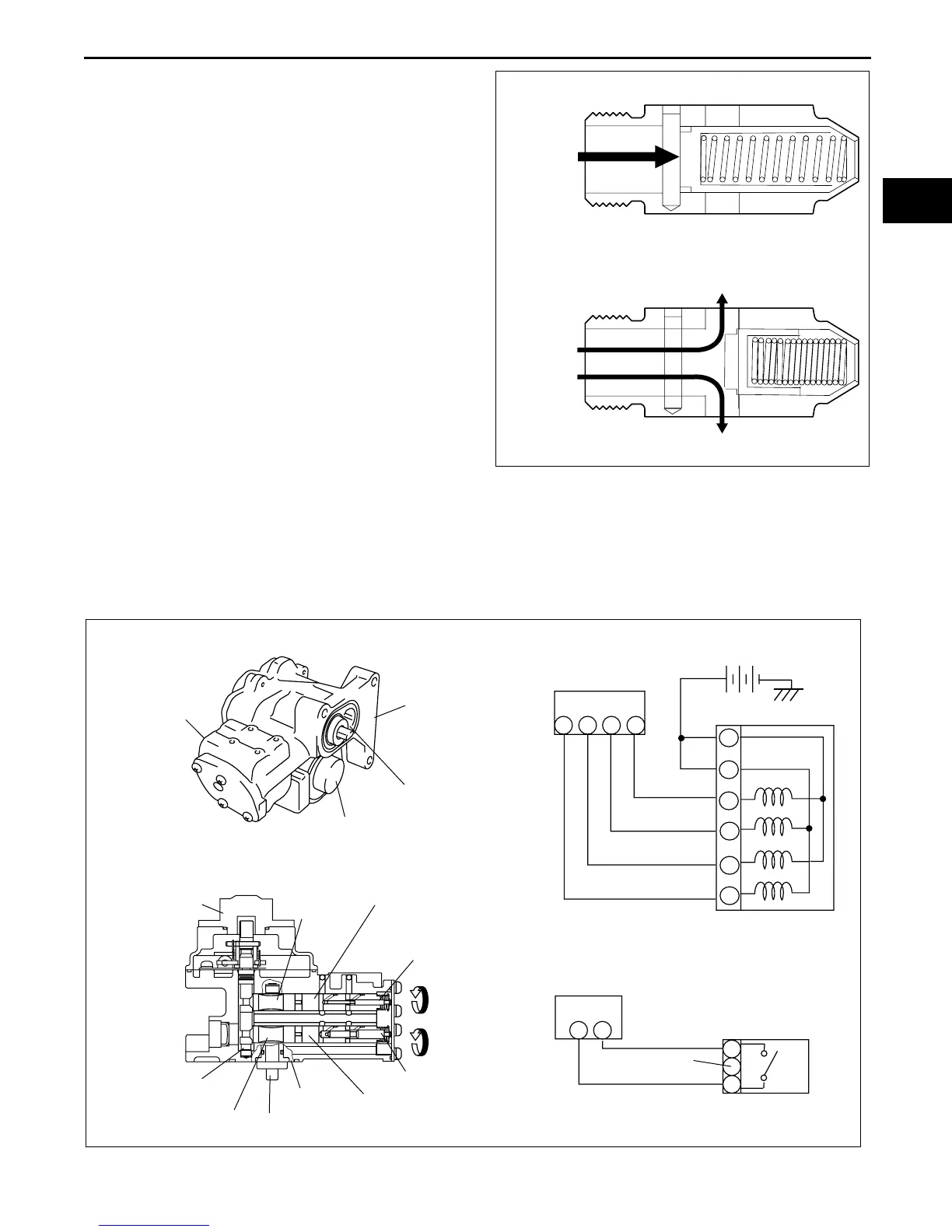

• An oil pressure regulator has been adopted on
the rear side housing to release oil when the oil
pressure is 538—638 kPa {5.5—6.5 kgf/cm
2
,
78.0—92.5 psi} or more.
End Of Sie
METERING OIL PUMP CONSTRUCTION/OPERATION
CHU011101008S07
Construction
• An electric metering oil pump has been adopted to reduce oil consumption by controlling the amount of oil
discharged.
• The electric metering oil pump is controlled by the PCM.
• The PCM sends a pulse signal controlling the amount of oil discharged to the metering oil pump according to
the engine rotation, engine coolant temperature, and the amount of intake air.
BELOW
SPECIFIED
VALUE
ABOVE
SPECIFIED
VALUE
CHU0111S015
STEPPING MOTOR
POSITIONING SWITCH
STEPPING MOTOR
DIFFERENTIAL
PLUNGER
DIFFERENTIAL PLUNGER
SUB-PLUNGER
SUB-PLUNGER
OIL OUTLET
OIL
INLET
PLUNGER
PLUNGER
CONTROL PIN
POSITIONING
SWITCH
METERING OIL PUMP
SECTIONAL VIEW
OIL INLET
ENGINE ATTACHMENT
SIDE
DRIVING WORM
UNUSED
TERMINAL
C
2Y
2V
2AB
2W
D
E
F
A
B
PCM
COIL NO.1
COIL NO.2
COIL NO.3
COIL NO.4
1U 2N
PCM
A
C
CHU0111S013
