SUPER-LSD OPERATION
CHU031427100S05
Straight ahead driving

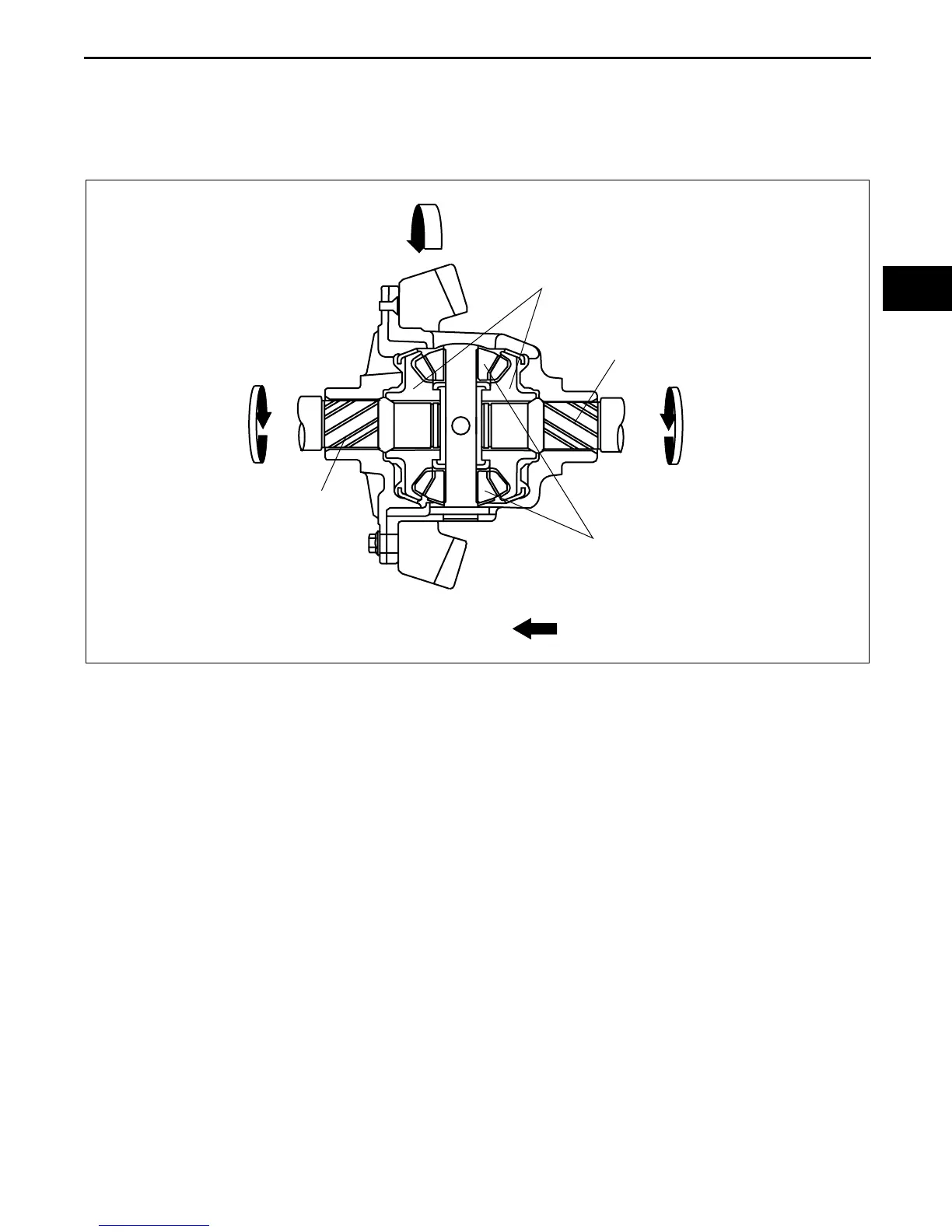

• When driving straight, the right and left side gears rotate at the same speed, and the pinion and side gears
rotate together with the differential gear case. Input force from the ring gear is transmitted to the pinion gears
via the gear case and to the drive shaft via the side gears. Due to this, a speed difference between right and left
in the differential does not occur.
:
SIDE GEAR
DRIVE SHAFT
PINION GEAR
ROTATION DIRECTION
DRIVE SHAFT
CHU0314S003
