09–20–6

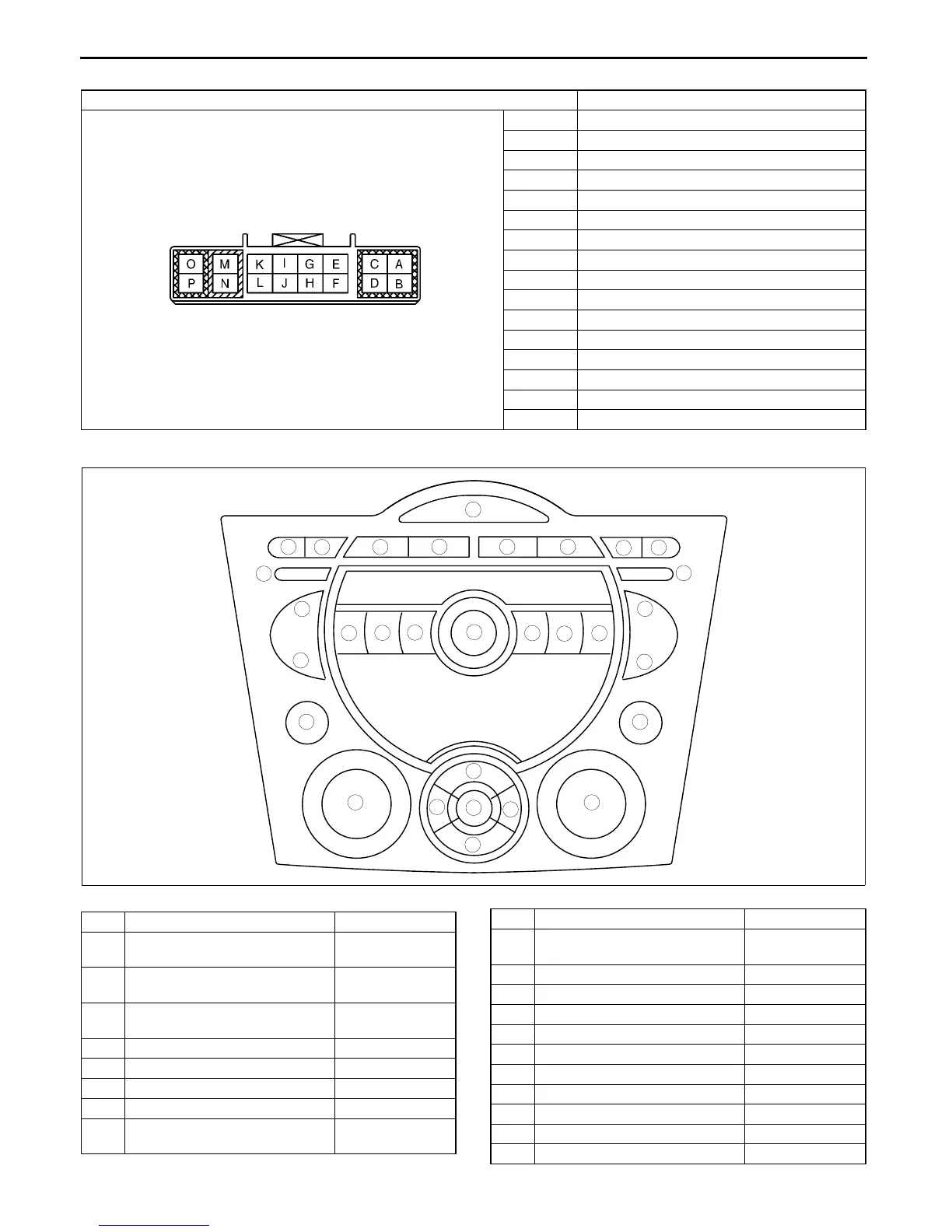

Information display harness
Switch/Button Location
Terminal Signal
A LCD DRV (8 V)
B ACC (5 V)
C LCD CONT. RC
D LCD CONT. AC
E LCD CONT. CS
F LCD CONT. SCL
G LCD CONT. DATA
H —
I LCD CONT. INH
J Digital ground
KTNS (8V)
L Power ground
M —
N —
O —
P —
9
8
7
5
43
10
19
18
17
15
16
14
13
11
12
20
28
27
25 25
26
2423
21
22
6
1
2
25
25
BHJ0920N004
No. Switch/button Related system
1 Hazard warning switch Hazard warning
system
2 SET button Information
display
3 CLK button Information
display
4 FM1/2 button Audio system
5 AM button Audio system
6 CD button Audio system
7 TAPE/MD button Audio system
8
DISP button
Information
display
9
AMB button
Information
display
10 LOAD button Audio system
11 EJECT button Audio system
12 SEEK UP button Audio system
13 SEEK DOWN button Audio system
14 Preset button “1” Audio system
15 Preset button “2” Audio system
16 Preset button “3” Audio system
17 POWER/VOLUME button Audio system
18 Preset button “4” Audio system
19 Preset button “5” Audio system
No. Switch/button Related system
