INTAKE-AIR SYSTEM
01–13–11
01–13

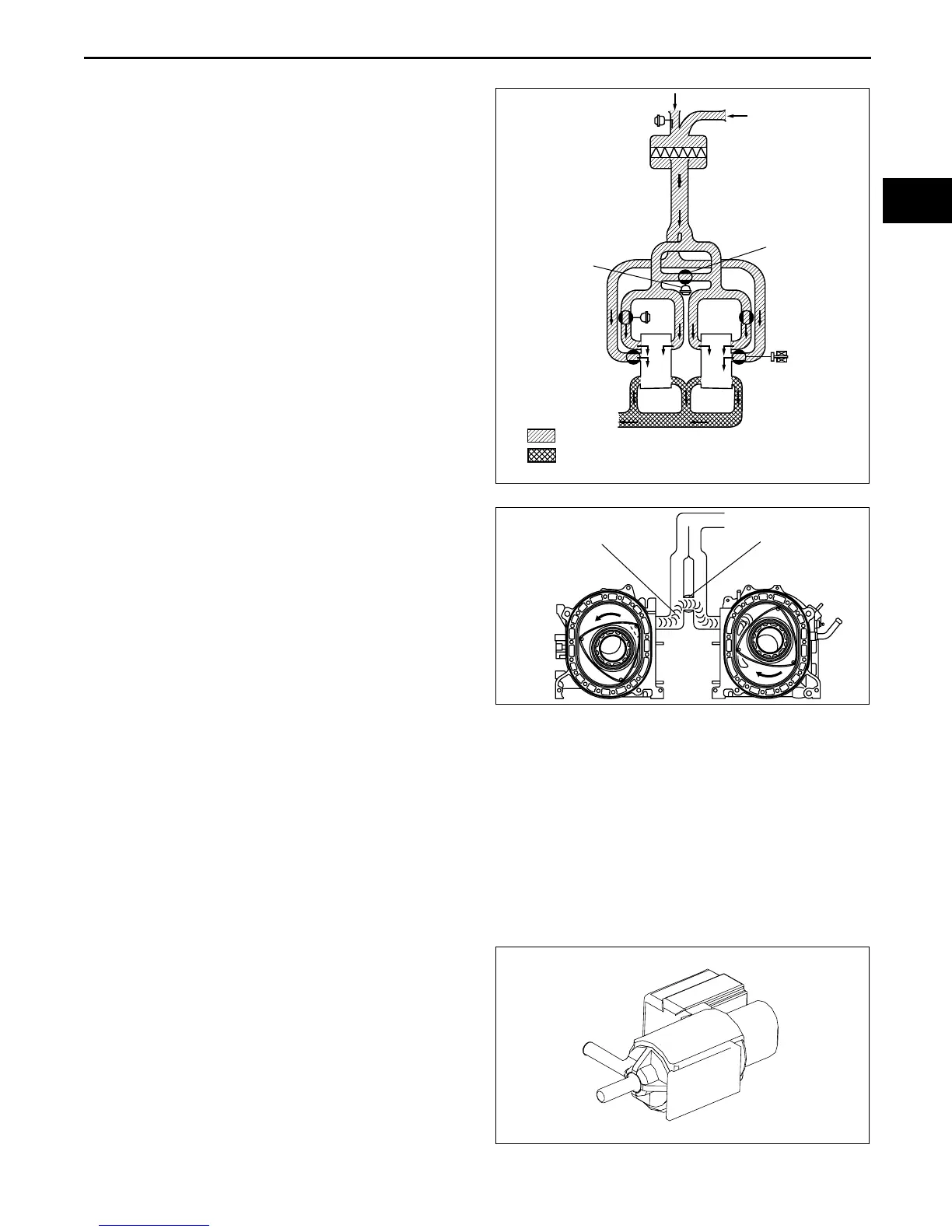

High-speed range
• When the engine speed reaches the high range,
the VDI valve opens, and the actual length of the
intake air in the pipe is shortened to efficiently
provide dynamic air charging effect.
• When the intake ports are shut abruptly, the
intake air does not stop due to the inertia effect
and it becomes compressed and highly
pressurized. This pressurized air becomes a
reflected high-pressure wave that pressurizes the
intake air in the rotor chambers. This is dynamic
air charging pressurization. The intake air amount
is increased by the dynamic air charging effect,
improving torque at the high-speed range.
End Of Sie
SECONDARY SHUTTER VALVE (SSV) SOLENOID VALVE FUNCTION
CHU011318740S01
• Switches pressure (intake manifold vacuum or BARO) applied to the SSV actuator according to a signal from
the PCM.
End Of Sie
SECONDARY SHUTTER VALVE (SSV) SOLENOID VALVE CONSTRUCTION/OPERATION
CHU011318740S02
• Composed of a solenoid coil, spring, plunger, and filter.
Energized
• When the solenoid coil is energized, the plunger is pulled back. Pulling the plunger back opens the
passage between ports A and B. Due to this, intake manifold vacuum is applied to the actuator.
De-energized
• Passage of port A is closed by the reaction force of the spring, and the passage between ports B and C is
opened. Due to this, BARO is applied to the actuator.
End Of Sie
: INTAKE AIR
: EXHAUST AIR
VDI VALVE
VDI ACTUATOR
(ILLUSTRATION SHOWS 13B-MSP (HIGH POWER))
CHU0113S016
HIGH-PRESSURE WAVE
VDI VALVE
CHU0113S015
A
B
C
CHU0113S017
