ENTERTAINMENT
09–20–7
09–20
End Of Sie

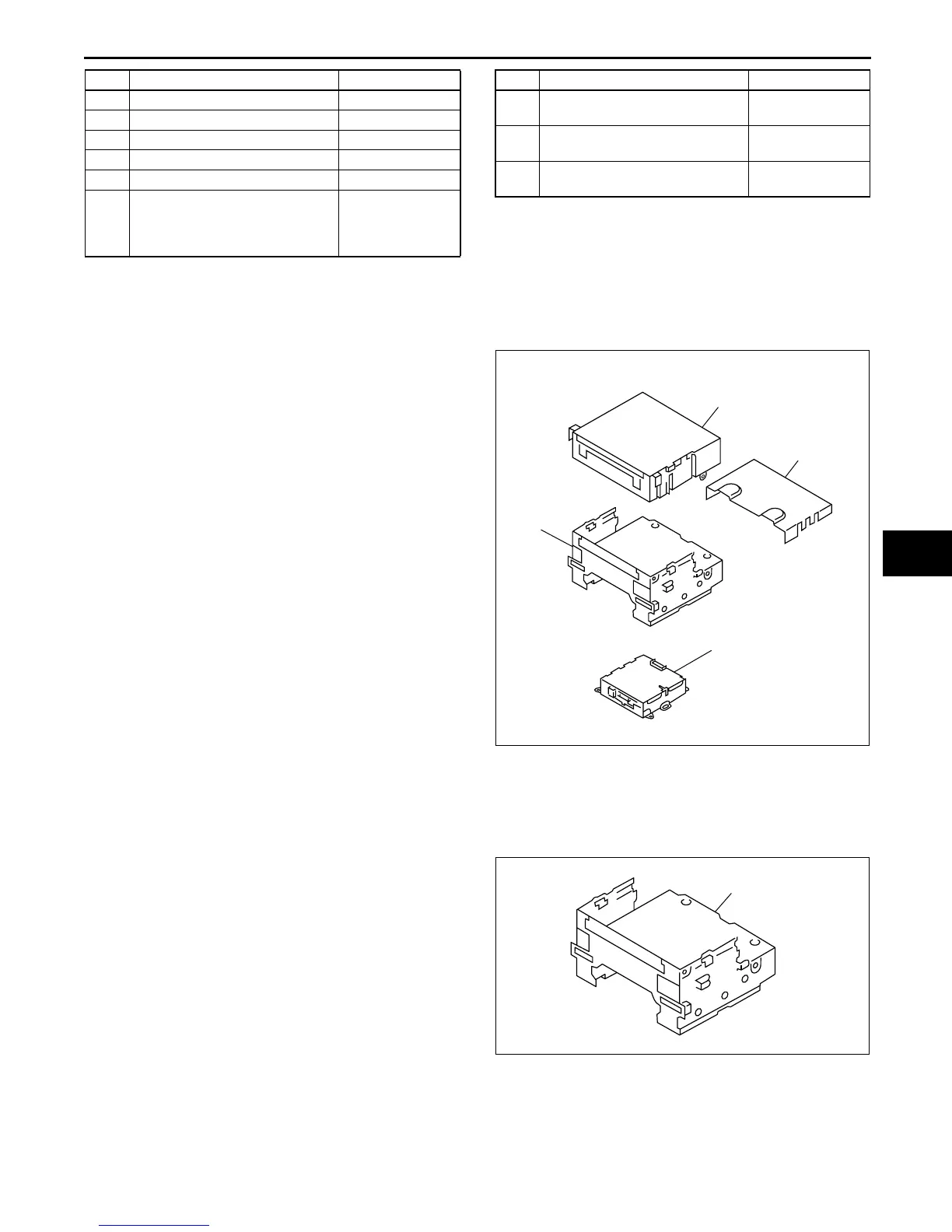

AUDIO UNIT CONSTRUCTION/OPERATION
CHU092066900S03
• The audio unit is composed of the base unit,
upper module, and lower module.
• Upper and lower module availability depends on
vehicle grade.
Terminal Layout and Signal
• (See 09–20–4 CENTER PANEL MODULE CONSTRUCTION.)
Base Unit
• The base unit controls the AM/FM tuner and
upper/lower modules.
• An auto level control (ALC) function that controls
speaker volume according to vehicle speed has
been adopted.
20 Preset button “6” Audio system
21 SCAN (upper) button Audio system
22 SCAN (lower) button Audio system
23 TUNE AUTO-M button Audio system
24 TEXT AUDIO CONT button Audio system
25 Climate control unit
(See 07–40–6 CLIMATE
CONTROL UNIT
CONSTRUCTION)
Air conditioner
system
No. Switch/button Related system
26 A/C switch Air conditioner
system
27 Rear window defroster switch Rear window
defroster system
28 REC/FRESH switch Air conditioner
system
No. Switch/button Related system
UPPER MODULE
(CD PLAYER OR CD CHANGER)
LOWER MODULE
(CASSETTE DECK OR
MD PLAYER)
BASE
UNIT
COVER
(WITHOUT
UPPER MODULE)
A6A8124T005
BASE UNIT
A6A8124T006
To Next Page
