MECHANICAL
01–10–13
01–10
SIDE SEAL CONSTRUCTION
CHU011011910S04
• The iron sintering system side seals maintain a gas seal while sweeping the side housing by the force of the
side seal springs.
• With the adoption of keystone-shaped (bulged shape) side seals, scraping and removal of carbon that collects
in the side seal grooves has been improved. At the same time, gas sealing performance on the friction surface
and seal performance have been strengthened.
End Of Sie

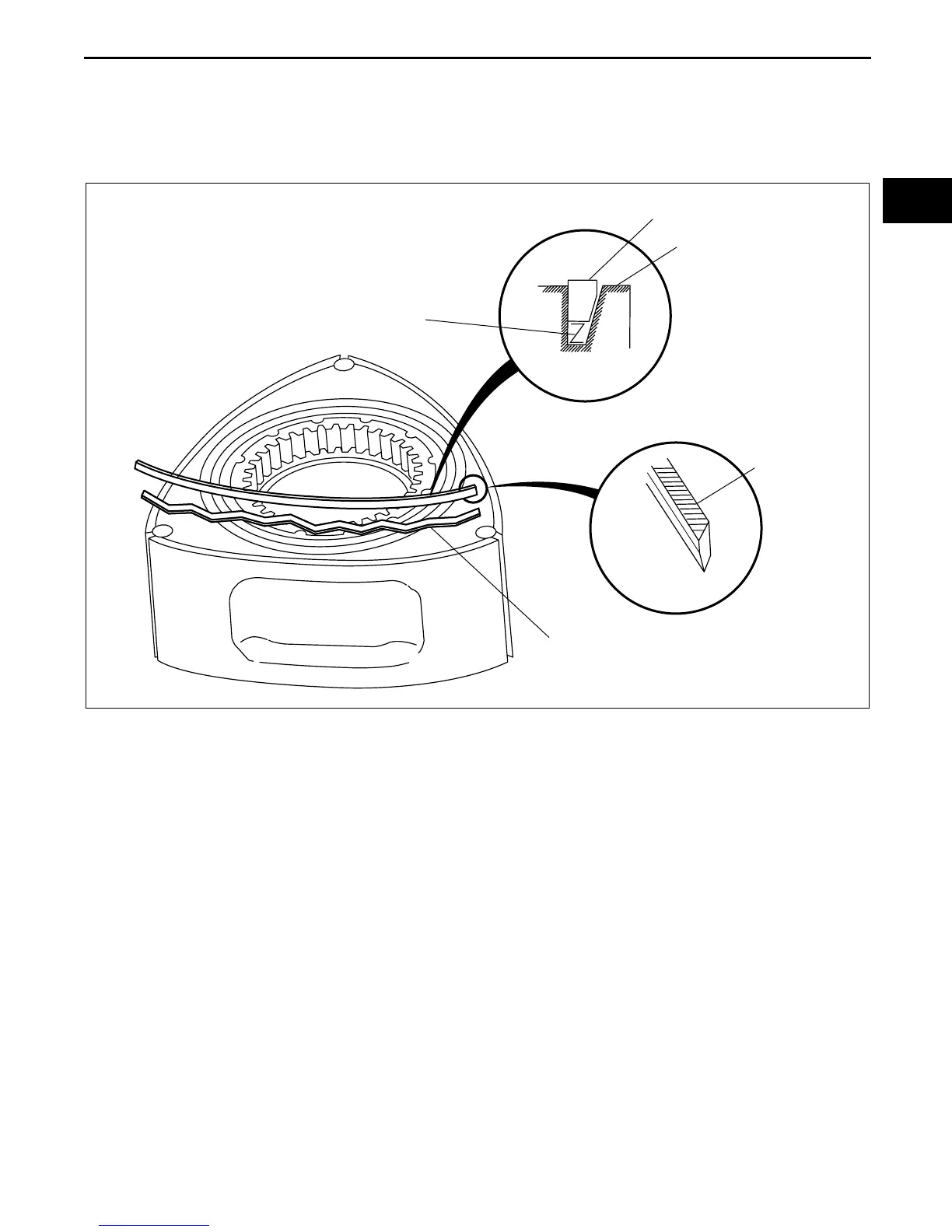

SIDE SEAL
ROTOR
SIDE SEAL
SIDE SEAL SPRING
SHAPE ON THE END OF THE SIDE SEAL
SIDE SEAL SPRING
CHJ0110S014
