ENTERTAINMENT
09–20–4
AUDIO SYSTEM SPECIFICATIONS
CHU092001066S04
Audio Unit
Speaker
End Of Sie
CENTER PANEL MODULE OUTLINE
CHU092066900S01
• The center panel module is composed of the installed audio unit with the audio switch, A/C switch, hazard
warning switch, and rear defroster switch built into the center panel.
End Of Sie
CENTER PANEL MODULE CONSTRUCTION
CHU092066900S02

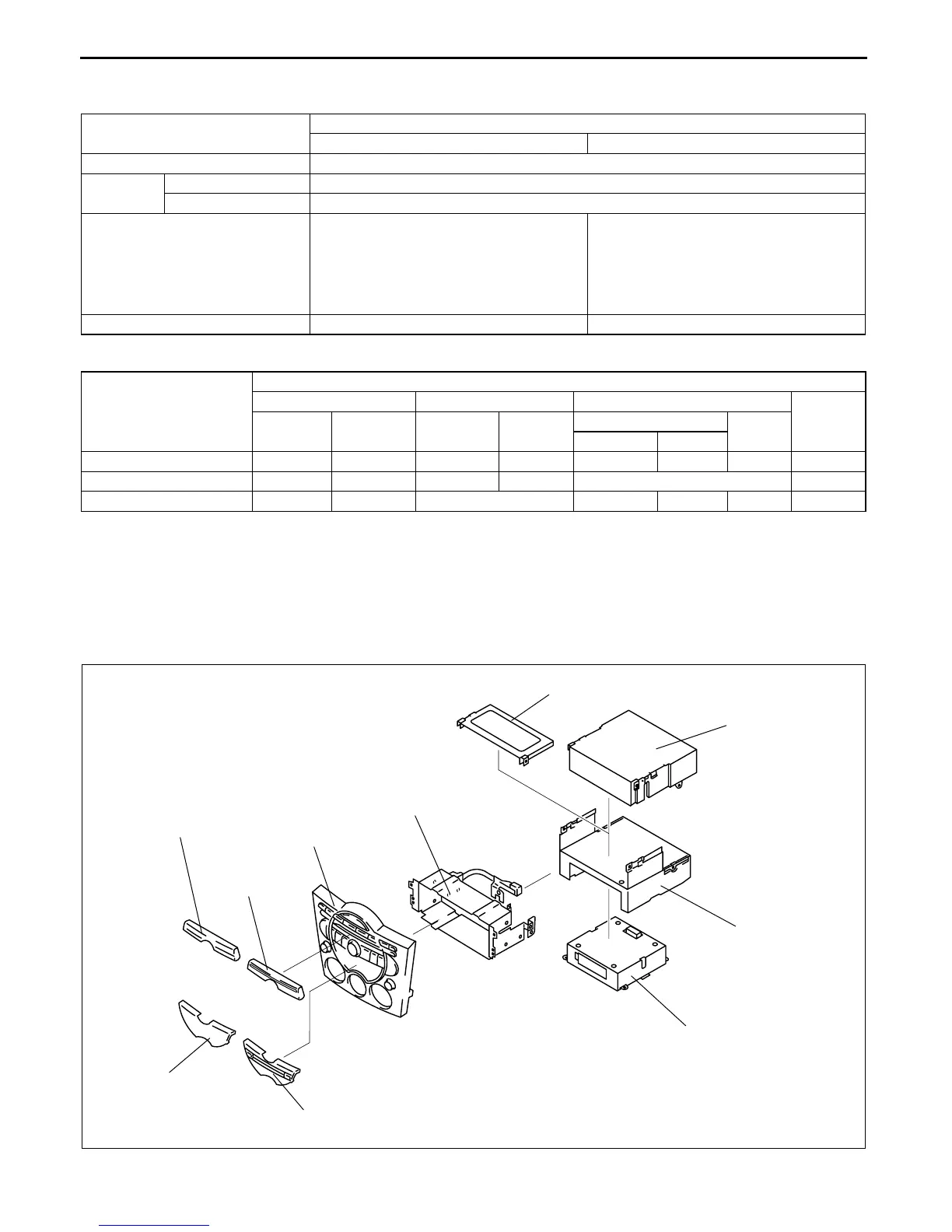

Structural View
Item
Specification
BOSE Standard
Rated voltage (V) 12
Frequency
band
AM (kHz) 530—1620
FM (MHz) 87.5—108.0
Audio amplifier maximum
output power
(W)
External type audio amplifier
• Main amplifier
— 25×3
— 12.75×2
• Front door speaker amplifier
— 100×1
25×4
Output impedance (ohm) 2 4
Item
Specification
Front door speaker Rear speaker Tweeter
Center
speaker
Standard BOSE Standard BOSE
Front
Rear
Standard BOSE
Maximum input (W) 25 100 25 37.5 25 12.5 12.5 37.5
Impedance (ohm) 4 0.5 4 2 4 2
Size (in) 5.5×7.5 9 6×912280 mm
COVER
(WITHOUT
UPEER MODULE)
COVER
(WITH UPPER
MODULE)
CENTER PANEL
LOWER
MODULE
BASE UNIT
UPPER MODULE
COVER (WITHOUT UPPER MODULE)
CIRCUIT BOARD
COVER
(WITH LOWER
MODULE)
COVER
(WITHOUT
LOWER MODULE)
CHU0920S003
