ANTENNA CONSTRUCTION
CHU092066939S01
Glass Antenna
• A glass antenna with high noise resistance has been adopted inside the rear window glass.
End Of Sie
AUDIO CONTROL SWITCH OUTLINE
CHU092000148S01
• A steering wheel remote control for the audio system, with simplified design for easy operation, has been
adopted.
End Of Sie
AUDIO CONTROL SWITCH CONSTRUCTION/OPERATION
CHU092000148S02
Construction
• The audio control switch is located on the steering
wheel.
Operation
End Of Sie
CAR-NAVIGATION SYSTEM OUTLINE
CHU092066000S01
• A 7 inch wide, pop-up LCD (
*
TFT) has been adopted to improve marketability.
• A hybrid in car-navigation system and map-matching function has been adopted to improve accuracy of
detection of the vehicle’s position.
• A remote control with an infrared transmitter has been adopted to improve operational ability.
• The languages and voices available for use with the car-navigation unit include English and French. However,
the language used in this manual is in English only.
*
TFT: Thin Film Transistor
End Of Sie

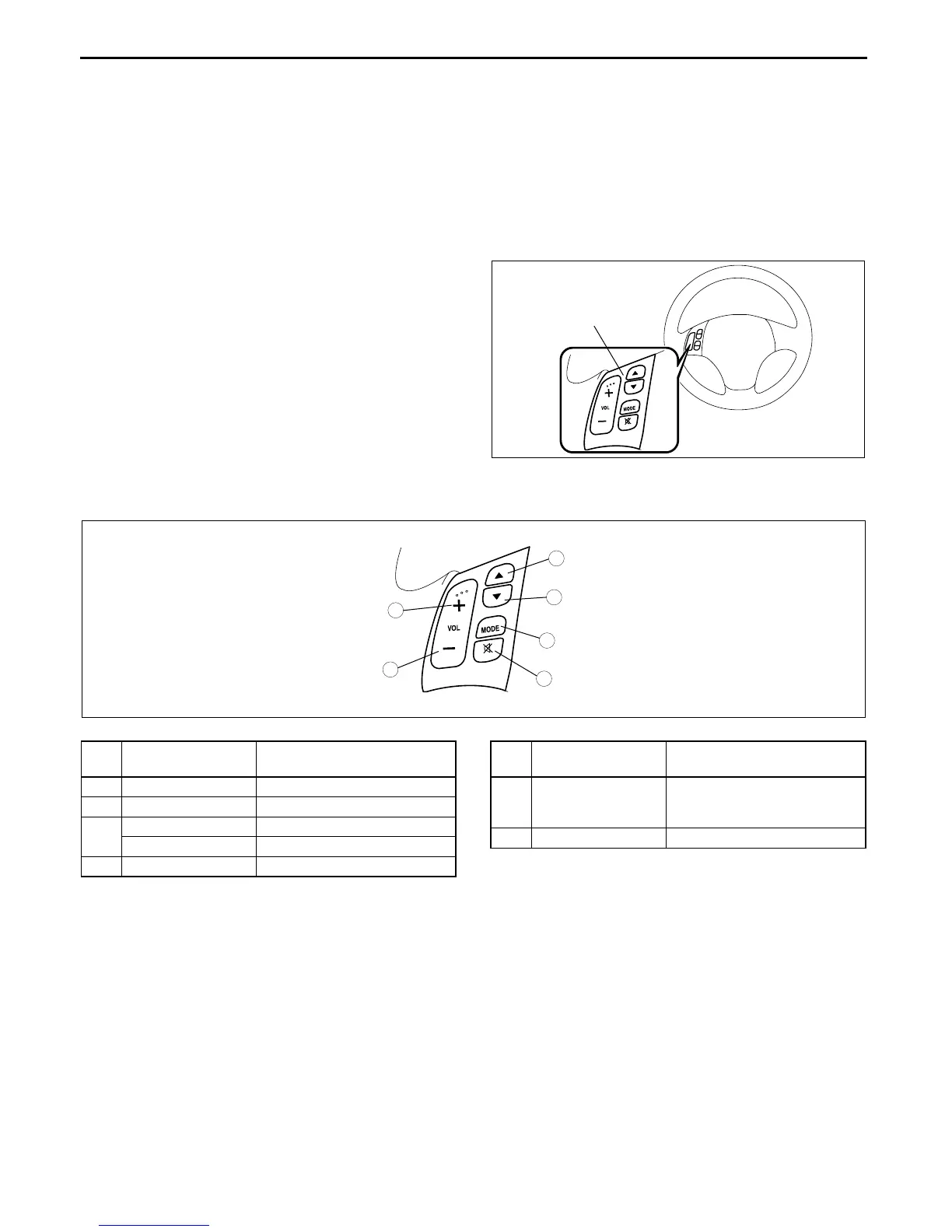

AUDIO CONTROL
SWITCH
CHU0920S006
5
4
3
6
1
2
CHU0920S007
No.
Button
(component)
Function
1 Volume button (+) Volume up
2 Volume button (-) Volume down
3 AUTO scan button Select the radio station
AUTO track button Track change
4 Preset button Select the preset button
5 Mode button Select the audio mode
(AM→FM1→FM2→Cassette
tape/MD→CD/CD changer)
6 Mute button Mute
No.
Button
(component)
Function
