BASIC SYSTEM
07–11–7
07–11
REFRIGERANT LINES CONSTRUCTION
CHU071161460S01
• Aluminum alloy has been adopted for the pipes of the refrigerant lines and rubber (flexible hoses) has been
adopted for the hoses.
• A high-pressure charging valve is installed on cooler pipe No.2, and a low-pressure charging valve is installed
on the cooler hose (LO).
End Of Sie

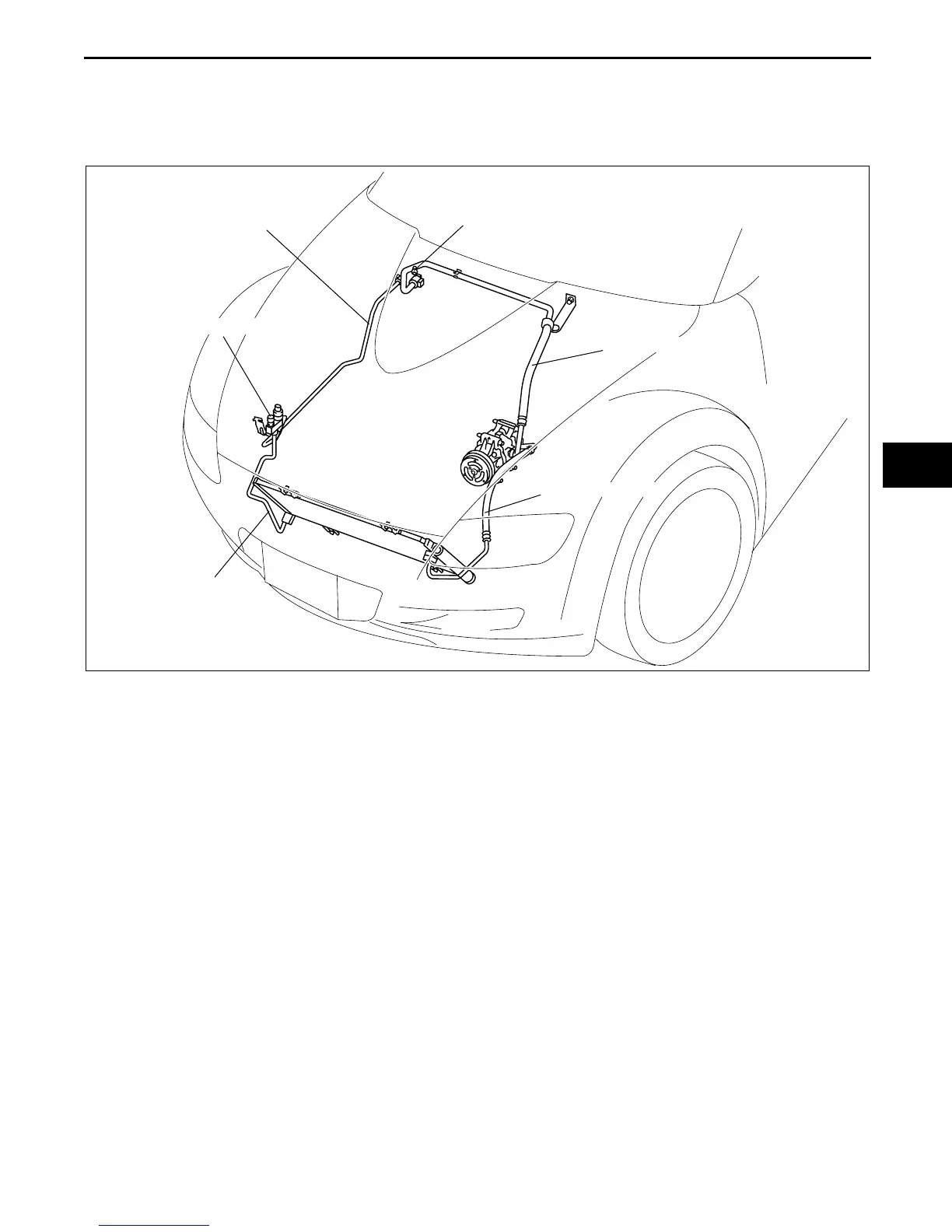

LOW-PRESSURE CHARGING VALVE
HIGH-PRESSURE CHARGING VALVE
COOLER PIPE No.1
COOLER PIPE No.2
COOLER HOSE (LO)
COOLER HOSE (HI)
CHU0711S013
