STATIONARY GEAR CONSTRUCTION
CHU011010908S06
• The special steel used for the stationary gear is processed with ion nitriding for improved strengthening against
fatigue on the tooth surfaces.
• The main bearing is pressed into the stationary gear. Rotation lock of this bearing is done with a screw for the
high power and a rotation lock tab for the standard power.
• A needle bearing and thrust plate have been assembled in the front stationary gear for regulation of the
eccentric shaft end play.
•
End Of Sie

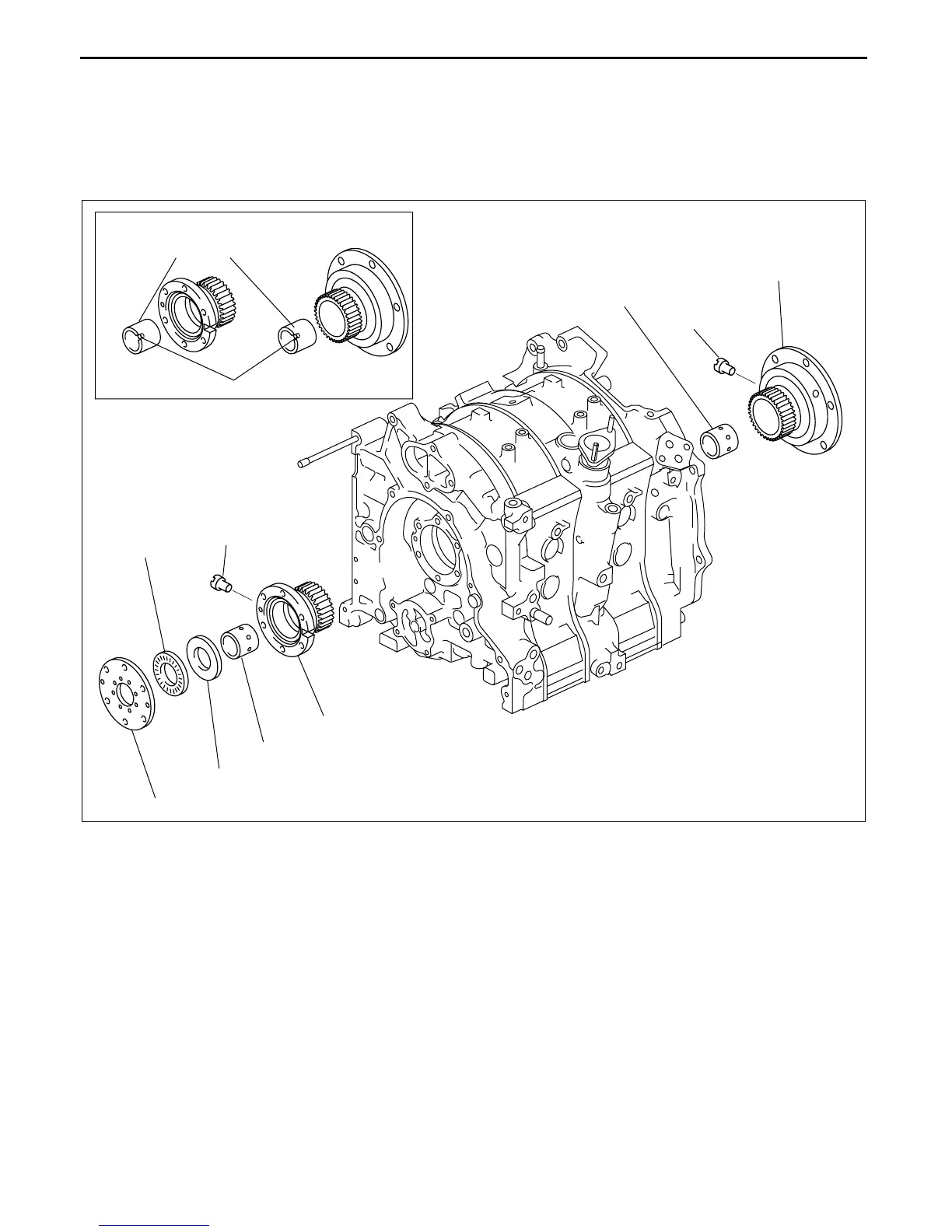

THRUST PLATE
NEEDLE BEARING
FRONT STATIONARY GEAR
REAR STATIONARY GEAR
MAIN BEARING
MAIN BEARING
SCREW
(HIGH POWER)
MAIN BEARING
STATIONARY GEAR (STANDARD POWER)
PLATE
SCREW
(HIGH POWER)
ROTATION LOCK TAB
FRONT
REAR
CHJ0110S008
