MECHANICAL
01–10–7
01–10

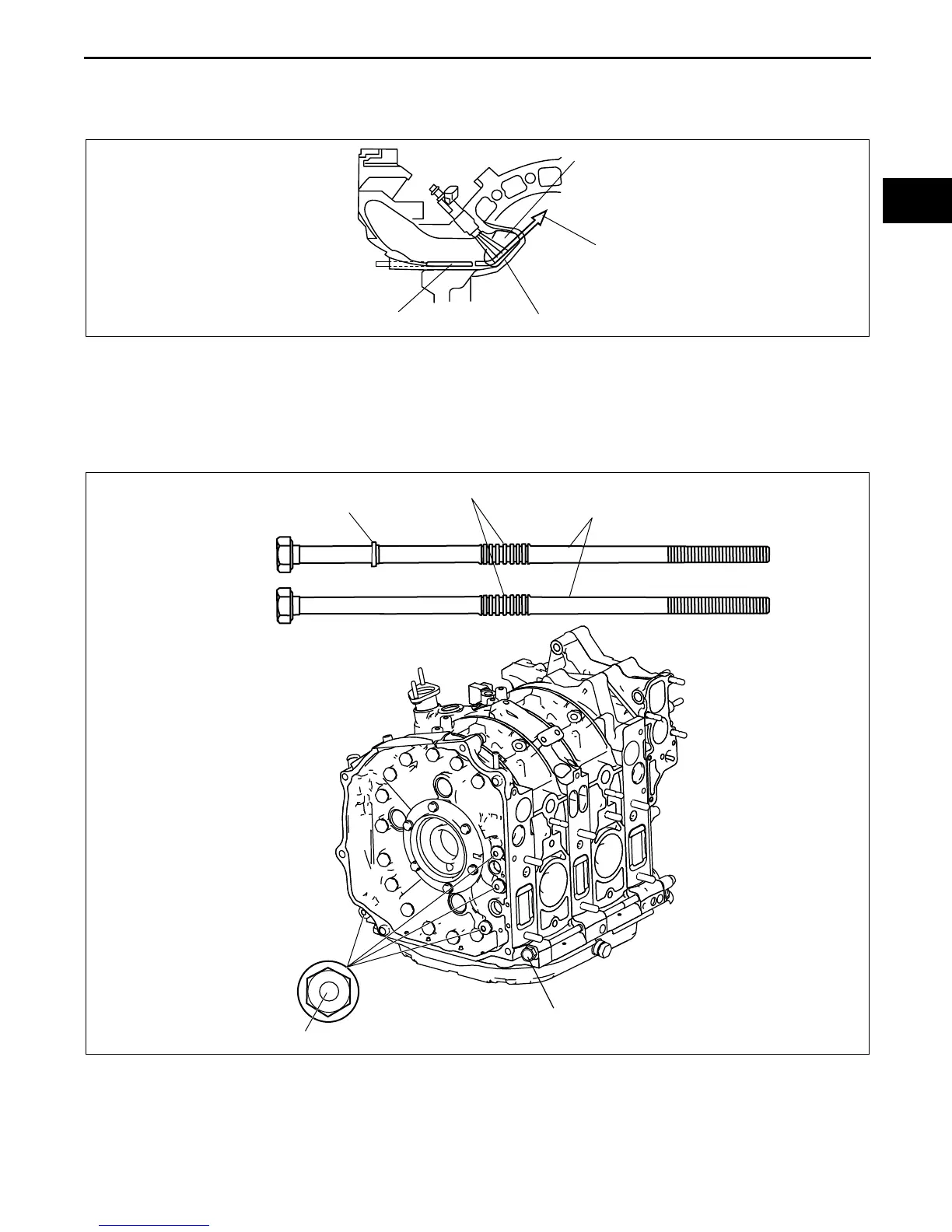

• The anti-wet port with a projection is located on the bottom edge of the primary port. With the anti-wet port, jet
air from the jet air fuel mixing nozzle, located at the primary port outlet of the intake manifold, flows upward, and
atomization is accelerated under low load when air intake velocity is slow. At the same time, air current is
formed so that the air-fuel mixture flows to the spark plugs. As a result, stable combustion is obtained.
End Of Sie
TENSION BOLT CONSTRUCTION
CHU011010908S05
• The tension bolts, pointed from the rear to the front housing, are tightened to fix the housings.
• Corrugation at the center of the tension bolts prevents resonance.
• There are two types of tension bolt lengths, with the longer bolts having a hole in the bolt head for
differentiating between the two types of lengths.
End Of Sie
ANTI-WET PORT
JET AIR FUEL MIXING NOZZLE
PRIMARY PORT
JET AIR
CHJ0110S022
IDENTIFICATION HOLE
SEAL WASHER
CORRUGATION
No.18 BOLT
TENSION BOLT
No.18 BOLT
OTHER BOLT
TYPE
CHJ0110S007
