DYNAMIC STABILITY CONTROL
04–15–5
04–15

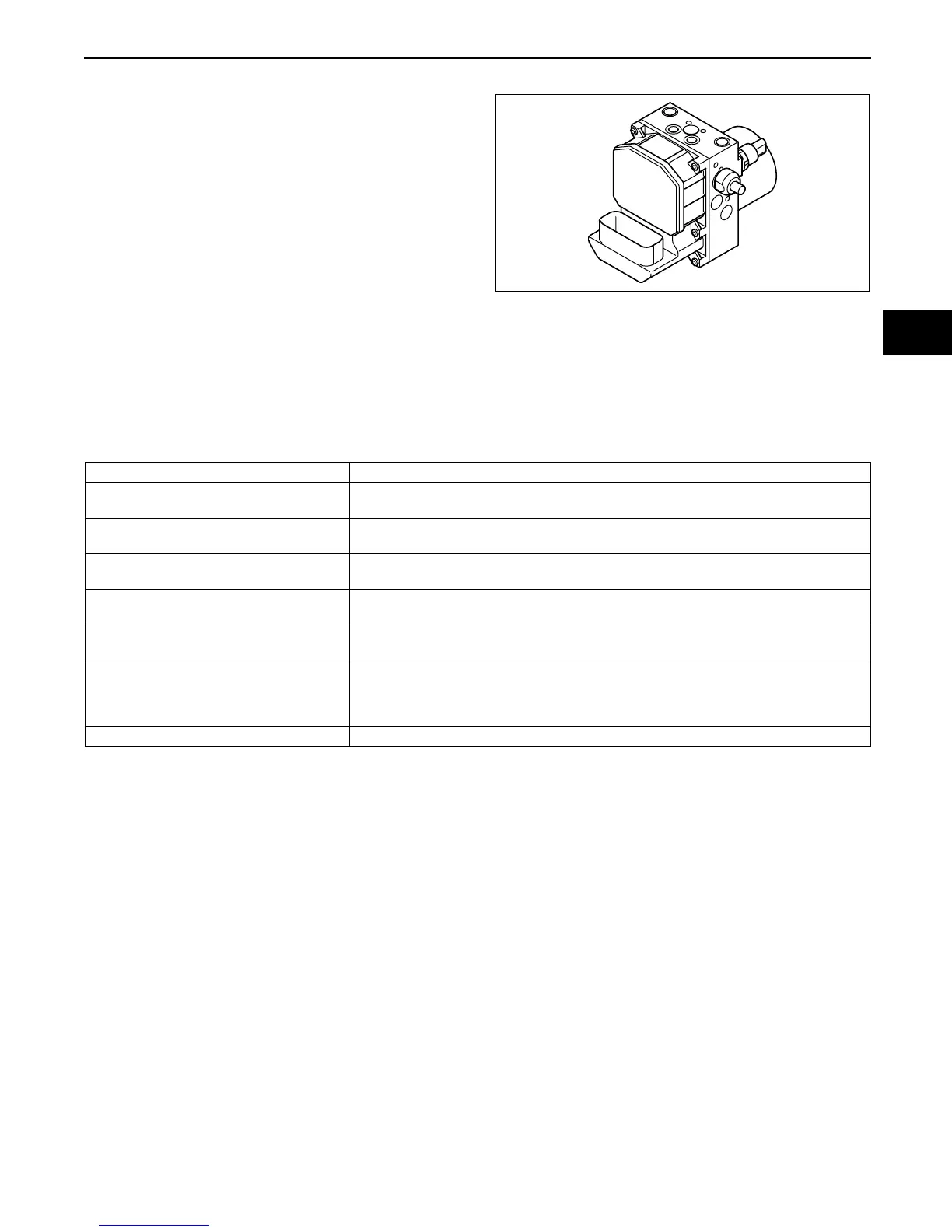

DSC HU/CM CONSTRUCTION
CHU041543750S01
• A high reliability, reduced size and weight DSC
HU/CM, integrating both the DSC HU and the
DSC CM, has been adopted.
End Of Sie
DSC HU PART FUNCTION
CHU041543750S02
• According to DSC CM signals, the DSC HU controls (on/off) each solenoid valve and the pump motor, adjusts
fluid pressure in each caliper piston, and actuates each function (ABS, EBD (Electronic Brakeforce
Distribution), TCS and DSC) of the DSC system.
End Of Sie
DSC HU PART CONSTRUCTION/OPERATION
CHU041543750S03
Construction
Function Of Main Component Parts
BHJ0415N003
Part name Function
Inlet solenoid valve
• Adjusts the fluid pressure in each brake system according to DSC HU/CM
signals.
Outlet solenoid valve
• Adjusts the fluid pressure in each brake system according to DSC HU/CM
signals.
Stability control solenoid valve
• Switches the brake hydraulic circuits during and according to normal braking,
ABS and EBD control, TCS control and DSC control.
Traction switch solenoid valve
• Switches the brake hydraulic circuits during and according to normal braking,
ABS and EBD control, TCS control and DSC control.
Reserve
• Temporarily stores brake fluid from the caliper piston to ensure smooth
pressure reduction during ABS and EBD control, TCS control and DSC control.
Pump
• Returns the brake fluid stored in the reservoir to the master cylinder during ABS
and DSC control.
• Increases brake fluid pressure and sends brake fluid to each caliper piston
during TCS control and DSC control.
Pump motor • Operates the pump according to DSC HU/CM signals.
