INTAKE-AIR SYSTEM
01–13–8

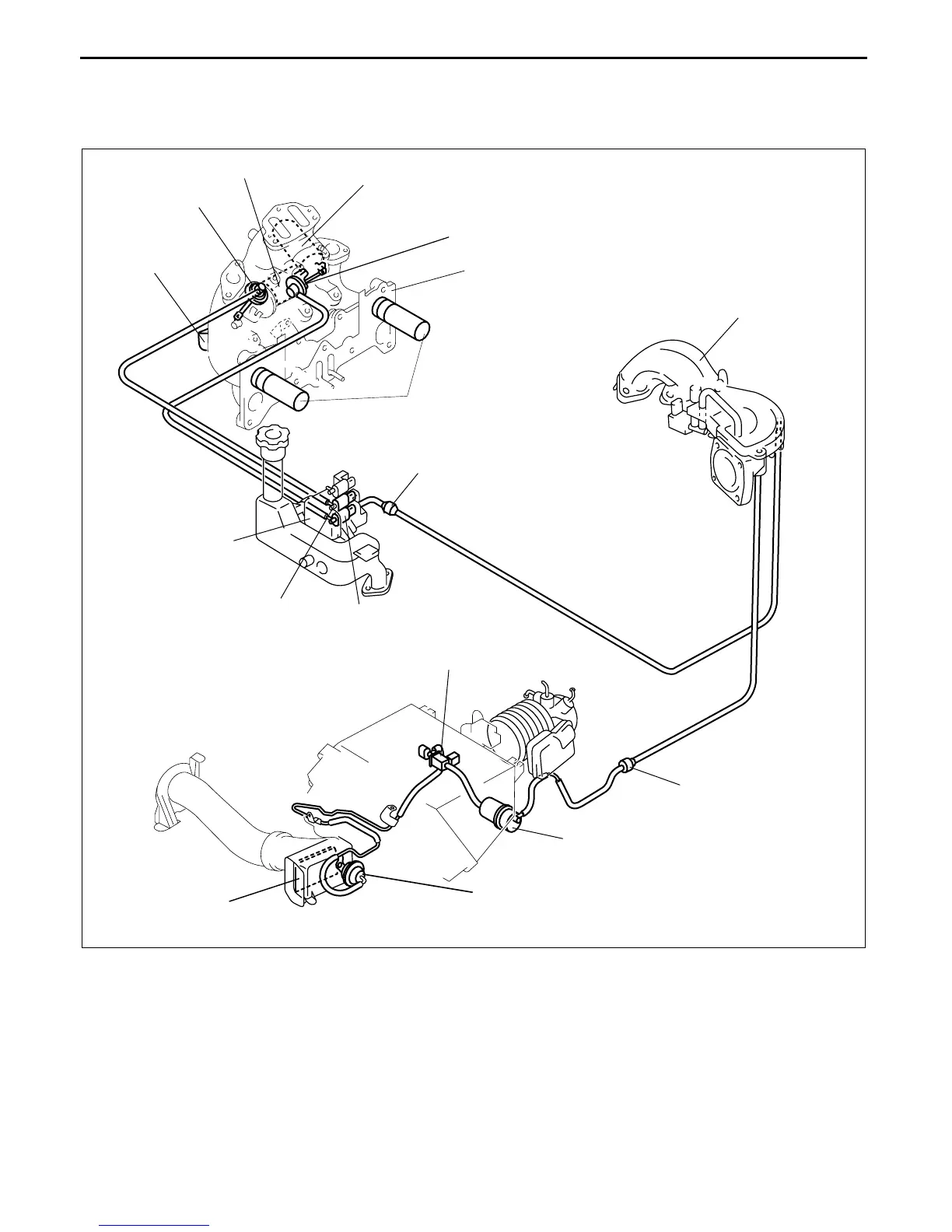

SEQUENTIAL DYNAMIC AIR INTAKE SYSTEM (S-DAIS) STRUCTURE
CHU011300113S06
• The S-DAIS is composed of the SSV, VDI valve, and VFAD valve (13B-MSP (High Power)) which are opened
and closed by intake manifold vacuum or BARO, and the APV (13B-MSP (High Power)) which is opened and
closed by motor drive.
End Of Sie
VDI ACTUATOR
SSV ACTUATOR
SSV SOLENOID VALVE
VDI SOLENOID VALVE
VFAD SOLENOID VALVE
VFAD ACTUATOR
CHECK VALVE
CHECK VALVE
VACUUM CHAMBER
VACUUM CHAMBER
EXTENSION MANIFOLD
INTAKE MANIFOLD
APV MOTOR
(13B-MSP (HIGH POWER))
(13B-MSP (HIGH POWER))
(13B-MSP (HIGH POWER))
(13B-MSP (HIGH POWER))
(13B-MSP
(HIGH POWER))
(ILLUSTRATION SHOWS 13B-MSP (HIGH POWER))
VFAD VALVE
(13B-MSP (HIGH POWER))
APV
VDI VALVE
SSV
(13B-MSP (HIGH POWER))
CHU0113S010
