COOLING SYSTEM
01–12–5
01–12
WATER PUMP CONSTRUCTION/OPERATION
CHU011201008S07
Construction
• The water pump is composed of a steel water pump pulley, a water pump body made of aluminum alloy, and
the gasket. The spiral casing is built into the front cover for weight reduction.
Operation
• The water pump is driven by the drive pulley.
End Of Sie
COOLING FAN, COOLING FAN MOTOR, RADIATOR COWLING CONSTRUCTION/OPERATION
CHU011201008S08
Construction
• Plastic cooling fans and radiator cowling have
been adopted for weight reduction.
• Both cooling fans and cooling fan motors are
attached to the radiator cowling.
• An electric motor type cooling fans operated by a
fan control signal from the PCM has been
adopted.
Operation
• Cooling fans No.1 and No.2 operate simultaneously according to the engine coolant temperature and whether
the A/C is on or off. Two- stage control has been adopted to the cooling fan with high and low speed rotation
allowing noise reduction and power savings. (See 01–40–37 ELECTRICAL FAN CONTROL OPERATION.)
End Of Sie

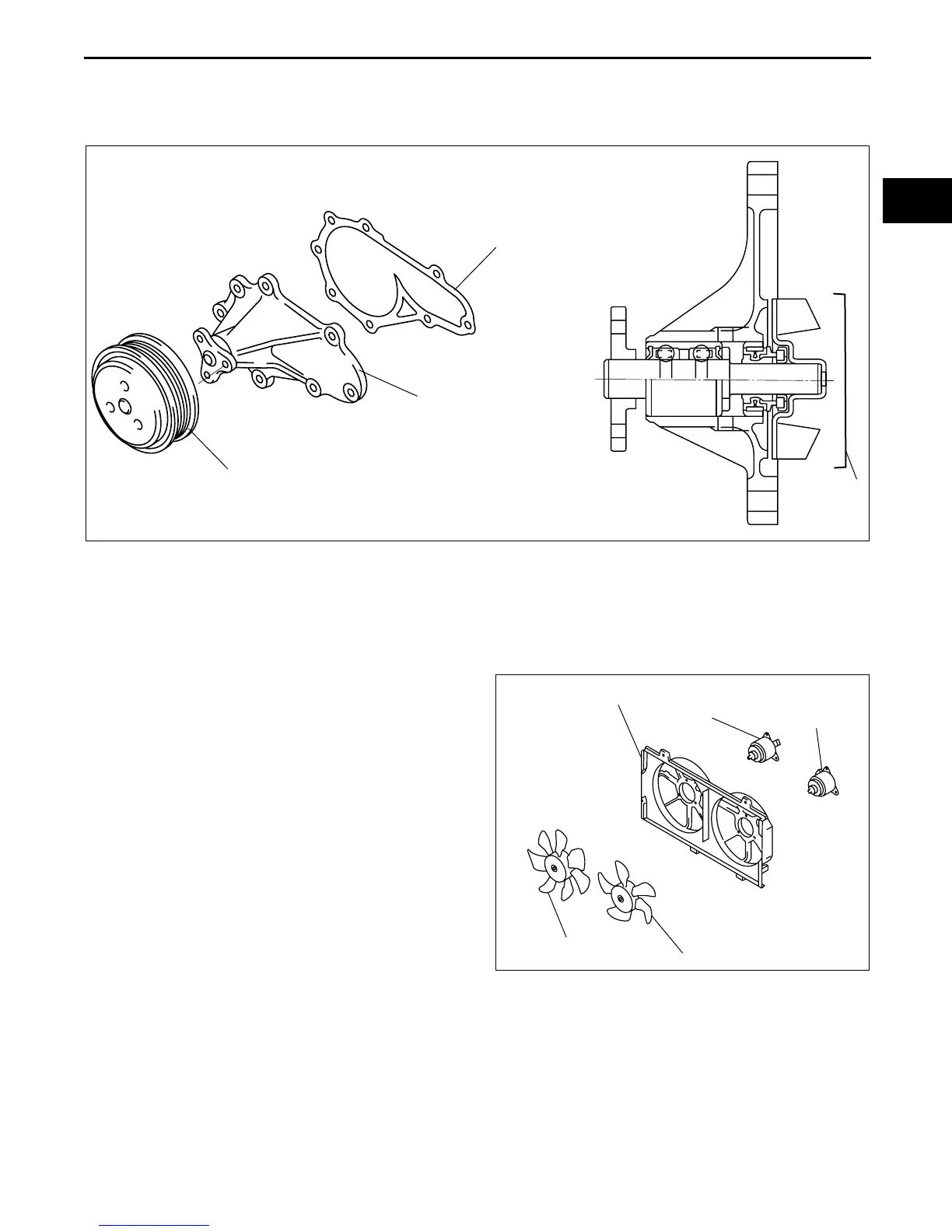

SPIRAL
CASING
WATER PUMP BODY
GASKET
WATER PUMP PULLEY
SECTIONAL VIEW
CHU0112S004
RADIATOR COWLING
COOLING FAN NO.2
COOLING FAN NO.1
COOLING FAN
MOTOR NO.1
COOLING FAN
MOTOR NO.2
BHJ0112N006
