INTAKE-AIR SYSTEM
01–13–14

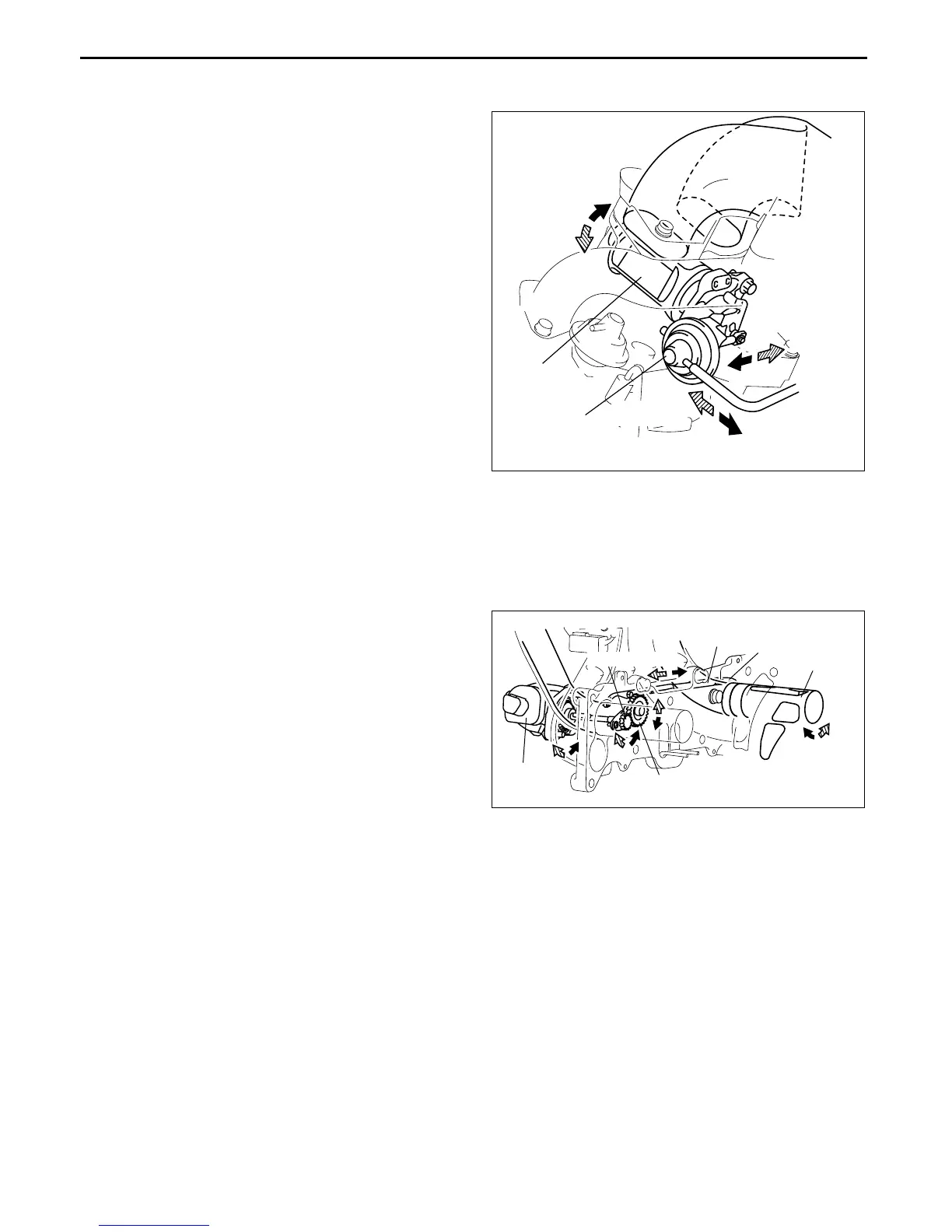

VARIABLE DYNAMIC EFFECT INTAKE-AIR (VDI) ACTUATOR CONSTRUCTION/OPERATION
CHU011320130S06
• A diaphragm design has been adopted.
• Normally, the rod is pushed by the force of the
spring, closing the VDI valve. When intake
manifold vacuum is applied to the diaphragm
chamber, the rod is pulled, opening the VDI valve.
End Of Sie
AUXILIARY PORT VALVE (APV) MOTOR FUNCTION (13B-MSP (HIGH POWER))
CHU011320130S07
• Drives the APV motor to open or close the APV according to a signal from the PCM.
End Of Sie
AUXILIARY PORT VALVE (APV) MOTOR CONSTRUCTION/OPERATION (13B-MSP (HIGH POWER))
CHU011320130S08
• The position sensor is built into the APV motor.
• The motor is driven according to an operation signal from the PCM.
• The motor driving force is transmitted to the drive
gear, counter gear, shaft, and arm, thereby
opening or closing the APV.
End Of Sie
CHECK VALVE FUNCTION
CHU011342910S01
• A one-way check valve has been adopted, allowing intake manifold vacuum to be applied to the vacuum
chamber.
End Of Sie
OPEN
CLOSE
PUSH
BAROMETRIC
PRESSURE
VACUUM
PULL
VDI ACTUATOR
VDI VALVE
(ILLUSTRATION SHOWS 13B-MSP (HIGH POWER))
CHU0113S021
APV
OPEN
CLOSE
DRIVE GEAR
COUNTER GEAR
SHAFT
ARM
APV MOTOR
CHU0113S022
