DIFFERENTIAL
03–14–2
SUPER-LSD OUTLINE
CHU031427100S03
• The super-LSD is a torque-sensing type that provides improved driving stability due to the following
characteristics:
— Low torque bias ratio provides improved controllability (torque bias ratio: 2.0)
— Creation of initial torque provides improved starting from a standstill and acceleration/deceleration
response, and driving straight-ahead (initial torque: 49 N·m {5.0 kgf·m, 36 ft·lbf})
— Simplified construction provides weight reduction
• The gear case component of the super-LSD cannot be disassembled.
End Of Sie

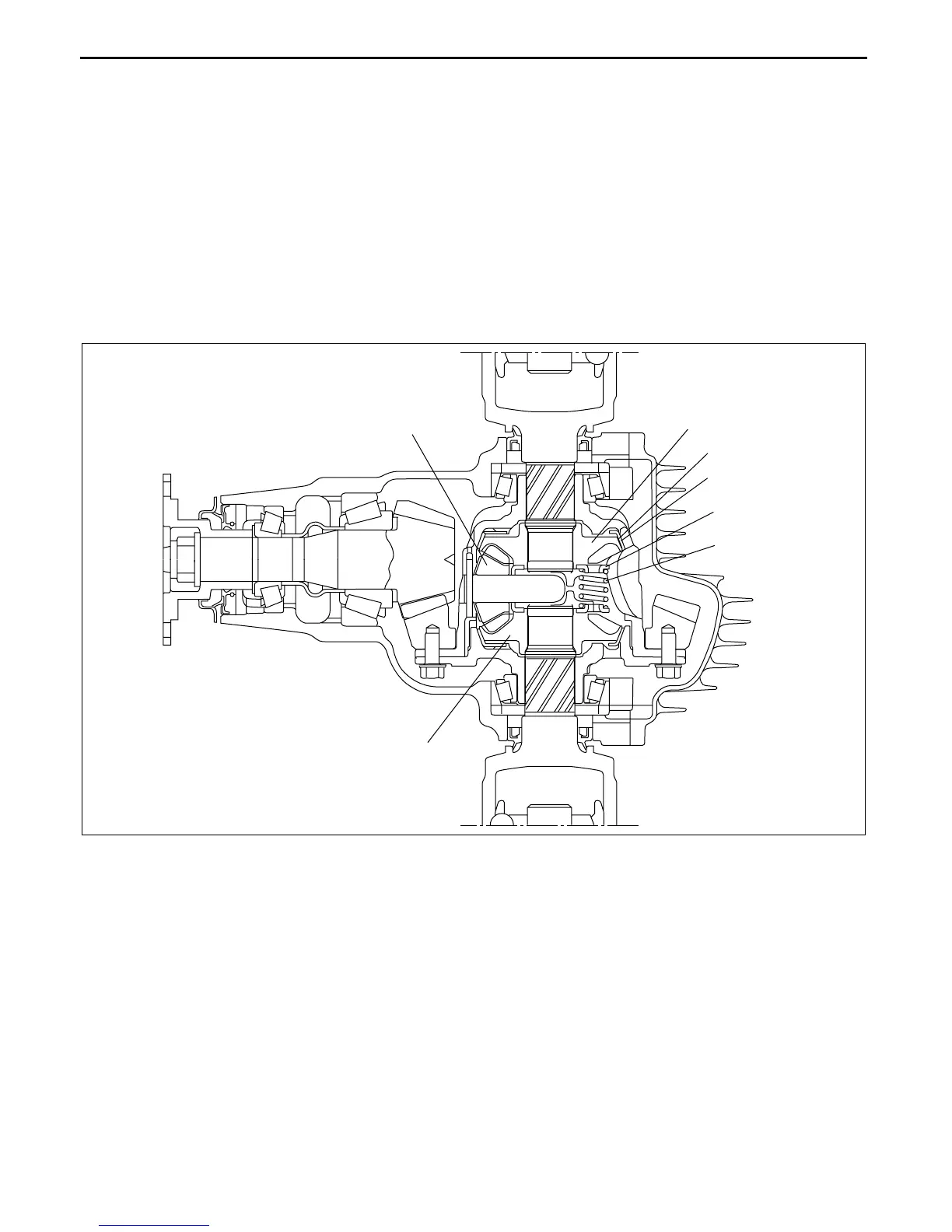

SUPER-LSD CONSTRUCTION
CHU031427100S04
• Inside the super-LSD, taper rings that are fixed to the differential gear case have been placed between the
differential gear case and the side gears. Additionally, a cone is provided around the outer surface of the side
gear.
• Springs and retainers are positioned between the right and left side gears to provide initial torque to the taper
rings.
End Of Sie
PINION GEAR
SIDE GEAR
SPRING
RETAINER
TAPER RING
SIDE GEAR
CONE
CHU0314S002
