MANUAL TRANSMISSION [Y16M-D]
05–11–10

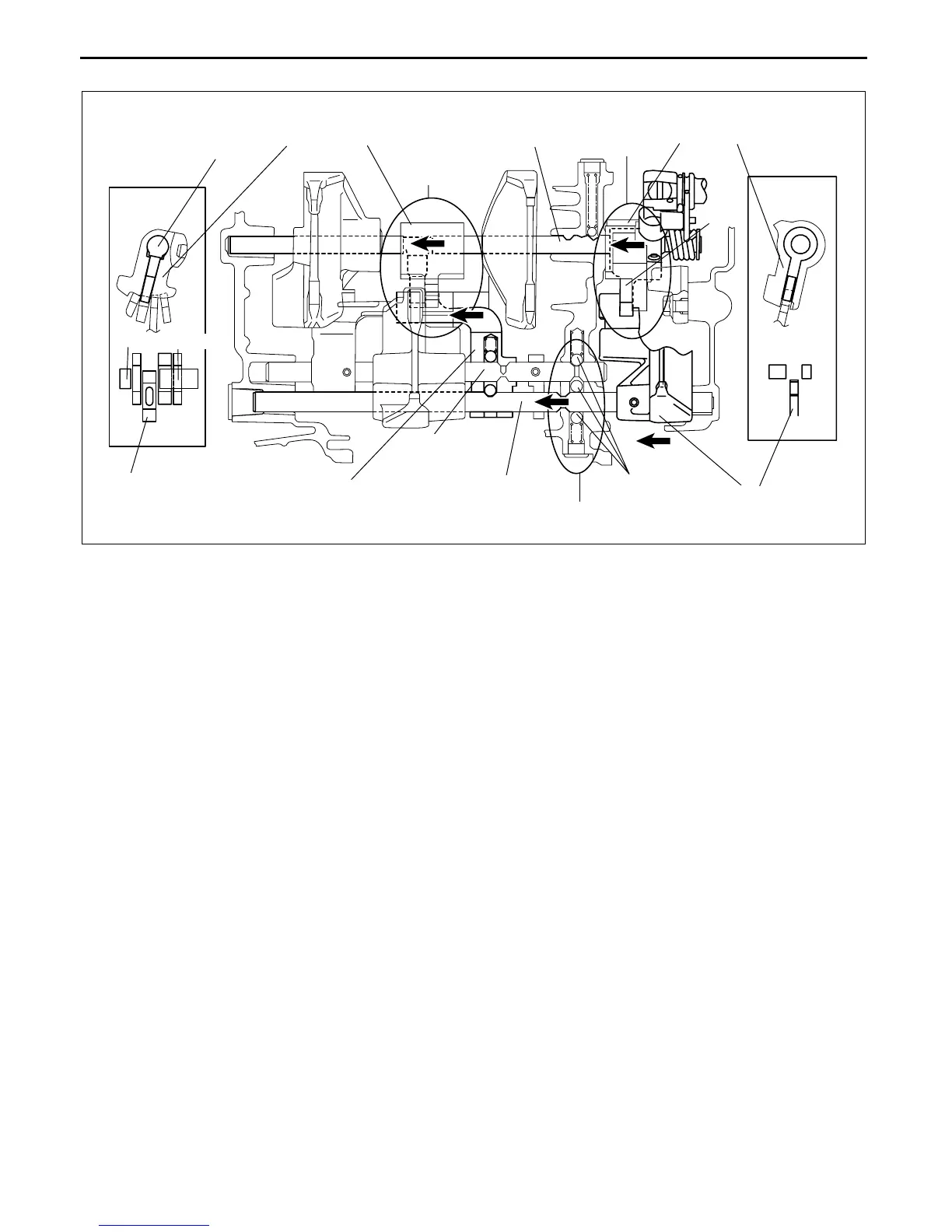

In 6th Gear Position
• When the shift lever is shifted into sixth gear, the main shift fork shaft and the lever in section C move leftward
(see figure), which moves the sixth shift fork and shifts the gear into sixth gear. At the same time, the interlock
block in section A fixes the shift fork in neutral position except for the fifth shift head. Also, shift fork shaft No.3,
which is moved leftward by the sixth shift fork, presses onto the ball which is out of the ridge to fix shift fork shaft
No.2, thereby preventing double engagement during sixth gear shifting. Additionally, during sixth gear shifting,
the main shift fork shaft also moves the fifth shift head, but as shift fork shaft No.2 is fixed by the ball, the fifth
shift head moves leftward on the top of the shaft by itself and is not directly affected by shift operation.
5TH SHIFT HEAD
SHIFT FORK SHAFT
No.3
SECTION A
MAIN SHIFT FORK
SHAFT
INTERLOCK BLOCK
INTERLOCK BLOCK
SECTION C
SECTION A
SECTION C
5TH SHIFT HEAD
SHIFT FORK
SHAFT No.2
SECTION B
BALL
MAIN SHIFT FORK SHAFT
INTERLOCK BLOCK
6TH SHIFT FORK
LEVER
CHU0511S113
