Mazda RX-8 2004 - Fuel Pump Unit Function

FUEL SYSTEM
01–14–5
01–14
FUEL PUMP UNIT FUNCTION
CHU011413350S03
• The fuel pump suctions fuel from the fuel tank and pumps it to the fuel distributor.
End Of Sie

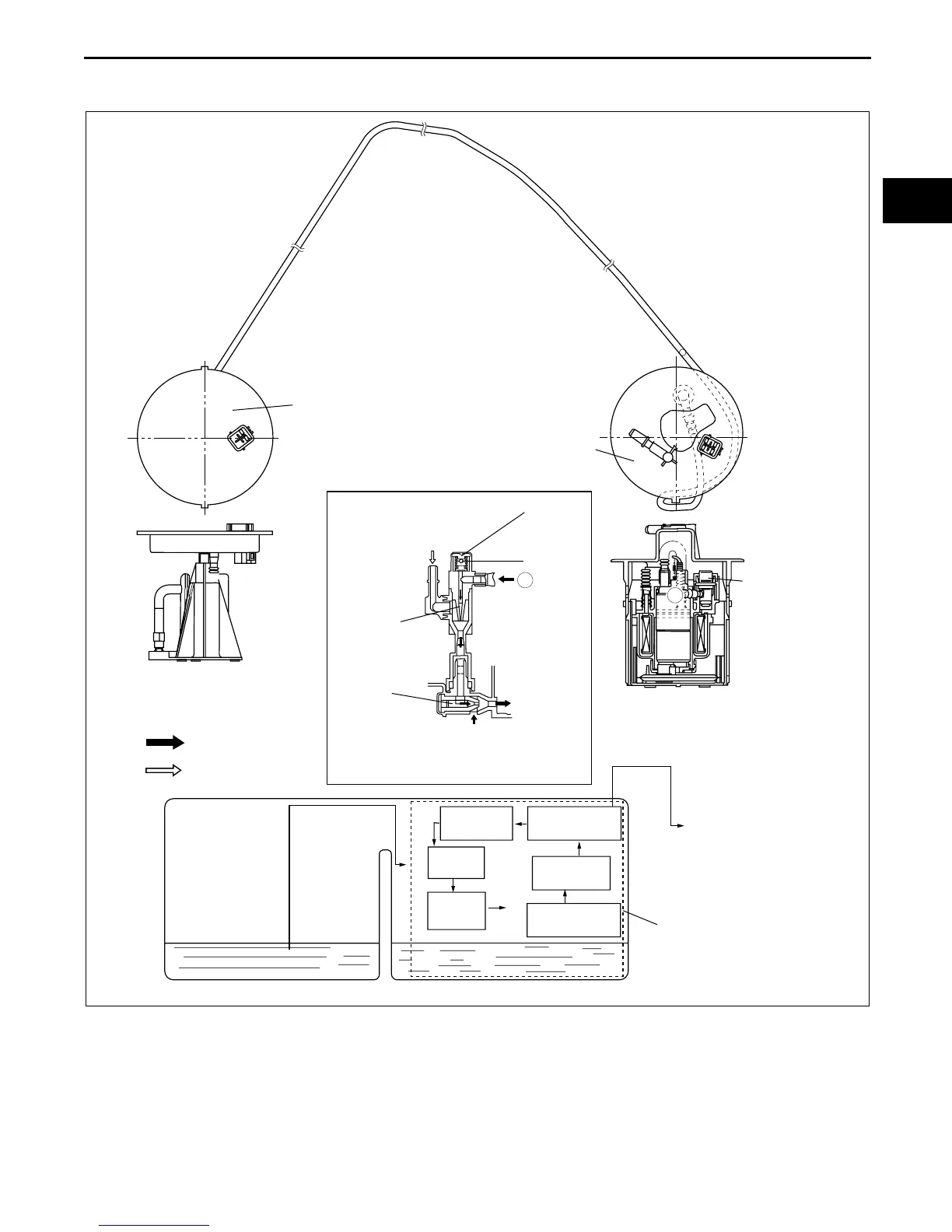

A
A
FUEL SUCTION PIPE BRACKET
FUEL PUMP UNIT
PRESSURE
REGULATOR
RELIEF VALVE
FROM SUB-TANK
DISCHARGE
OUTLET
JET PUMP
TO INSIDE
OF FUEL
RESERVE CUP
FROM FUEL TANK TO
FUEL RESERVE CUP
FUEL PUMP (TRANSFER)
: FUEL FLOW
: FLOW OF
TRANSFERRED FUEL
FUEL FILTER
(HIGH PRESSURE)
TO FUEL DISTRIBUTOR
JET PUMP
JET PUMP
FUEL PUMP
FUEL FILTER
(LOW PRESSURE)
FUEL PUMP UNIT
SUB-TANK MAIN TANK
JET PUMP
PRESSURE
REGULATOR
CHU0114S012
