REAR SUSPENSION OUTLINE
CHU021401016S01
• A multi-link suspension composed of five links has been adopted.
• The links have been lengthened and optimally positioned. Due to this, they constantly provide ideal geometry
to respond to external forces applied during driving, improving handling stability and riding comfort, and
reducing road noise.
End Of Sie

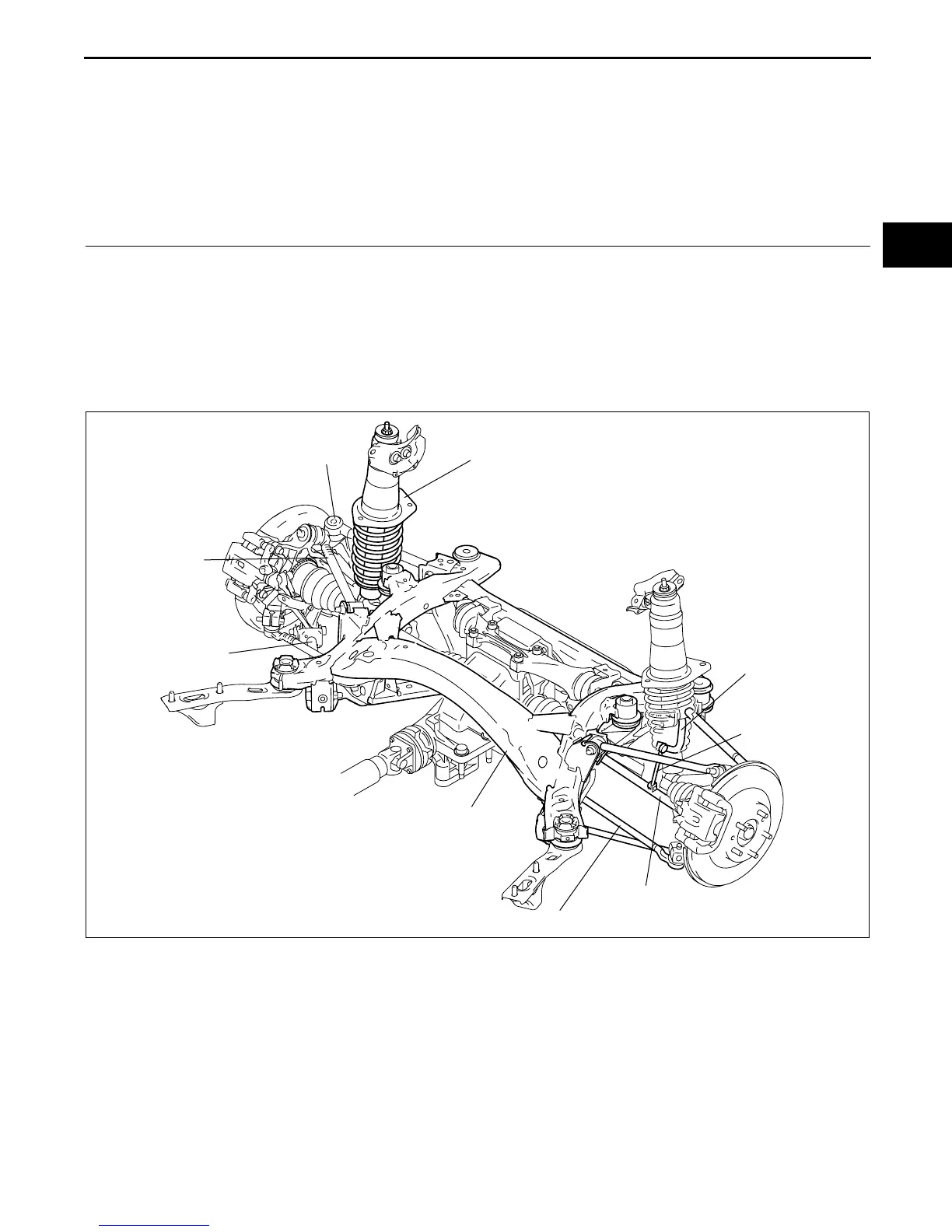

REAR SUSPENSION STRUCTURAL VIEW
CHU021401016S02
End Of Sie
REAR TRAILING
LINK (UPPER)
REAR TRAILING
LINK (LOWER)
REAR LATERAL
LINK (UPPER)
REAR SHOCK ABSORBER
AND COIL SPRING
REAR CROSSMEMBER
TOE CONTROL LINK
REAR LATERAL LINK (LOWER)
REAR STABILIZER
REAR STABILIZER
CONTROL LINK
CHU0214S001
