AIR BAG SYSTEM
08–10–11
08–10

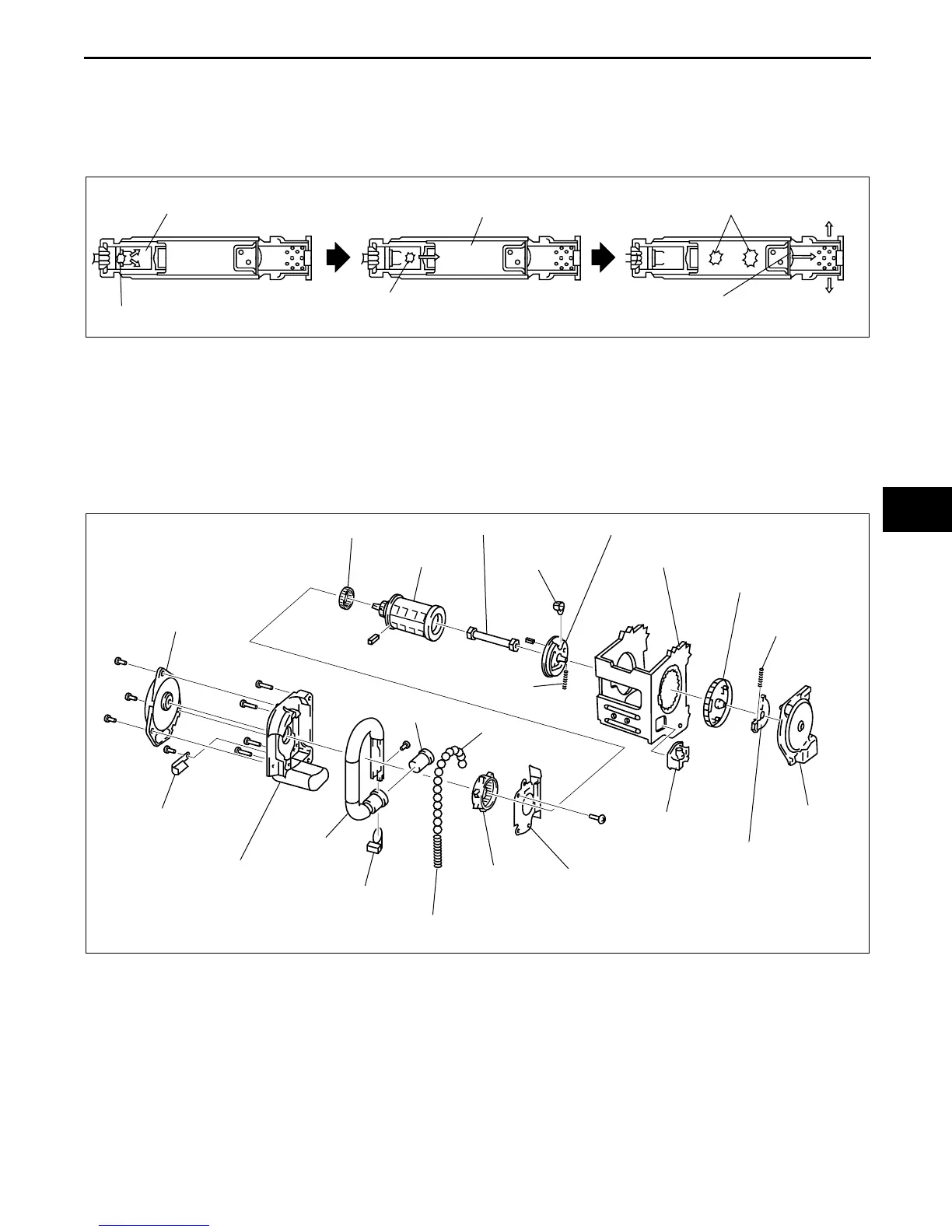

Inflator operation
1. The igniter built into the inflator begins to build up heat when the operation (deployment) signal is sent from the
SAS control module. The inflation agent is ignited by the build up of heat in the igniter.
2. The argon gas expands due to the heat of the ignited inflammation agent.
3. The expanding argon gas breaks the discharge barrier, is cooled and filtered by the filter, and then injected into
the air bag.
End Of Sie
PRE-TENSIONER SEAT BELT FUNCTION
CHU081057630S01
• When a vehicle is involved in a frontal or frontal offset collision and the front seat belts are buckled, the pre-
tensioner seat belt system receives an operation signal from the SAS control module, retracting and tightening
the belt webbing instantly on the driver and front passenger restraints.
End Of Sie
PRE-TENSIONER SEAT BELT CONSTRUCTION/OPERATION
CHU081057630S02
Construction
INFLATION AGENT
IGNITER
COMBUSTION OF
INFLATION AGENT
ARGON GAS
ARGON GAS
EXPANSION
DISCHARGE
BARRIER
TO AIR BAG
TO AIR BAG
CHU0810S302
PINION
SPOOL
TORSION BAR
PAWL
LOCKING BASE
HOUSING
LOCK GEAR
HOOK SPRING
RETAINER
FLY WHEEL
SENSOR
UNIT
PAWL
SPRING
BALL
PRE-TENSIONER
PLATE
RING
GEAR
STOPPER
SPRING
GAS
GENERATOR
GUIDE
BLOCK
PIPE
PRE-TENSIONER
COVER
GUIDE
PLATE
SPRING UNIT
CHU0810S005
