INSTRUMENTATION/DRIVER INFO.
092211
0922
FUEL GAUGE CONTROL OUTLINE
CHU092255430S15
The fuel level signal is output from the fuel gauge sender unit to the microcomputer in the instrument cluster.
Fuel gauge variation caused by fluctuating fuel level when cornering or driving on a slope, is reduced by
microcomputer control.
End Of Sie
FUEL GAUGE CONTROL CONSTRUCTION/OPERATION
CHU092255430S16

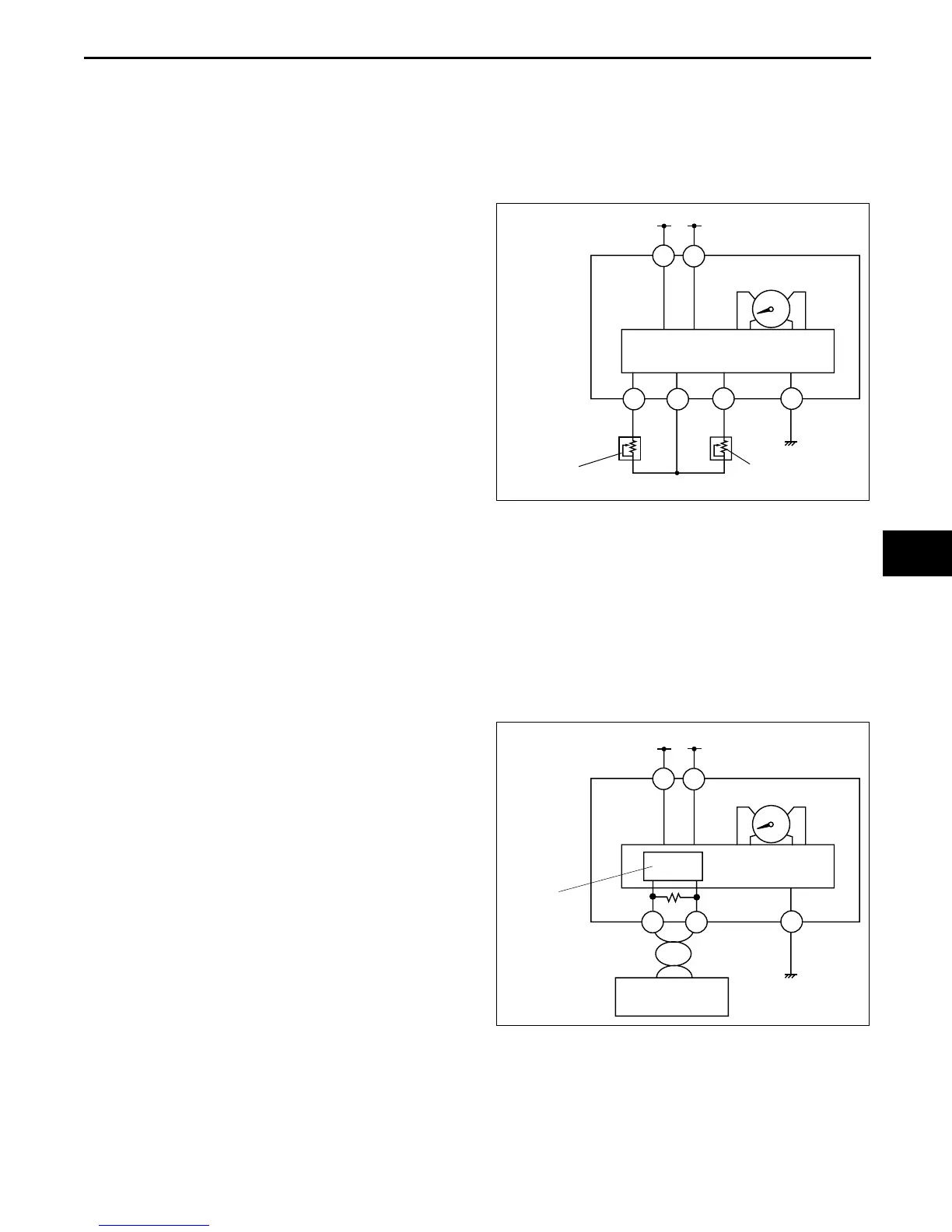

System Wiring Diagram
Operation
A resistance according to fuel level is sent from the fuel gauge sender unit to the microcomputer. The
microcomputer calculates the average resistance within a specified time, and sends the output signal to the
fuel gauge based on the calculated value.
End Of Sie
WATER TEMPERATURE GAUGE CONTROL OUTLINE
CHU092255430S17
The engine coolant temperature signal is output from the PCM to the microcomputer in the instrument cluster.
End Of Sie
WATER TEMPERATURE GAUGE CONTROL CONSTRUCTION/OPERATION
CHU092255430S18
System Wiring Diagram
Operation
The engine coolant temperature signal sent from the PCM via the CAN system is input to the microcomputer in
the instrument cluster. The microcomputer calculates the current engine coolant temperature based on the
engine coolant temperature signal, and sends an output signal to the water temperature gauge.
End Of Sie
2P
IG1
B+
1G
1E
2T2R
1C
INSTRUMENT
CLUSTER
MICROCOMPUTER
FUEL GAUGE
FUEL GAUGE
SENDER UNIT (MAIN)
FUEL GAUGE
SENDER UNIT (SUB)
CHU0922S106
IG1
B+
1G
1E
1L1J
1C
CAN
CONTROL
CIRCUIT
PCM
INSTRUMENT
CLUSTER
MICROCOMPUTER
WATER TEMPERATURE
GAUGE
CHU0922S107
