FUEL SYSTEM
01–14–8
FUEL INJECTOR FUNCTION
CHU011413250S01
• Injects fuel according to fuel injector control signals from the PCM.
End Of Sie
FUEL INJECTOR CONSTRUCTION/OPERATION
CHU011413250S02
Fuel Injector (FP1, RP1)
• Installed on the intermediate housing at an angle of approx. 45°
°°
°, and injects fuel near the intake port opening.
• Mainly consists of a coil, spring and needle valve.
• Fuel injector with 12 injection holes and injection angle of approx. 30°
°°
° adopted to enhance fuel injection
vaporization.
• When a PCM signal is sent, exciting current passes through the coil, pulling in the needle valve and injecting
fuel.
• The amount of injection is determined by the open time of the needle valve, i.e. the energization time of the coil.
Fuel Injector (FP2, RP2, FS, RS)
• Installed on the intake manifold.
• Mainly consists of a coil, spring, and needle valve.
• Injects fuel into the intake manifold at an angle of approx. 19°
°°
°, so that the fuel is drawn into the housing
together with intake air.
• When a PCM signal is sent, exciting current passes through the coil, pulling in the needle valve and injecting
fuel.
• The amount of injection is determined by the open time of the needle valve, i.e. the energization time of the coil.
End Of Sie
FUEL PUMP RELAY FUNCTION
CHU011413350S05
• Controls the fuel pump on/off according to control signals from the PCM.
• For fuel pump relay control, refer to CONTROL SYSTEM, FUEL PUMP CONTROL. (See 01–40–23 FUEL
PUMP CONTROL OUTLINE, 01–40–24 FUEL PUMP CONTROL BLOCK DIAGRAM, 01–40–24 FUEL PUMP
CONTROL OPERATION.)
• Supplies voltage to the fuel pump via the fuel pump resistor when the fuel pump speed control relay is off.
End Of Sie

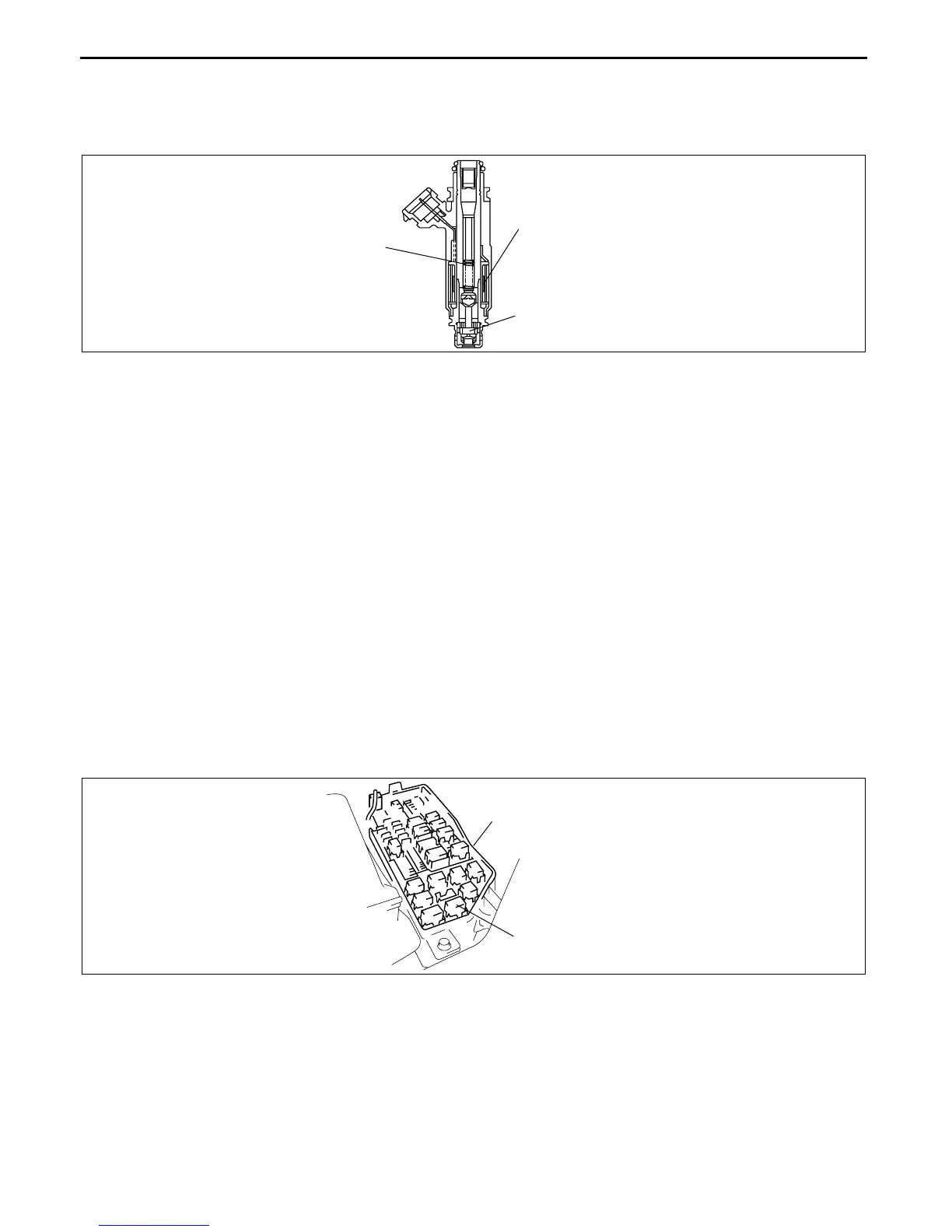

COIL
NEEDLE VALVE
SPRING
CHU0114S004
MAIN FUSE BLOCK
FUEL PUMP RELAY
CHU0114W001
