FRONT SUSPENSION
02–13–3
02–13

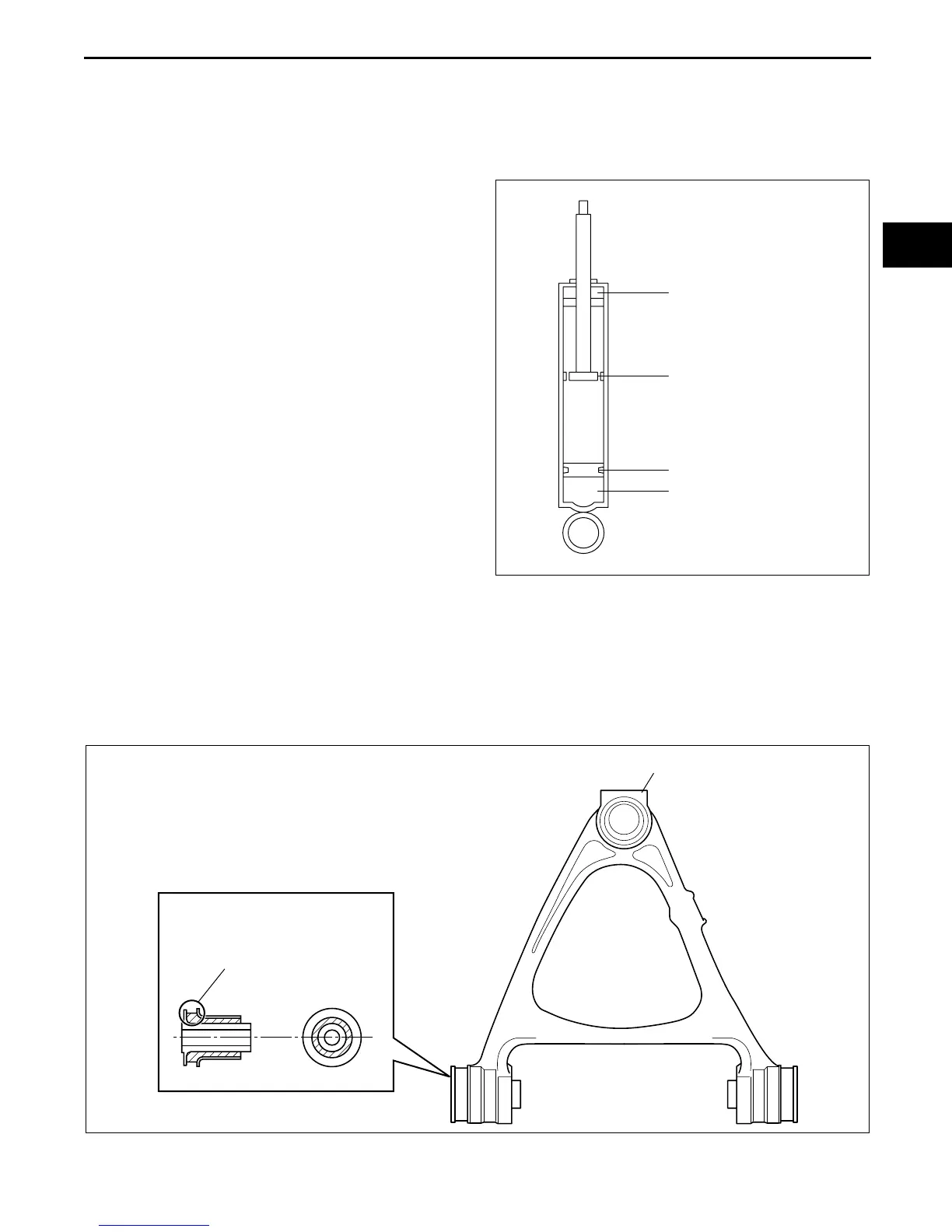

FRONT SHOCK ABSORBER CONSTRUCTION
CHU021334700S01
• The high-pressure gas-filled monotube shock absorber minimizes cavitation and provides stable damping force
even during hard driving.
— The large-diameter piston ensures superior response during minute strokes, providing consistent damping
force and stroke feeling.
— The enlarged piston port area also contributes to the improvement of riding comfort.
End Of Sie
FRONT UPPER ARM CONSTRUCTION
CHU021334200S01
• The front upper arm is made of liquid-forged aluminum for improved rigidity and weight reduction.
• Newly developed zero-stopper-clearance rubber bushings have been adopted for where the upper arm
attaches to the front crossmember.
— The stopper sleeve, integrated with the inner pipe, protrudes slightly.
— This structure suppresses forward-backward movement caused by external forces acting on the arm.
— It also enables linear spring characteristics of the bushings from an early stage, thereby optimizing control
over changes in vehicle behavior.
End Of Sie
OIL SEAL
PISTON
FREE PISTON
HIGH-PRESSURE GAS
CHU0213S005
FRONT UPPER ARM
UPPER ARM BUSHING
ZERO-STOPPER-CLEARANCE
STRUCTURE
CHU0213S003
