GLASS/WINDOWS/MIRRORS
09–12–2

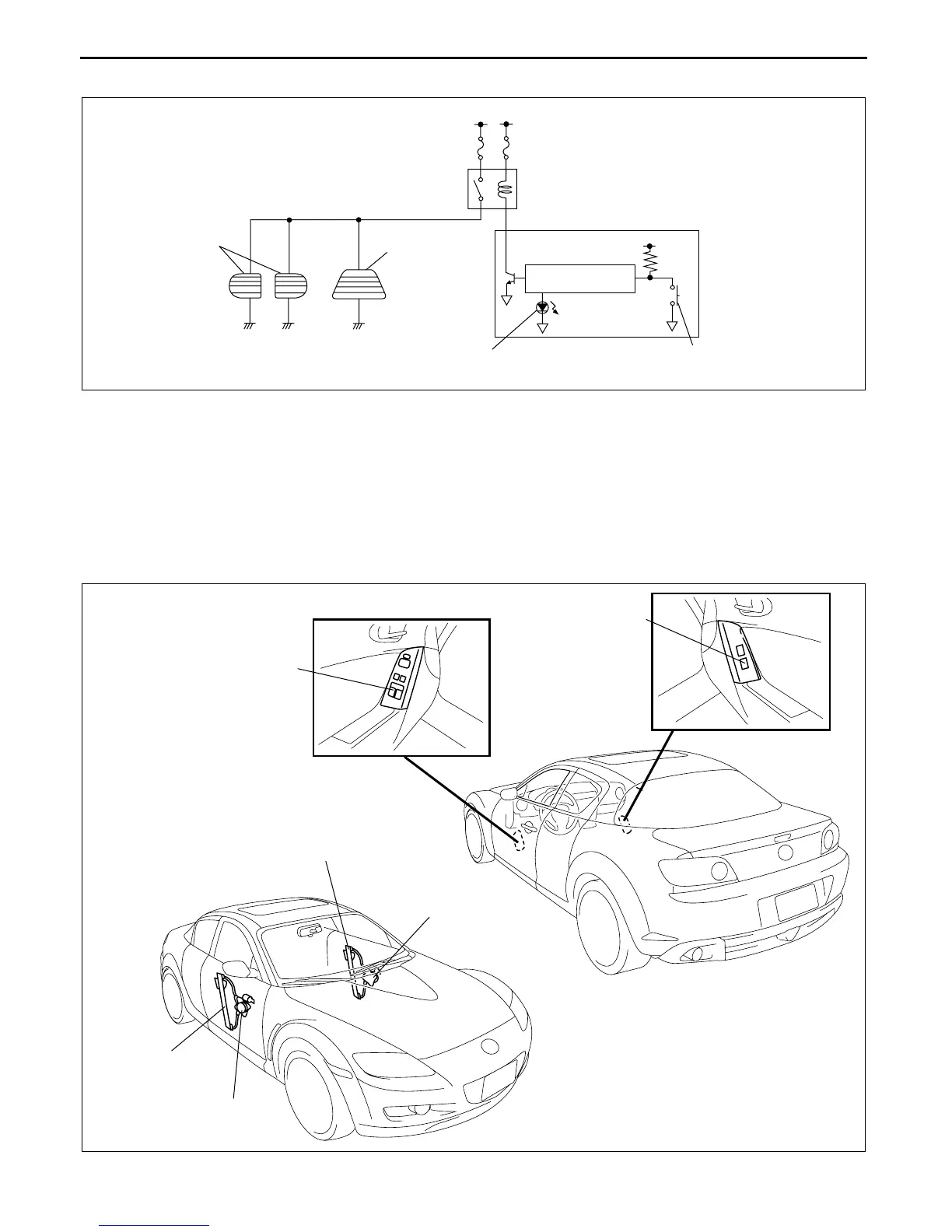

REAR WINDOW DEFROSTER SYSTEM WIRING DIAGRAM
CHU091263000S03
End Of Sie
POWER WINDOW SYSTEM OUTLINE
CHU091258000S01
• The power window system has the following functions.
— Auto open function (driver’s side)
— Power-cut function (driver’s side)
— Manual open/close function
— IG OFF timer function (Cancelled when any door is opened.)
End Of Sie
POWER WINDOW SYSTEM STRUCTURAL VIEW
CHU091258000S02
End Of S ie
IG2B+
REAR WINDOW DEFROSTER RELAY
CLIMATE CONTROL UNIT
REAR WINDOW DEFROSTER
SWITCH
MICROCOMPUTER
REAR WINDOW DEFROSTER
INDICATOR LIGHT
REAR WINDOW
DEFROSTER
FILAMENT
HEATED OUTER
MIRROR FILAMENT
CHU0912S007
POWER WINDOW
MAIN SWITCH
POWER WINDOW
SUBSWITCH
POWER WINDOW
MOTOR
POWER WINDOW
REGULATOR
POWER WINDOW
MOTOR
POWER WINDOW
REGULATOR
CHU0912S001
