Mazda RX-8 2004 - Front Door Speaker Amplifier; Center Speaker Construction (Bose Specification Vehicle); Front Door Speaker Construction; Rear Speaker Construction

ENTERTAINMENT
09–20–13
09–20
Front Door Speaker Amplifier
• Located in the front door trim.
• A digital amplifier (switching amplifier) has been adopted.
• On/off digital signals are amplified and output, allowing power conservation and lower heat generation. Due to
this, a radiating plate (heat sink) is not required, and downsizing of the amplifier has been achieved.

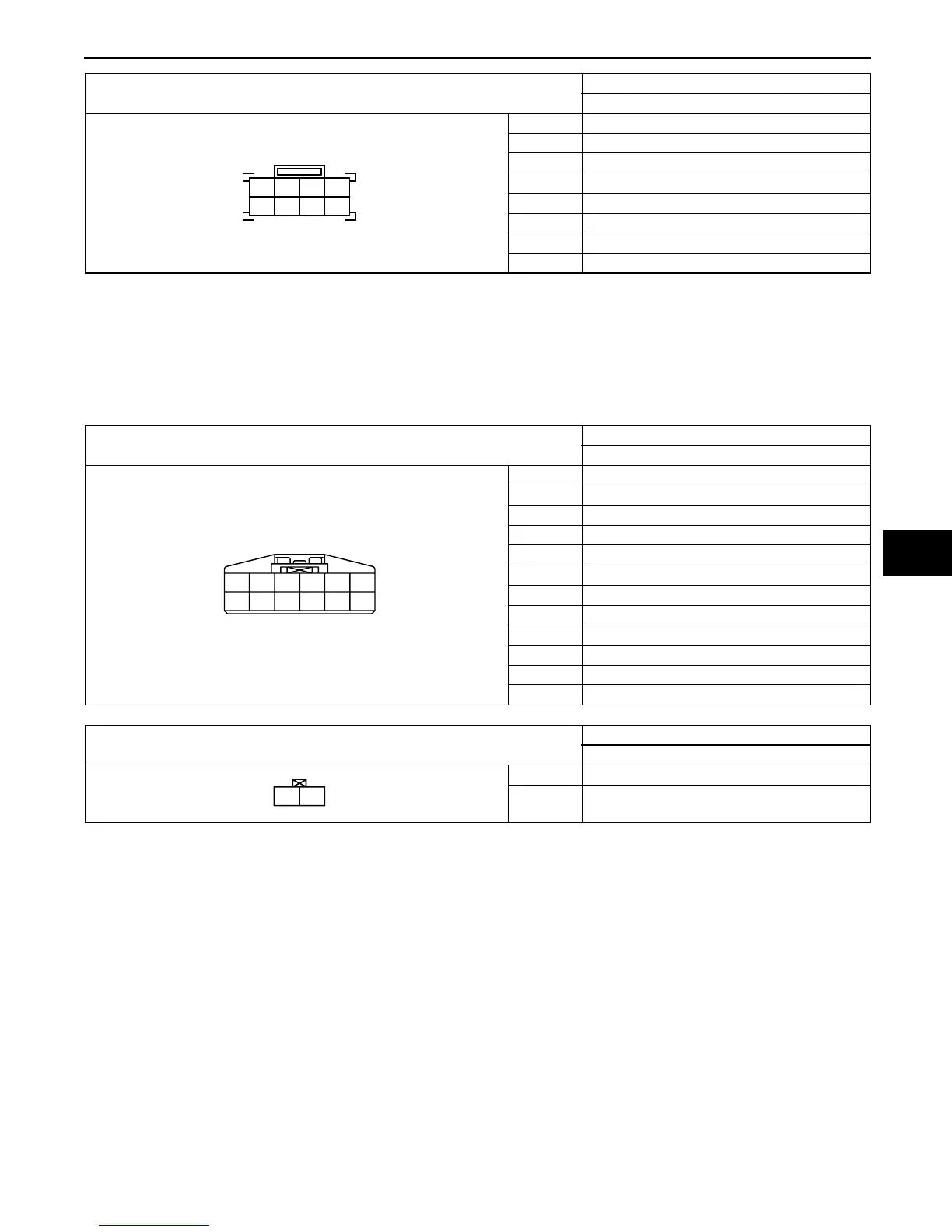

Terminal Layout and Signal
Front door speaker amplifier
End Of Sie
FRONT DOOR SPEAKER CONSTRUCTION
CHU092066961S01
• Located in the font door trim.
• BOSE-manufactured speakers have been adopted for BOSE specification vehicles (all speakers).
End Of Sie
REAR SPEAKER CONSTRUCTION
CHU092066961S02
• Located in the rear package tray.
• BOSE-manufactured speakers have been adopted for BOSE specification vehicles (all speakers).
End Of Sie
CENTER SPEAKER CONSTRUCTION (BOSE SPECIFICATION VEHICLE)
CHU092066961S03
• Located at the center of the dashboard.
End Of Sie
TWEETER CONSTRUCTION
CHU092066966S01
• Tweeters (speaker for high sound) are installed in the front door inner garnishes (right and left), and rear
package tray (BOSE specification vehicle), providing wide-range sound.
End Of Sie
Terminal
Signal
8-pin connector
2A B+
2B Power GND
2C Center speaker output (–)
2D Center speaker output (+)
2E —
2F —
2G —
2H —
2A2C2E2G
2B2D2F2H
Terminal
Signal
12-pin connector
1A Front speaker input (+)
1B Front speaker input (–)
1C —
1D —
1E —
1F —
1G —
1H —
1I —
1J AMP. mute
1K B+
1L GND
Terminal
Signal
2-pin connector
2A B+
2B Power GND
1A1C
1B1D
1E1G
1F1H
1I1K
1J1L
2A2B
