SEAT BELT
08–11–2

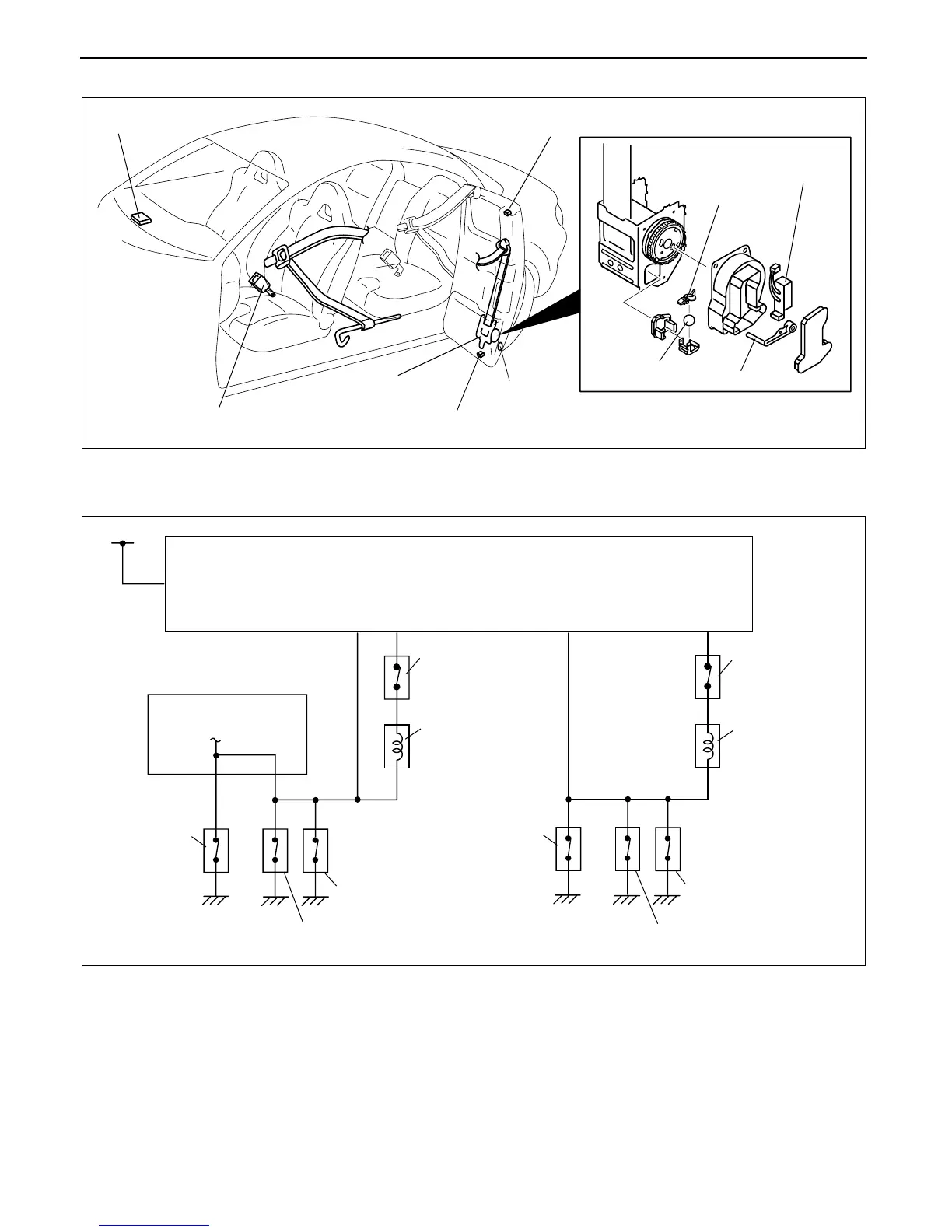

SEAT BELT LOCK RELEASE STRUCTURAL VIEW
CHU081157100S05
End Of Sie
SEAT BELT LOCK RELEASE SYSTEM DIAGRAM
CHU081157100S06
End Of Sie
KEYLESS
CONTROL MODULE
REAR DOOR
UPPER LATCH SWITCH
REAR DOOR
LOWER LATCH SWITCH
DOOR
SWITCH
FRONT SEAT BELT
FRONT BUCKLE SWITCH
ACTUATOR
LOCK RELEASE
SOLENOID
CANCEL LEVER
WEIGHT
CHU0811S002
B+
KEYLESS CONTROL MODULE
FRONT BUCKLE
SWITCH (LH)
LOCK RELEASE
SOLENOID (LH)
FRONT BUCKLE
SWITCH (RH)
LOCK RELEASE
SOLENOID (RH)
REAR DOOR UPPER
LATCH SWITCH (RH)
REAR DOOR UPPER
LATCH SWITCH (LH)
DOOR
SWITCH (RH)
DOOR
SWITCH (LH)
INSTRUMENT CLUSTER
REAR DOOR LOWER
LATCH SWITCH (RH)
REAR DOOR LOWER
LATCH SWITCH (LH)
CHU0811S003
