SEAT BELT
08–11–3
08–11

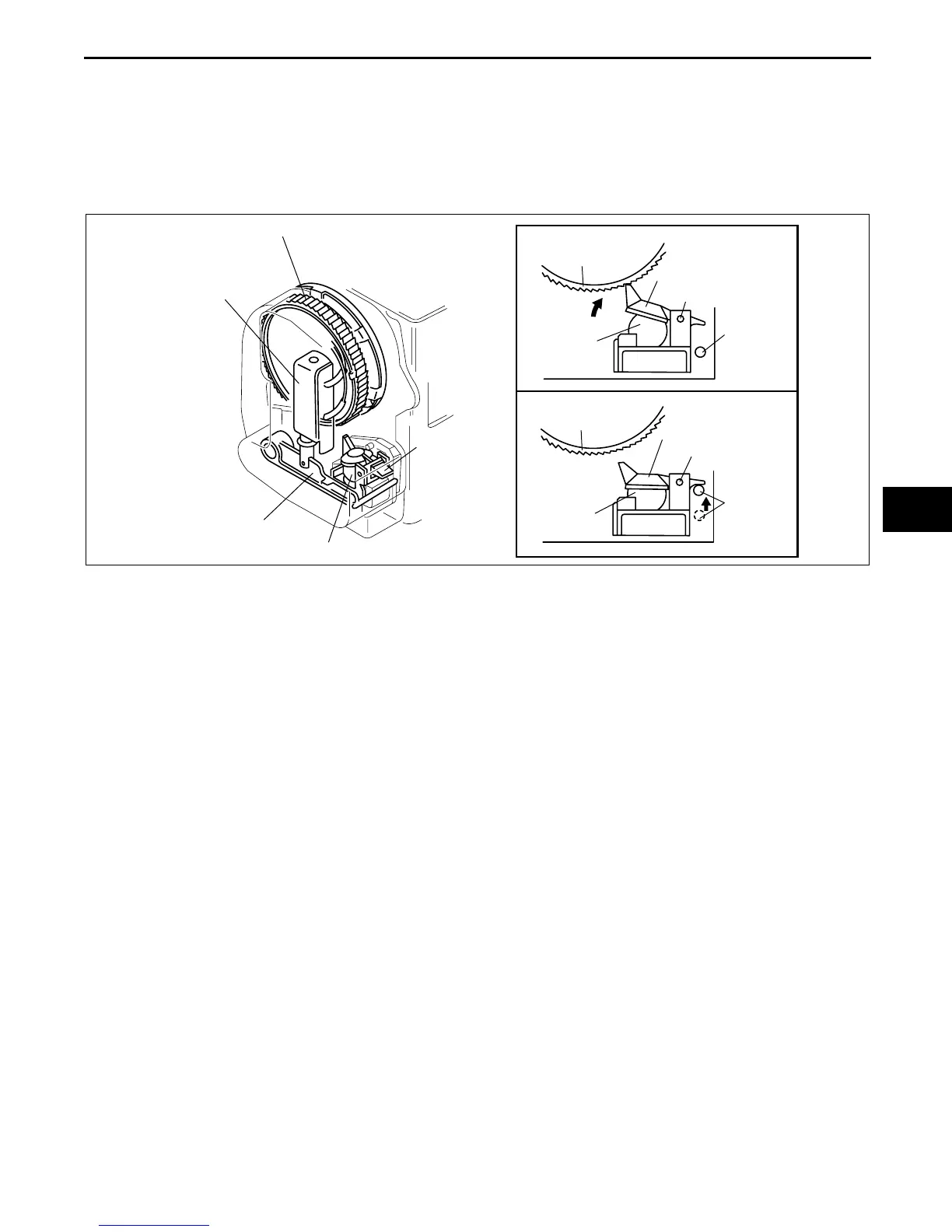

SEAT BELT LOCK RELEASE OPERATION
CHU081157100S07
• When the seat belt lock release function is not operated, the weight is under a no-load condition. When a
sudden shock is applied to the vehicle, the weight moves to push the actuator upward. The actuator engages
with a lock gear and stops its rotation (ELR condition). Due to this, the rotation direction of belt pull out is
stopped.
• When a front seat belt is not in use, the lock release solenoid turns on, pulling the cancel lever upward, if a door
is opened (during the seat belt lock release function operation). As a result, the actuator and weight are fixed in
their positions. Due to this, the front seat belt pulls out smoothly.
Note
• The seat belt lock release function does not operate under the following conditions:
— When all doors are closed.
— When a front seat belt is in use.
— When one hour has elapsed with a door open.
— When the battery or ROOM 15 A fuse is removed.
End Of Sie
LOCK GEAR
LOCK GEAR
LOCK GEAR
LOCK RELEASE
SOLENOID
CANCEL LEVER
CANCEL
LEVER
CANCEL
LEVER
WEIGHT
WEIGHT
WEIGHT
ACTUATOR
ACTUATOR
ACTUATOR
ACTUATOR
FULCRUM
ACTUATOR FULCRUM
NOT OPERATED
OPERATED
CHU0811S006
