AUTOMATIC TRANSMISSION
05–13–41
05–13
FEEDBACK CONTROL STRUCTURE
CHU051301030S13
Features
• During shift up with the accelerator pedal depressed, feedback control regulates the clutch pressure on the
engagement and release sides, according to the throttle opening angle and vehicle speed. It also uses past
gearshifts to optimize clutch pressure.
Note
• If the battery negative terminal is disconnected, feedback memory in the TCM will be erased, and thus
gearshift shock may increase. The shock, however, will decrease gradually as the vehicle is driven.
Structure

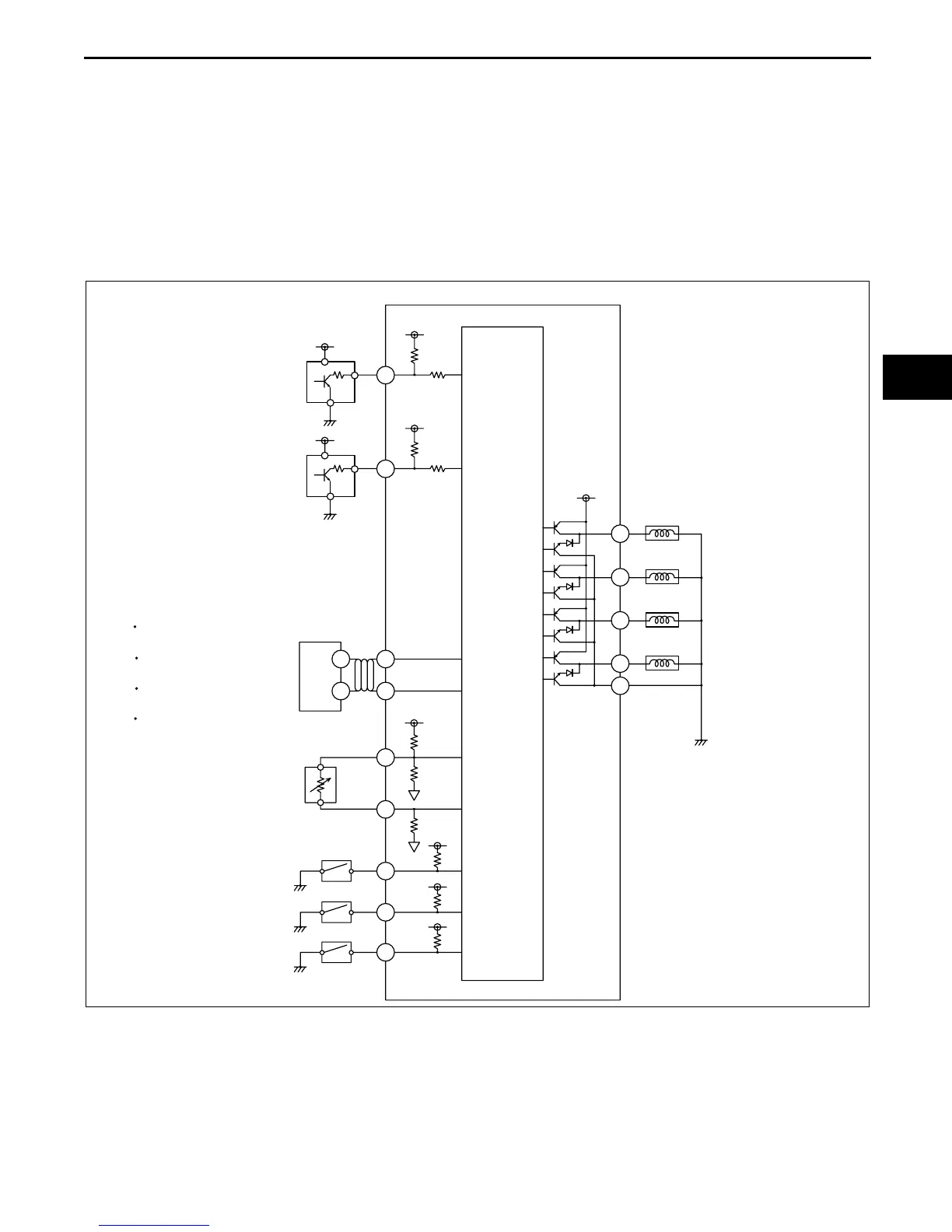

System diagram
End Of Sie
2K
TCM
2G
2P
2S
2V
2Y
2U
1Y
PCM
CAN
1V
2H
2F
2A
2J
2N
OIL PRESSURE SWITCH B
OIL PRESSURE SWITCH C
OIL PRESSURE SWITCH F
TFT SENSOR
THROTTLE
OPENING SIGNAL
ENGINE
TORQUE SIGNAL
ENGINE SPEED SIGNAL
REDUCE
TORQUE SIGNAL
VSS
TURBINE
SENSOR
SHIFT SOLENOID F
SHIFT SOLENOID B
SHIFT SOLENOID C
SHIFT SOLENOID A
CHU0513S057
