SECURITY AND LOCKS
09–14–4

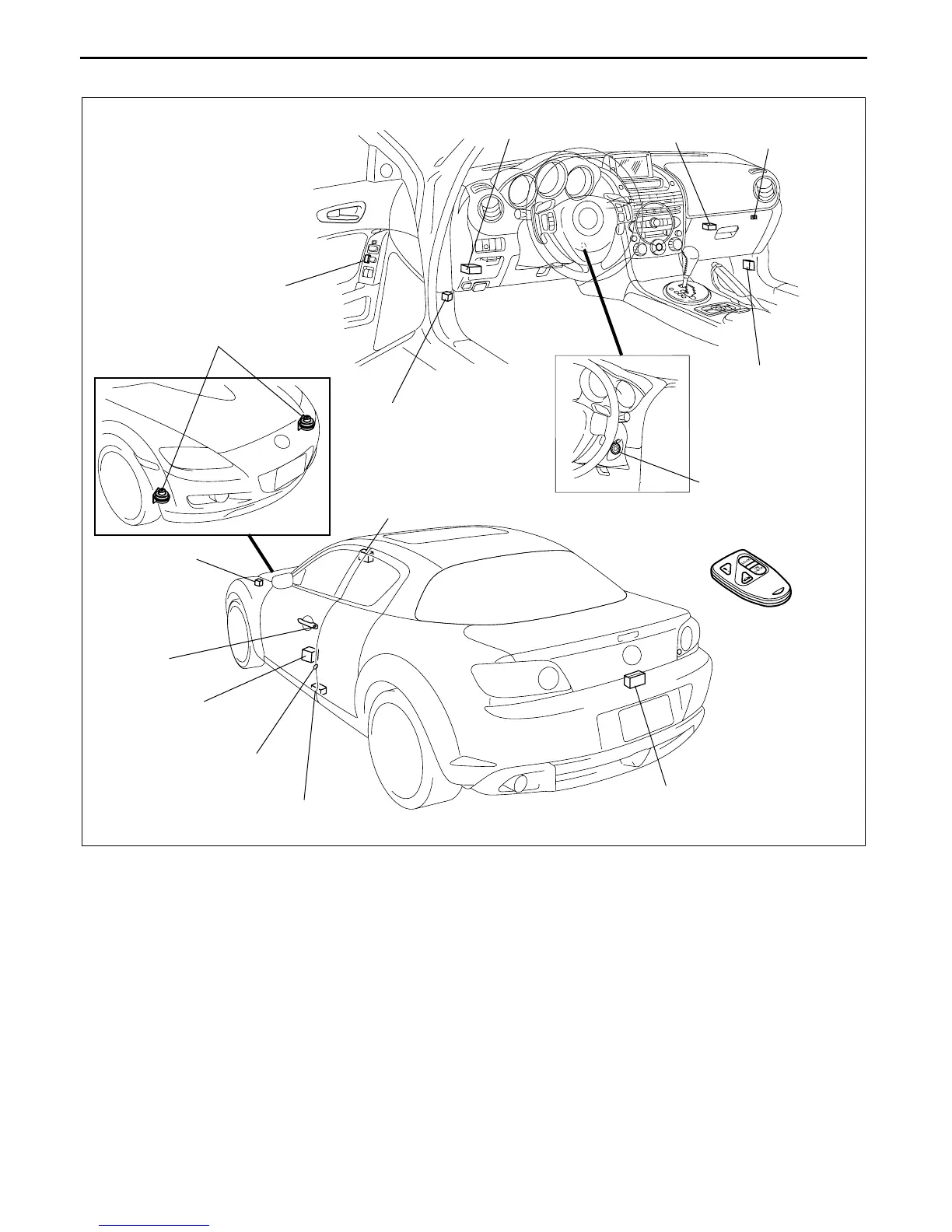

KEYLESS ENTRY SYSTEM STRUCTURAL VIEW
CHU091401090S05
End Of Sie
HORN RELAY
TRUNK LID OPENER
FRONT DOOR
LOCK ACTUATOR
(BUILT-IN DOOR
LOCK-LINK SWITCH)
DOOR SWITCH
DOOR KEY
CYLINDER SWITCH
FLASHER CONTROL
MODULE
KEY REMINDER
SWITCH
TRANSMITTER
REAR DOOR
UPPER LATCH SWITCH
HORN
REAR DOOR LOWER
LATCH SWITCH
KEYLESS CONTROL
MODULE
KEYLESS
RECEIVER
TRUNK LID
OPENER RELAY
DOOR LOCK SWITCH
TRUNK LID OPENER
CANCEL SWITCH
CHU0914S208
