ON-BOARD DIAGNOSTIC SYSTEM (IMMOBILIZER SYSTEM) PID/DATA MONITOR FUNCTION
CHU091467000S06
• The following items can be verified:
— Number of continuous DTCs
— Number of key ID numbers registered with the vehicle
• Use the WDS or equivalent to read the PID/data monitor.

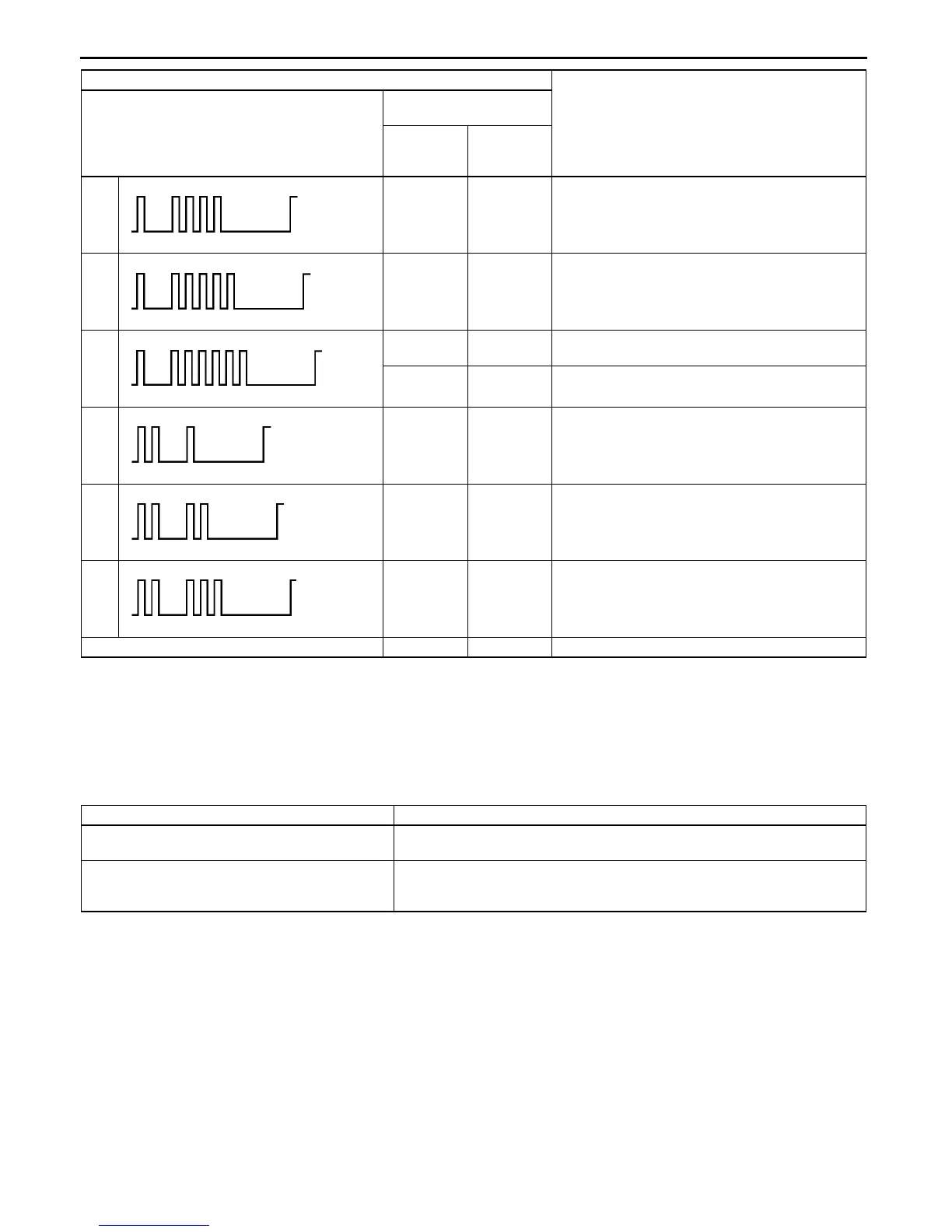

PID/Data Monitor Table
End Of Sie
14 B1602 P1260
The keyless control module cannot read key ID
number data normally.
15 B1601 P1260 Unregistered key detected.
16
U2510 P1260
Communication error between the keyless control
module and the PCM (no response)
U1147 P1260
Communication error between the keyless control
module and the PCM (mismatched conditions)
21 B1213 P1260 Only one key is registered.
22 B2141 P1260
Communication error between the keyless control
module and the PCM (data transfer error)
23 B2139 P1260 PCM ID number data mismatch
Not illuminated B1342 - Keyless control module malfunction
DTC
Detected condition
Security light flashing pattern
WDS or equivalent
display
Keyless
control
module
PCM
PID name (definition) Detected condition
CCNT_DD
(Number of continuous DTCs)
• DTCs are detected: 1—255
• No DTCs are detected: 0
NUMKEYS
(Number of key ID numbers registered with the
vehicle)
Number of key ID numbers registered: 0—8
To Next Page
