SUNROOF
09–15–1
09–15
09–15 SUNROOF
SLIDING SUNROOF OUTLINE. . . . . . . . 09–15–1
SUNROOF SPECIFICATION . . . . . . . . . 09–15–1
SLIDING SUNROOF STRUCTURAL
VIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . 09–15–1
SLIDING SUNROOF SYSTEM WIRING
DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . 09–15–2
SLIDING SUNROOF OPERATION . . . . . 09–15–2
SUNROOF UNIT
CONSTRUCTION/OPERATION . . . . . . . 09–15–3
SUNROOF MOTOR
CONSTRUCTION . . . . . . . . . . . . . . . . . . 09–15–4
End of Toc
SLIDING SUNROOF OUTLINE
CHU091501049S01
• Electric sunroof with tilt mechanism adopted
• Deflector adopted, throbbing noise reduced
• System control using pulse sensor (Hall IC) adopted for system simplification
• Sunroof motor with integrated control unit adopted
End Of Sie
SUNROOF SPECIFICATION
CHU091501049S02
End Of Sie

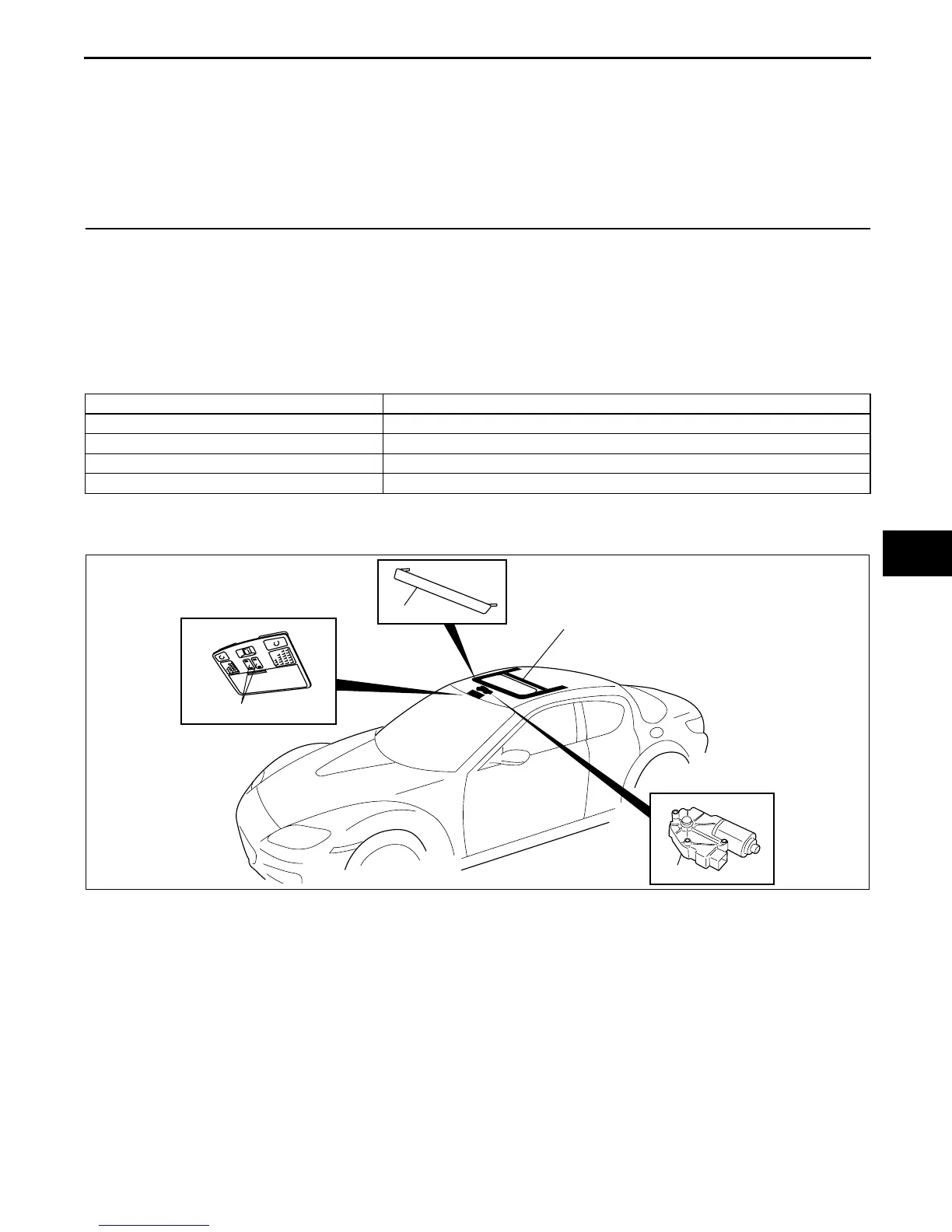

SLIDING SUNROOF STRUCTURAL VIEW
CHU091501049S03
End Of Sie
Item Specification
Slide system Outer slide
Opening measurement (mm {in}) 208 × 722 {8.2 × 28.4}
Tilt-up amount (mm {in}) 22—28 {0.9—1.1}
Opening/closing time (s) Slide : 2.5—5.5, Tilt : 0.9 or less
SUNROOF UNIT
SUNROOF SWITCH
SUNROOF MOTOR
DEFLECTOR
CHU0915S101
