WIPER/WASHER SYSTEM
09–19–2
WINDSHIELD WIPER SYSTEM OUTLINE
CHU091901052S03
• The windshield wiper system has autostop function, one-touch function, and intermittent function with various
timings.
End Of Sie
WINDSHIELD WIPER SYSTEM WIRING DIAGRAM
CHU091901052S04
End Of Sie
WINDSHIELD WIPER SYSTEM OPERATION
CHU091901052S05
Low Speed And High Speed Operation

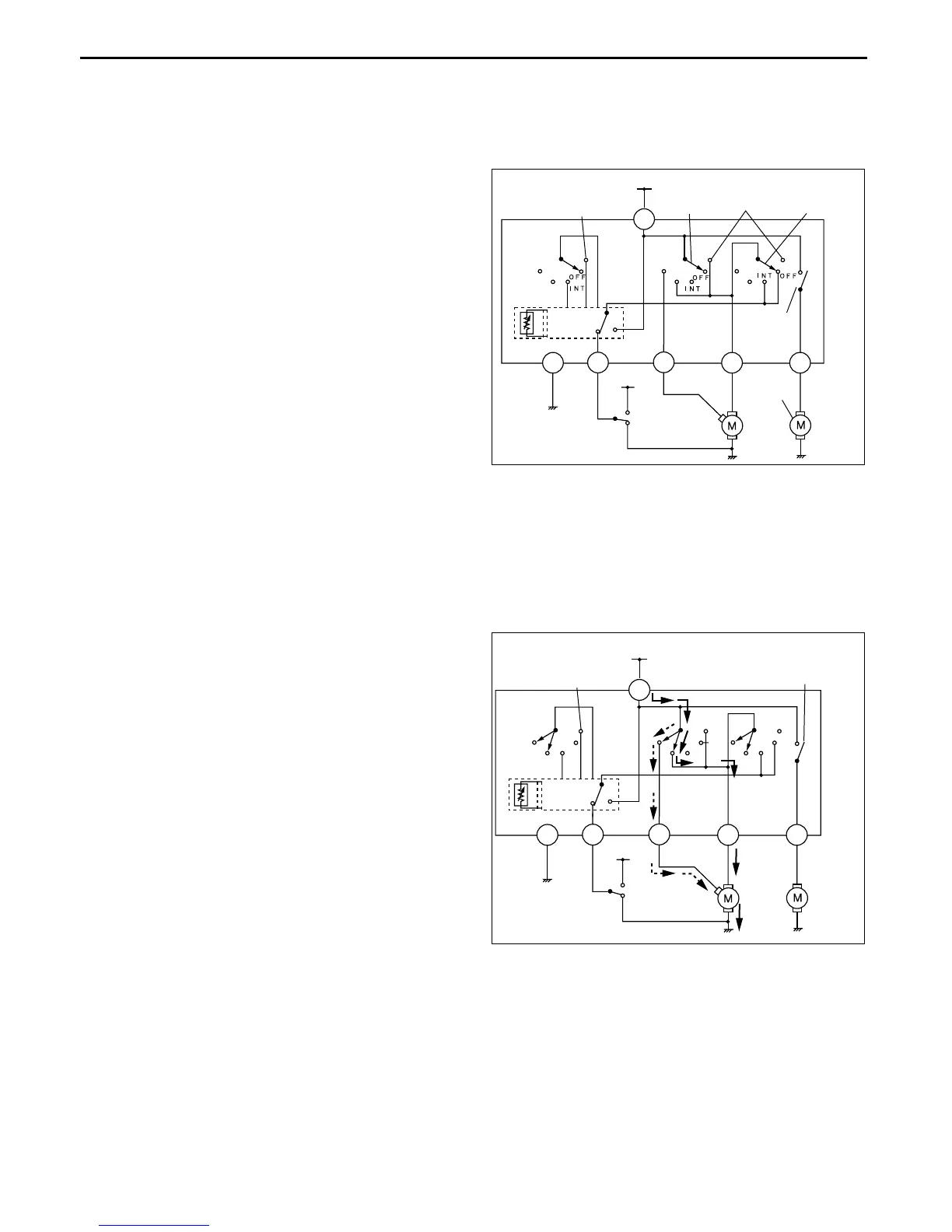

• When the windshield wiper switch moves to the 1 (low) position, current (1) flows through the windshield wiper
switch to the windshield wiper motor, then to ground. The wipers operate at low speed.
• When the windshield wiper switch moves to the 2 (high) position, current (2) flows through the windshield wiper
switch to the windshield wiper motor, then to ground. The wipers operate at high speed.
• When the windshield wiper switch returns to the OFF position, the autostop function activates and the wipers
stop at the park position.
