WIPER/WASHER SYSTEM
09–19–8

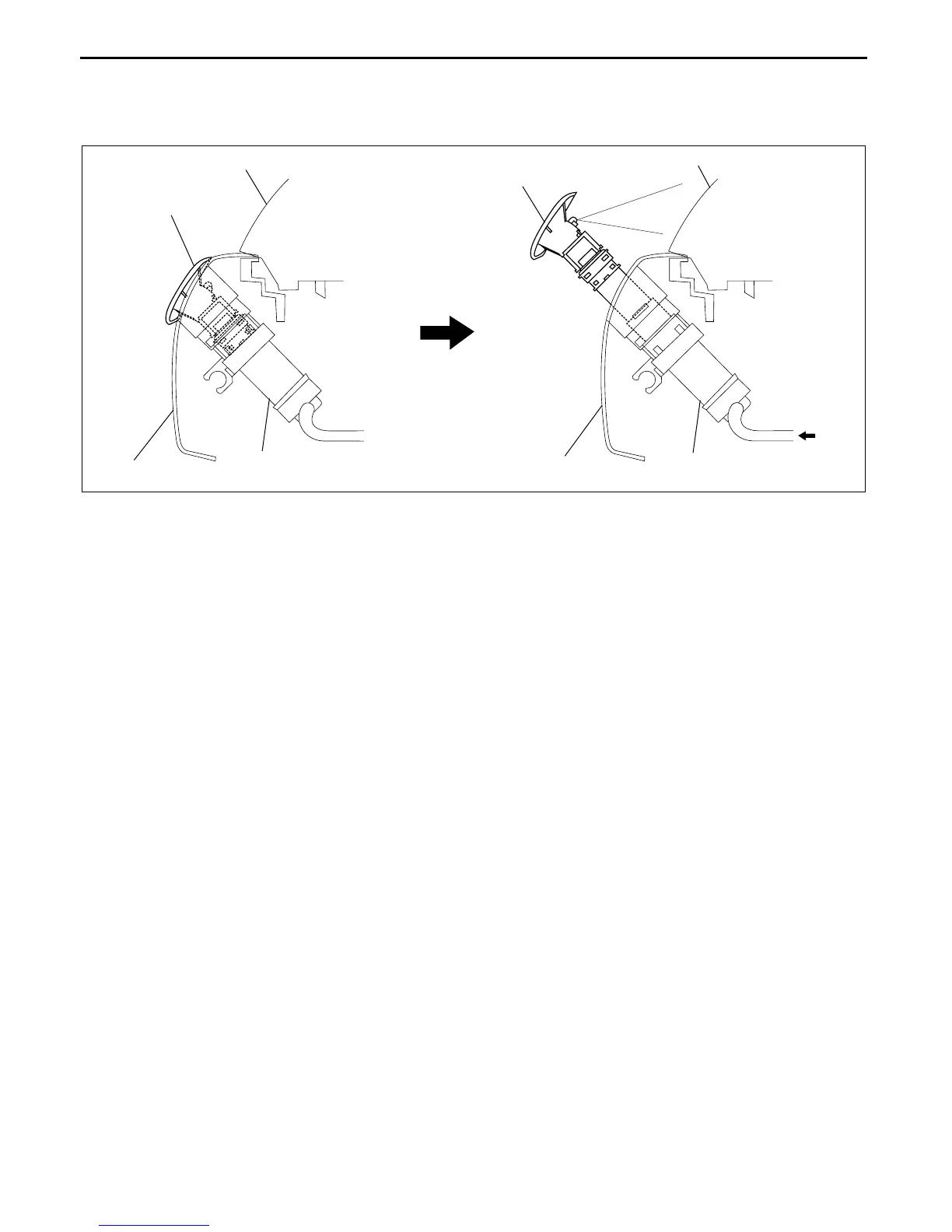

HEADLIGHT CLEANER ACTUATOR OPERATION
CHU091901052S09
• The headlight cleaner nozzle is held retracted by a spring within the headlight cleaner actuator.
• When fluid pressure rises due to the operation of the headlight cleaner motor, the piston in the headlight
cleaner actuator is pushed, causing the nozzle to pop out of the front bumper and spray washer fluid.
End Of Sie
HEADLIGHT
CLEANER NOZZLE
HEADLIGHT
CLEANER NOZZLE
FRONT BUMPER
FRONT BUMPER
HEADLIGHT
HEADLIGHT
HEADLIGHT
CLEANER ACTUATOR
HEADLIGHT
CLEANER ACTUATOR
FLUID
PRESSURE
CHU0919S112
