ENTERTAINMENT
09–20–10

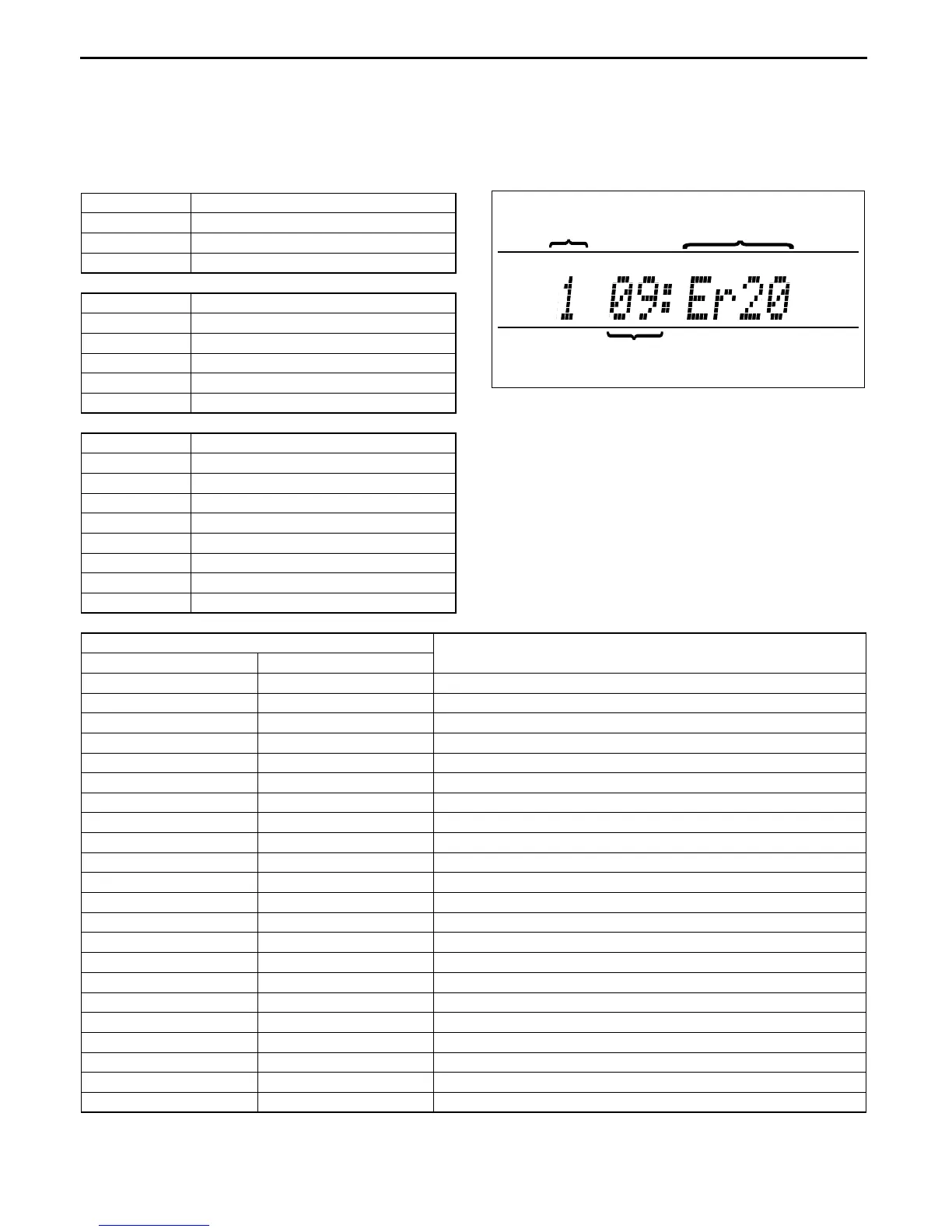

Display function
• When the self-diagnostic function is activated, the information display displays the DTC stored in the memory.
• The DTC consists of the following codes and numbers:
— Supplier code (indicates manufacturer)
— Part number (indicates malfunctioning part)
— Error code (indicates malfunction description)
• Refer to the Service Section for the display method.
Supplier code Supplier name
1 FMS Audio
2 Panasonic
3Clarion
Parts number Parts name
00 Cassette deck (lower module)
03 CD player (upper module)
06 CD changer (upper module)
07 MD player (lower module)
09 Base unit
Error code Malfunction description
01 Internal mechanism error
02 Servo mechanism error
03 Mechanism stuck
07 Disc reading error
08 Blank media
10 BUS line (communication line) error
20 Insufficient power supply
22 Tuner error
SUPPLIER CODE
PART NUMBER
ERROR CODE
CHU0920S005
Screen display
Malfunction location
DTC Output signal
09:Er22 — Base unit (peripheral circuit)
09:Er20 — Power supply circuit of base unit
00:Er10 — Cassette deck—base unit communication line
03:Er10 — CD player—base unit communication line
06:Er10 — CD changer (upper module)—base unit communication line
07:Er10 — MD player—base unit communication line
03:Er01 — CD player
03:Er02 CHECK CD CD player
03:Er07 CHECK CD CD player
00:Er01 — Cassette deck
00:Er03 — Cassette deck
00:Er04 CHECK TAPE Cassette tape
06:Er01 — CD changer (upper module)
06:Er02 CHECK CD CD changer (upper module)
06:Er07 CHECK CD CD changer (upper module)
07:Er01 — MD player
07:Er02 CHECK MD MD player
07:Er07 CHECK MD MD player
07:Er08 CHECK MD MD
10:Er01 — CD player MP3 operation
10:Er02 CHECK CD CD player MP3 operation
no Err — No stored DTCs
