Show Dashboard ASAP 2460 Operator’s Manual
4-20 246-42800-01 - Aug 2013

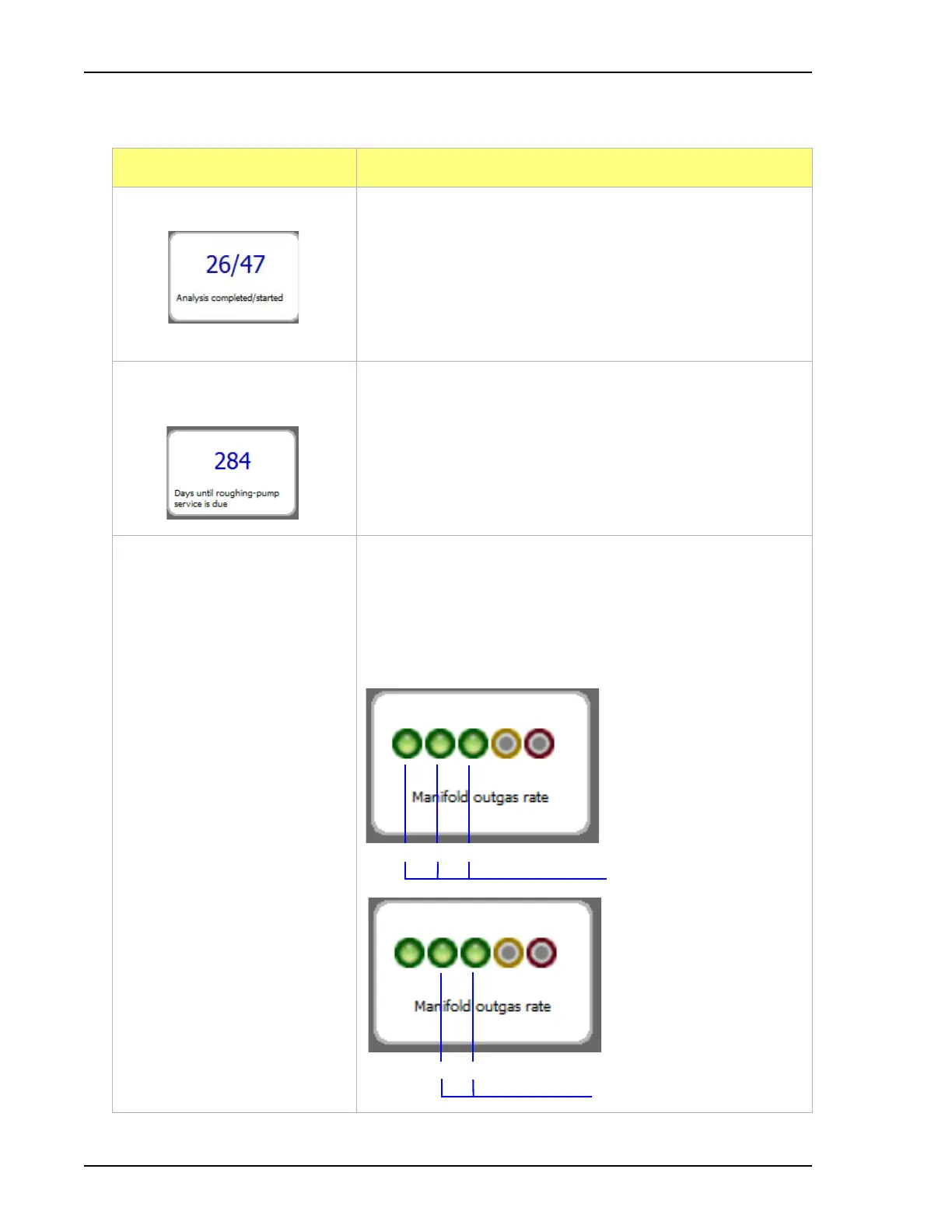

Gauge Description
Analyses completed/started Displays N/M where N is the number of analysis that have
finished data collection and M is the number of analyses that
have been started. Analyses canceled or terminated by errors
before the termination stage starts are not counted as completed.
The numbers are updated on each analysis start and at the end of
data collection. To reset these numbers right click on the
window then click the Reset.
Days until roughing-pump
service is due
Yearly maintenance is recommended. The number of days until
the anniversary of the last pump maintenance are shown. The
displayed value is updated at least once per day and when the
maintenance time is reset. When the displayed value is 30 or
less, the value is displayed in red. Red negative numbers display
if maintenance is past due.
Manifold outgas rate Provides the qualitative indication of the outgas rate in the
dosing manifold. LED images constitute a bidirectional bar
graph of the outgas rate.
The gauge is updated after each outgas rate measurement. To
reset these numbers right click on the window then click the
Reset.
The three green LEDs are lit if
the outgas rate is below 30% of
the outgas rate limit.
On On On
OnOn
At 30%, the left LED turns
off.
