6 MAINTENANCE AND TROUBLESHOOTING
ENABLE MANUAL CONTROL FOR SMART VACPREP
Smart VacPrep >Unit [n] >Enable Manual Control
Use to enable the manual control of certain system valves and elevator components. When this option is
enabled, a checkmark appears to the left of Unit [n] > Enable Manual Control.

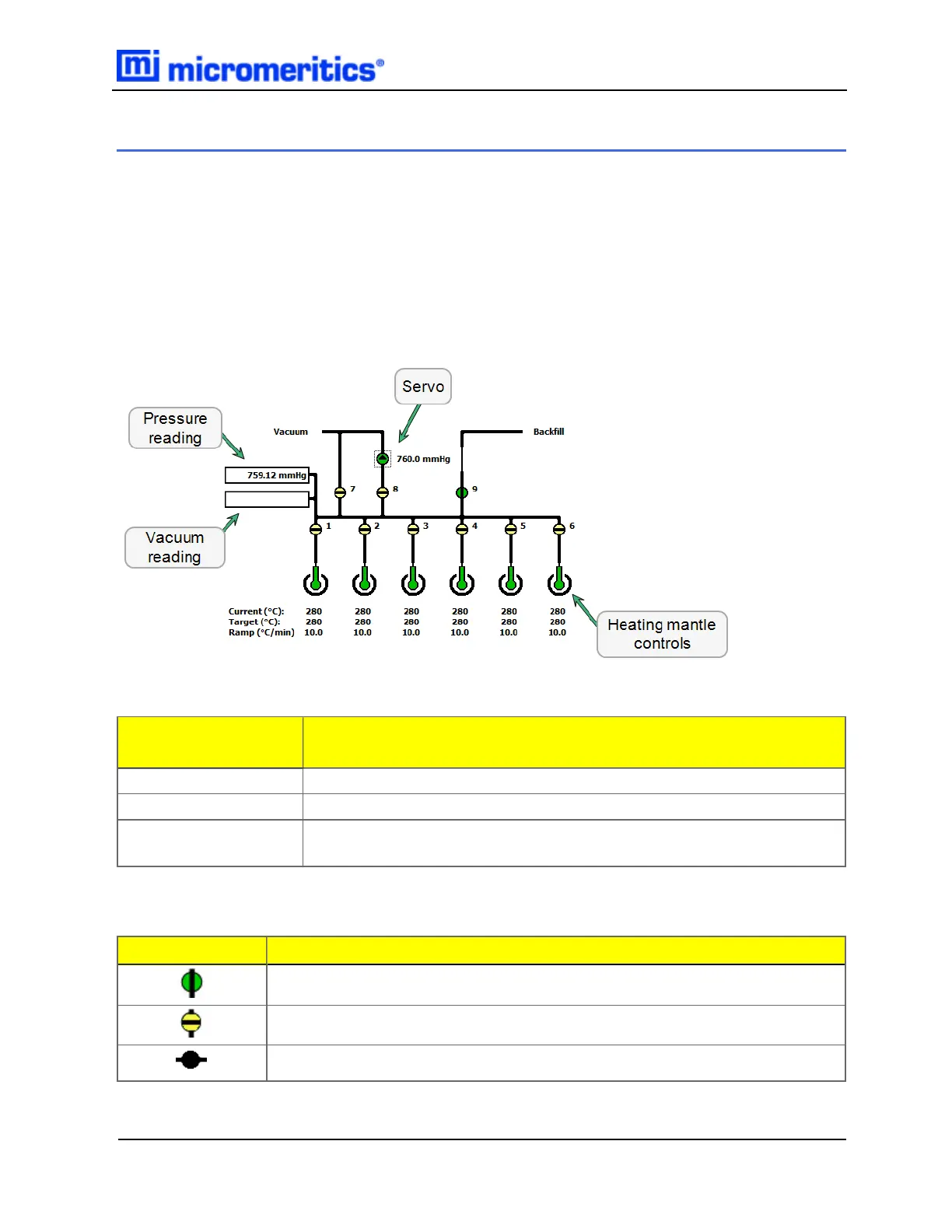

If the schematic is not immediately visible, go to Unit [n] > Show Instrument Schematic.
Schematic
Components
Description
1-6 Sample port valves
7, 8, 9 Vacuum and backfill valves
Heating mantle con-
trols
Sets the ramp rate and target temperature
Smart VacPrep Schematic Components Table
Field or Button Description
Open Valve. Green indicates an open valve.
Closed Valve. Yellow indicates a closed valve.
Servo Valve. Closed.
Smart VacPrep Schematic Components Icon Table
6 Maintenance and Troubleshooting
Smart VacPrep Operator Manual 6 - 1
