Motion Control Engineering Motion 4000 User Manual

Landing/Positioning System
2-75
2
Motion 4000

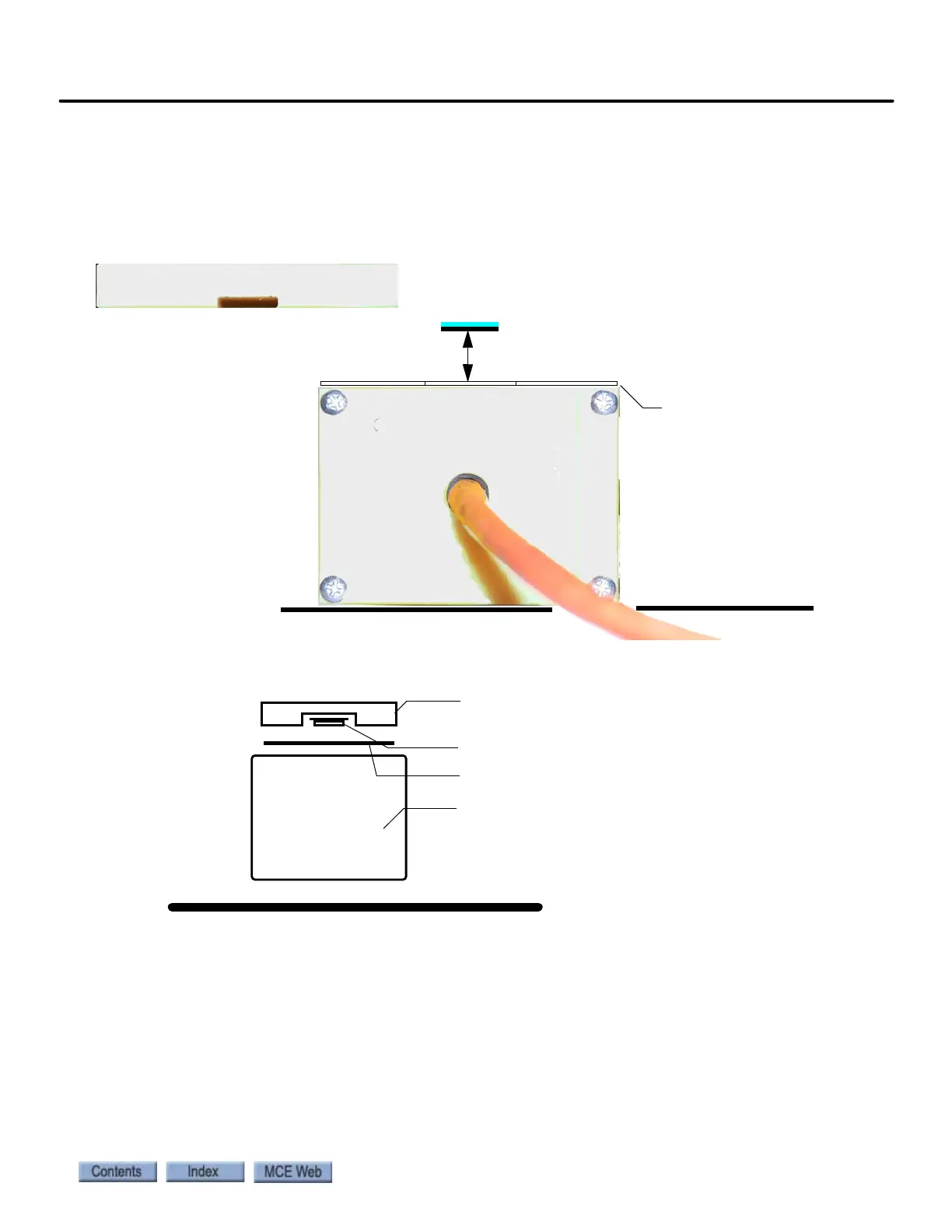

3. Adjust the distance between sensor and tape. Up to a travel height of 110 meters, we rec-
ommend an offset of 1 inch (25 mm) with the polymer guide removed. (See the illustra-
tion below.) Verify that the offset measures 1.0 inches at both the top and the bottom of
the sensor. This will ensure steady, even contact between the steel side of the tape and
the polymer guide of the sensor.
4. Re-attach the polymer guide with the tape resting in the guide slot.
1.0 inches (25 mm)
ELEVATOR CAR
Tape
Sheet-plastic membrane
Polymer guide
Tape (magnetic band towards sensor)
Sheet-plastic membrane
CAR
Sensor body
