Motion Control Engineering Motion 4000 User Manual

Installation
2-74 Manual # 42-02-2P24
Tape Must Be Plumb and Under Tension Before Completing the Following Steps

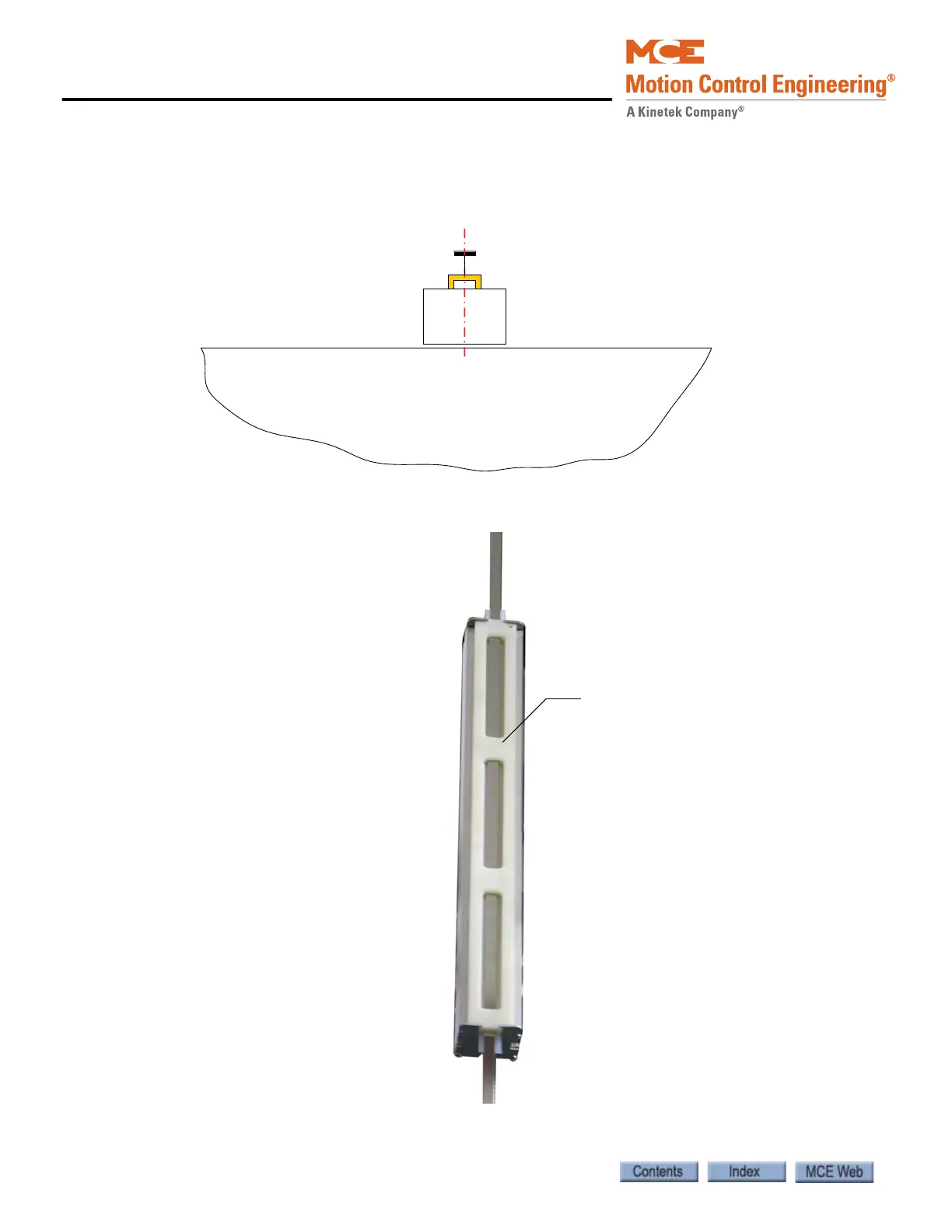

1. Adjust the sensor to tape centerline alignment using the plumb tape as a reference as
shown below.
2. Remove the front polymer
guide from the sensor by
flexing it slightly out at the
center and pulling it from
the retaining clips at each
end. Leave the sheet-plastic
membrane in position on the
sensor.
Elevator Car
Sensor
Magnet band
Polymer guide
polymer guide
