Motion Control Engineering Motion 4000 User Manual

Troubleshooting
5-86 Manual # 42-02-2P24

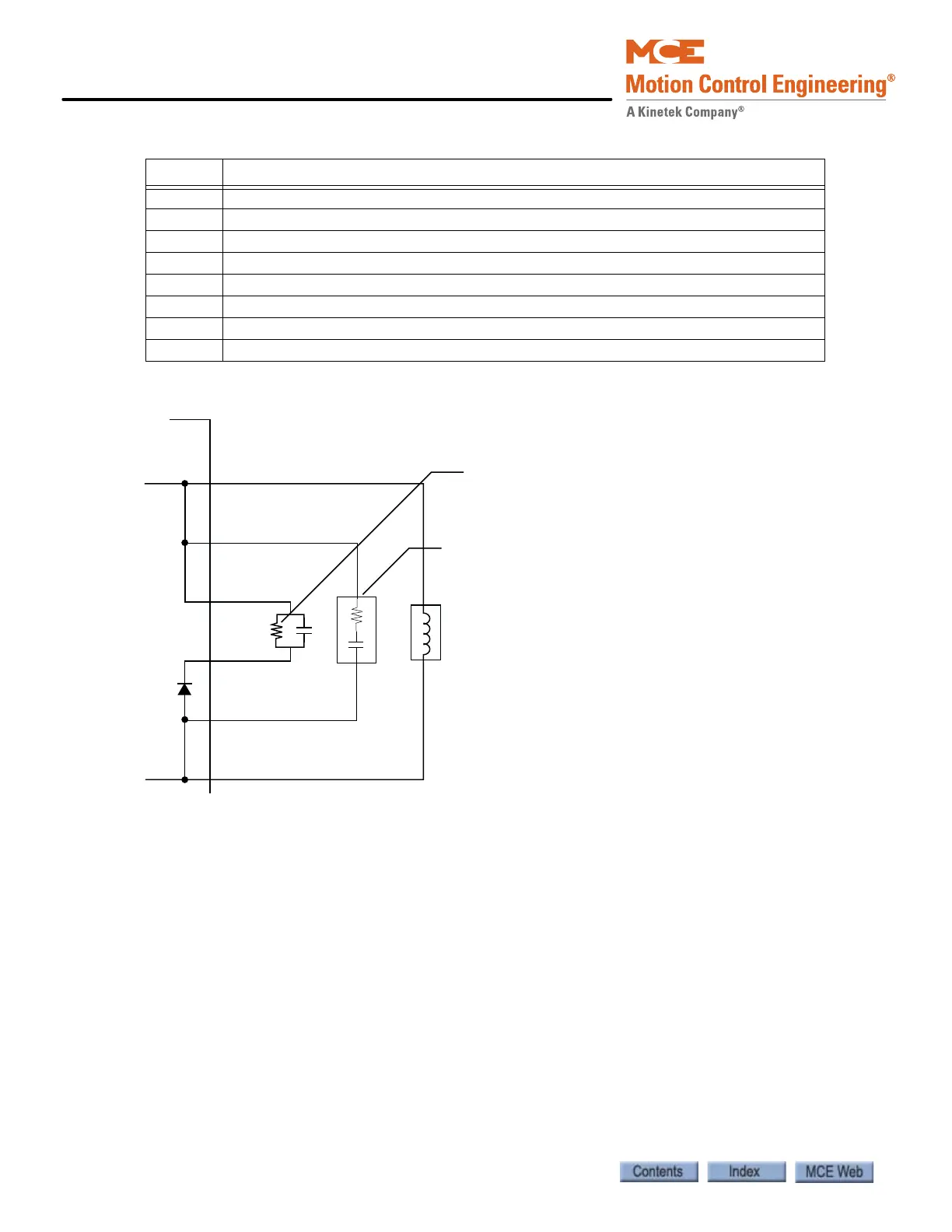

Figure 5.18 External Filtering
J3, SN4 With J2, SN3, connection point for user-provided external filter
J3, FCO- With FCO+, provides power to energize brake coil under normal logic conditions
J3, FCO+ With FCO-, provides power to energize brake coil under normal logic conditions
J5, DT1 Factory Only. Production testing.
J5, DT2 Factory Only. Production testing.
J5, FCL1 AC input, with J6, FCL2 for single-phase use or J6, FCL2/FCL3 for three-phase use
J6, FCL2 AC input, with J5, FCL1 for single-phase use or J5, FCL1/J6 FCL3 for three-phase use
J6, FCL3 AC input, with J5, FCL1 and J6, FCL2 for three-phase use.
Table 5.35 In-Line Connectors Pin Assignment
Pin Function
Module
FCO+
SN4
SN2
SN1
SN3
FCO-
Filter
Resistance value: 3 - 5 x coil resistance
Optional
Filter
Brake Coil
