Feature Descriptions MDM6000 Satellite Modem

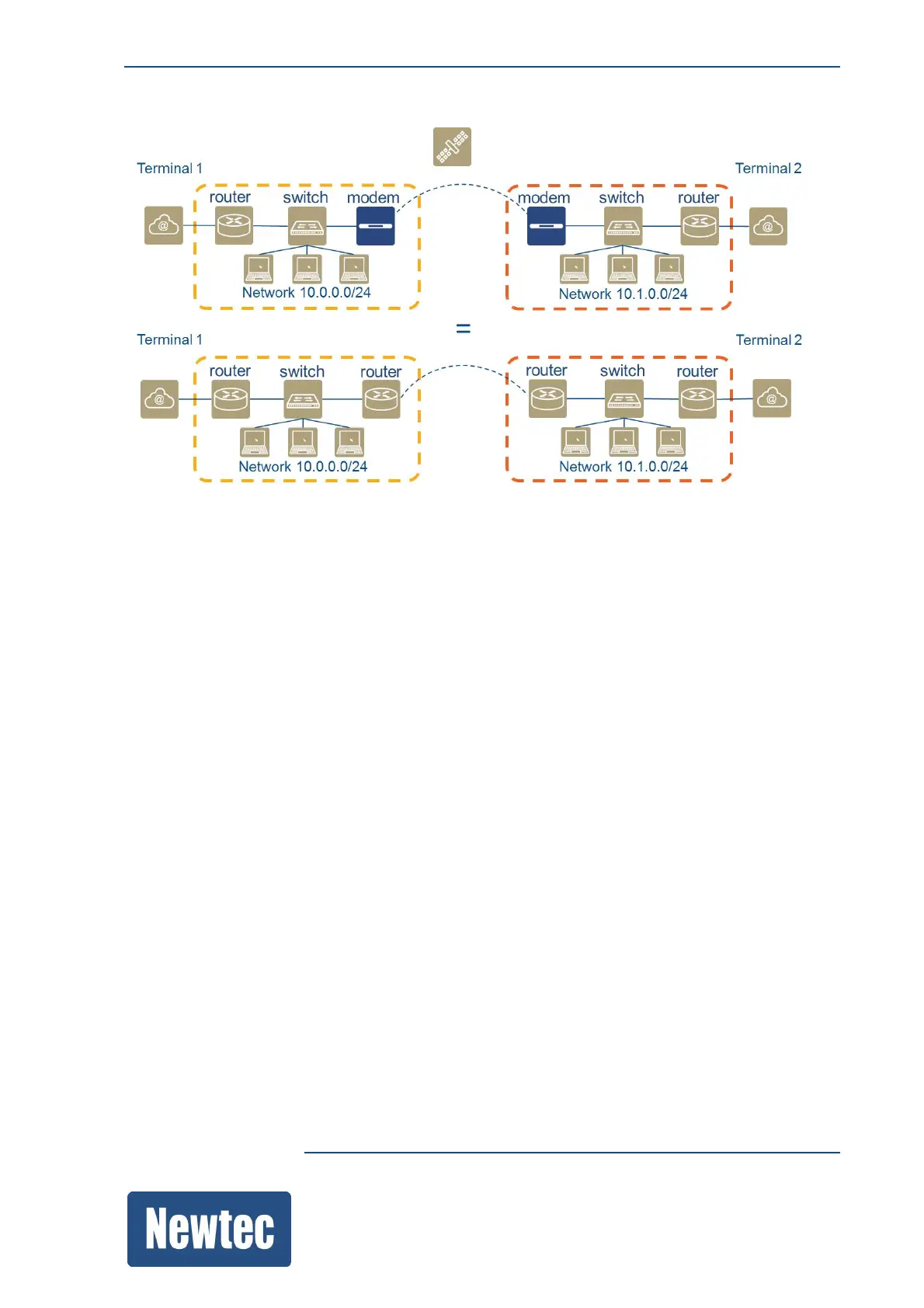

2. Layer 3 Forwarding Mode
As Layer 3 IP router, the MDM6000 can transport IPv4 packets based on static routing.In this mode,
there is less overhead (compared with L2 Ethernet bridging).
However because of the static routing, it is required to have a good IP plan made upfront (i.e. a
change of IP plan implies reconfiguring the static routes on the involved MDM6000).
