Olympus EPOCH 6LT - Figure 9-5 Name and ID of Open File on the Live A-Scan Display

DMTA-10084-01EN, Rev. 2, November 2018
Data Logger 109
When you select Save on the sidebar menu, on-screen data and settings are saved
to the currently opened file ID.

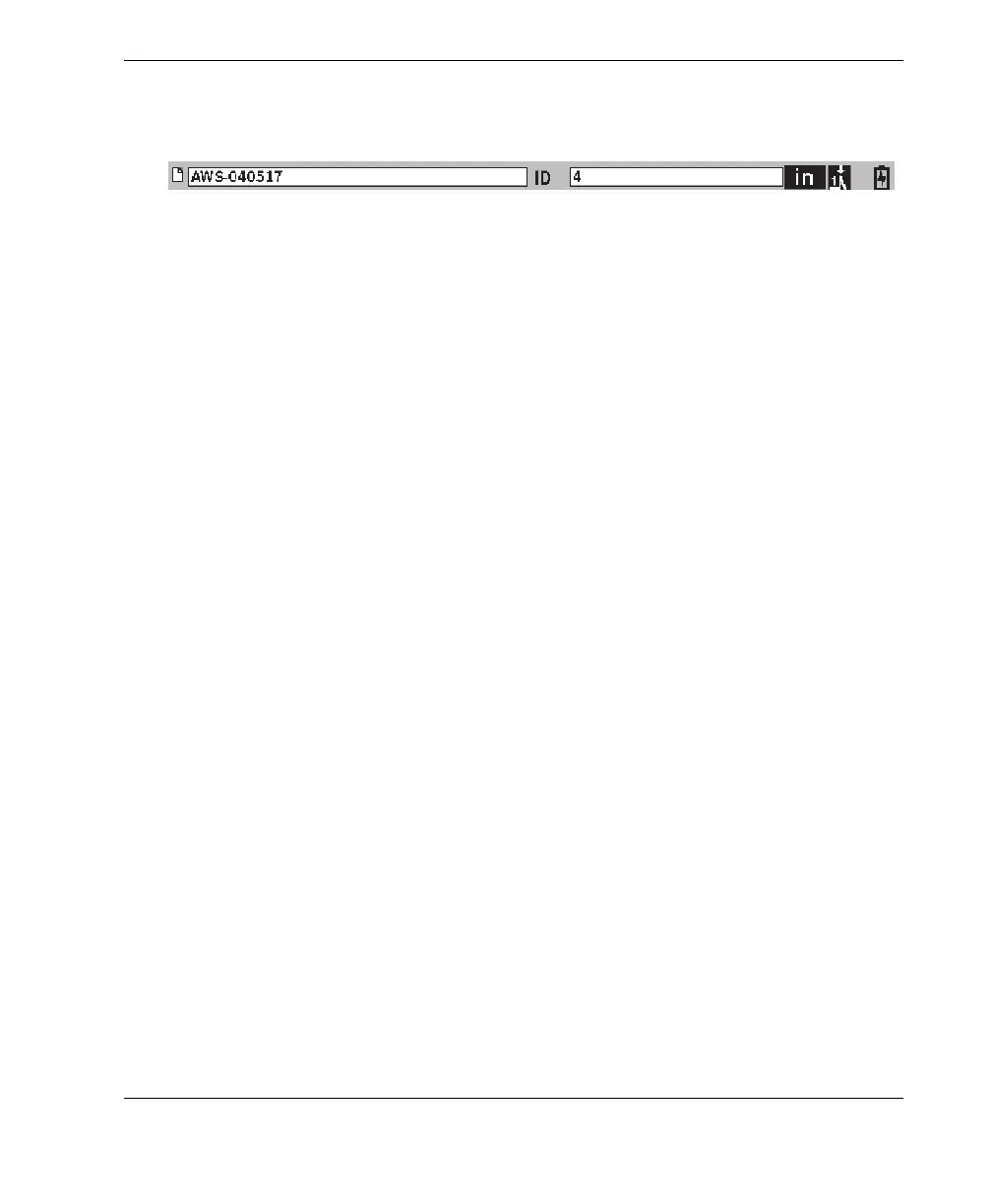

Figure 9-5 Name and ID of open file on the live A-scan display
9.4.2.2 Viewing File Contents
After you have saved data to a file, you can view the saved setup and waveform data.
The waveform and basic setup parameters are displayed on one screen (see Figure 9-6
on page 110), and the complete setup information on another screen (see Figure 9-7 on
page 111).
To view saved data
1. In the File setup page, turn the adjustment knob, and then press the Enter key to
select the file that you want to use.
2. Press the Tab key to select the Contents button.
3. Press the Enter key to view the saved waveform and the basic setup data (see
Figure 9-6 on page 110).
The ID of the file being viewed is displayed in the file identifier bar.
