Setup Mode 19
cannot access the file identifier shortcut menu or measurement reading shortcut
menu (see “Shortcut Menus” on page 28).
• A setup page occupies the entire screen and an inspection is suspended until the
setup page is dismissed.

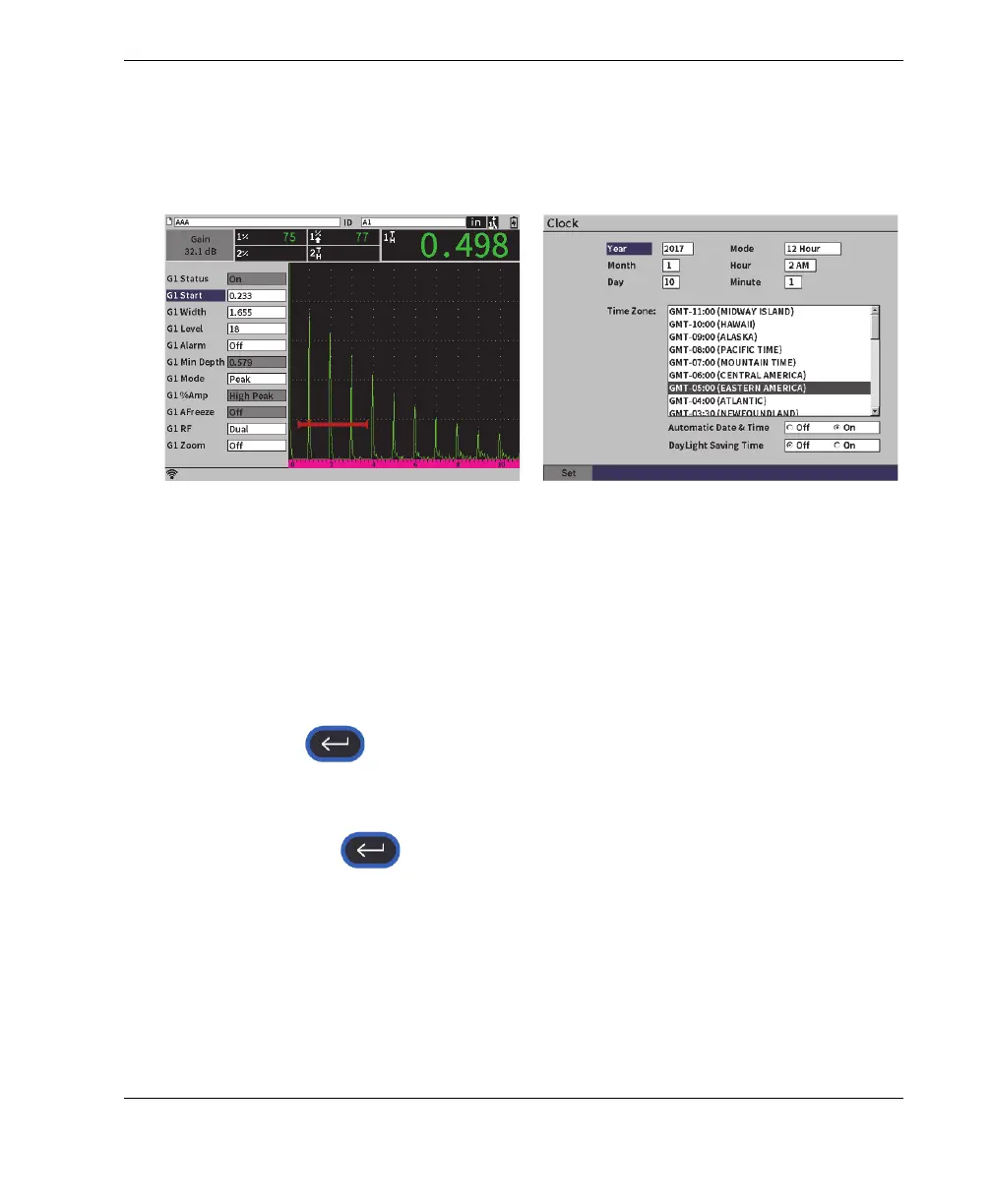

Figure 3-2 Dialog box (left) and setup page (right)
To scroll through the setup menu icons
 Turn the adjustment knob to scroll through the setup menu icons.
To select a setup menu icon for an action
 Press Enter ( ) to open a dialog box or submenu of icons.
If the action opens a submenu of icons:
a) Turn the adjustment knob to select an icon.
b) Press Enter ( ) to open a dialog box or setup page.
3.1.2 Navigating Dialog Boxes and Setup Pages
The procedure for navigating through dialog boxes and setup pages is the same for
both. When you open a dialog box or setup page, the first parameter description is
highlighted, but the parameter value is not highlighted (see Figure 3-3 on page 20).
You must highlight the first parameter value before you can change it.
