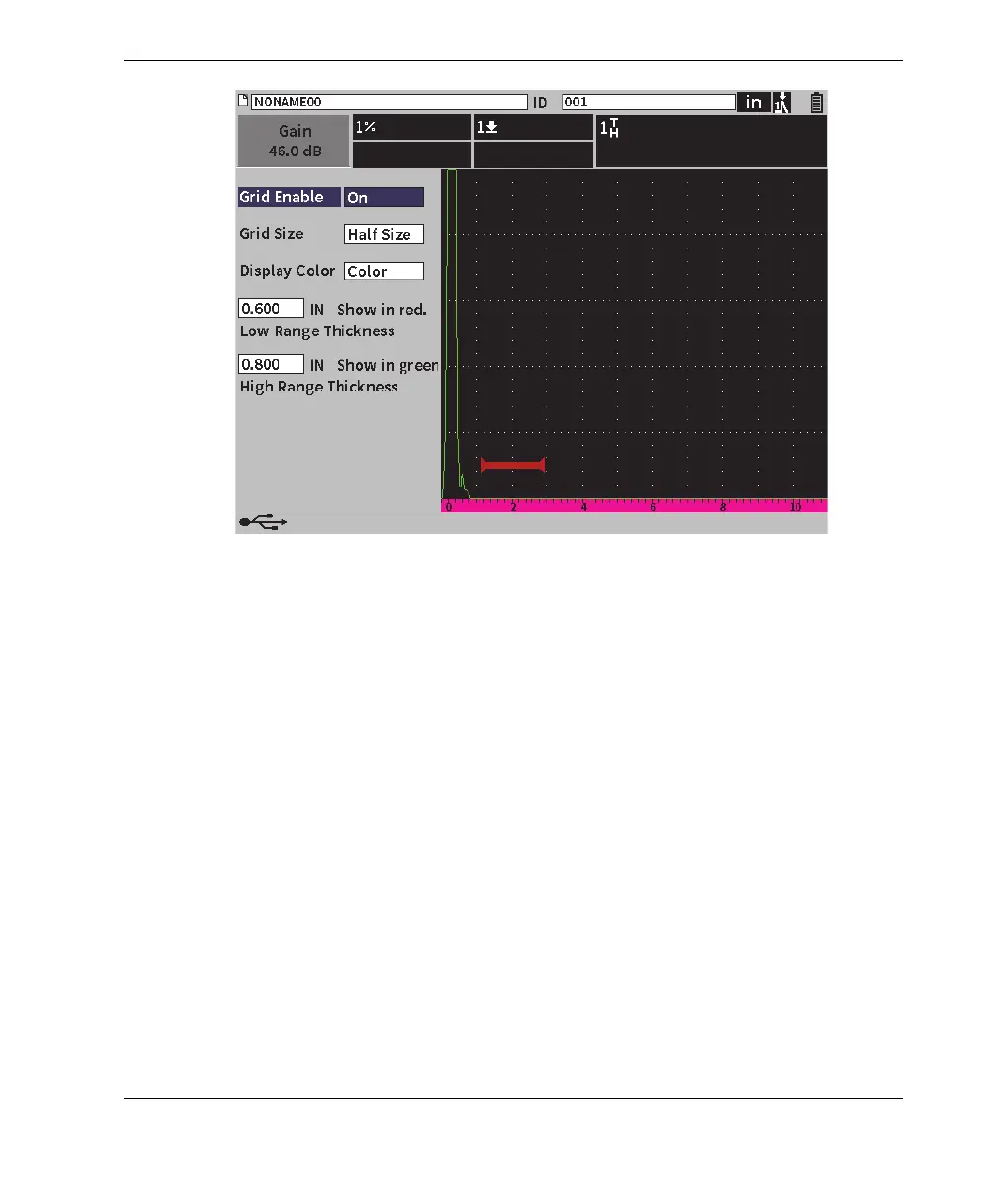

Figure 9-25 Grid dialog box
9.5.2 Configuring the Grid
Use the grid dialog box to configure the grid display options.
• Grid Size
Controls the amount of the live A-scan display dedicated to displaying the grid.
Half Size splits the live display area. The top half displays the live A-scan. The
bottom half displays the grid. Full Size uses the entire active screen area to
display the grid (no A-scan is visible).
• Display Color
Controls the cell color coding of the live grid. Mono always applies the same text
and background color to all cells in the grid.
Color applies either red, yellow, or green text or background to each cell,
depending on the value of the measurement.
— Low Range Thickness
All measurements below this value are colored red.
— High Range Thickness
