DMTA-10084-01EN, Rev. 2, November 2018
Calibration
91

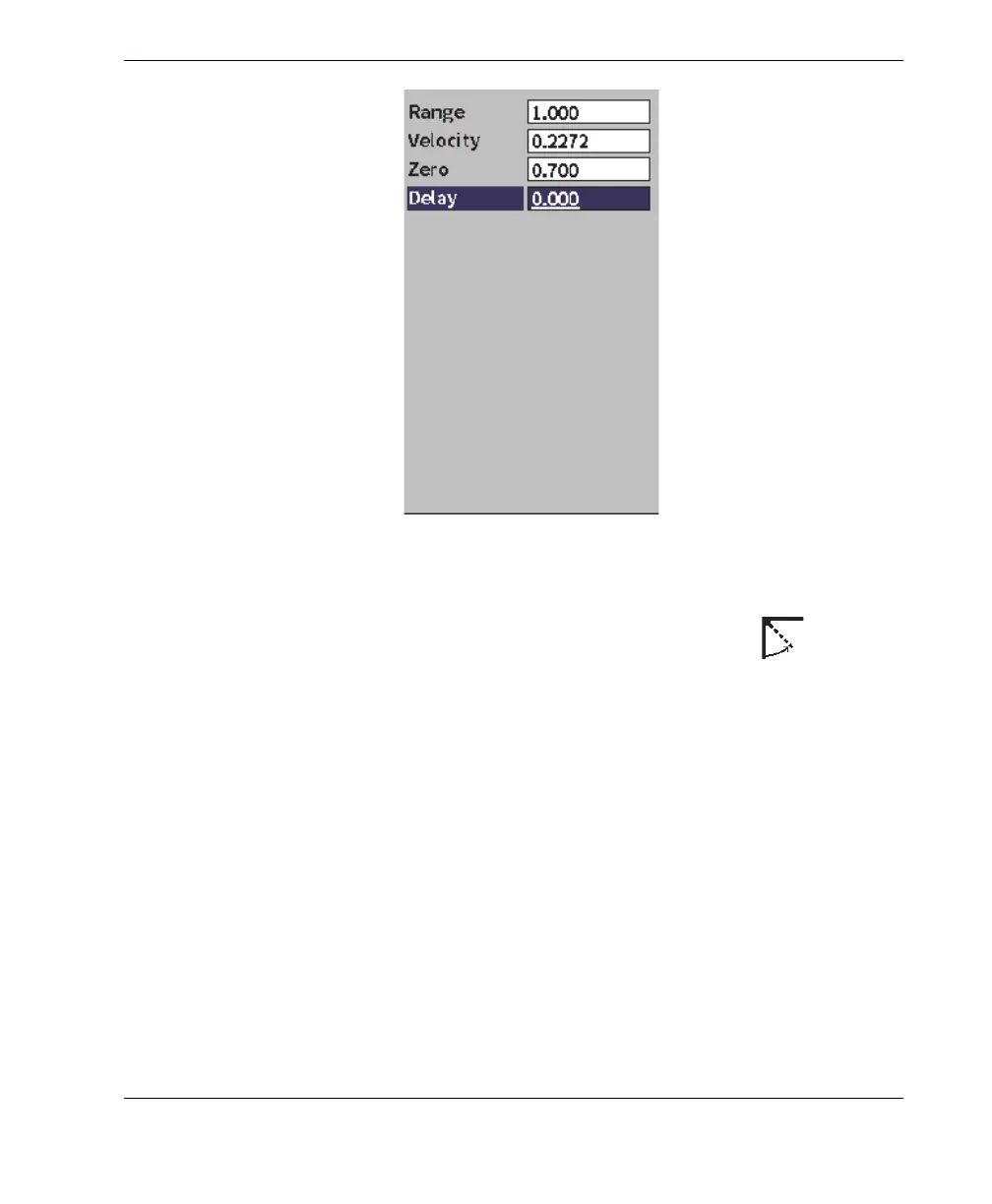

Figure 8-1 UT dialog box
8. If you are using an angle beam transducer, select the Angle icon ( ), and then
press the Enter key to open the angle dialog box (see Figure 8-2 on page 92):
a) Select Angle, and then use the adjustment knob to set the correct refracted
angle for the probe (0 for a straight beam probe, 45 for a 45° probe, etc.).
b) Press the Tab key to move to Thick, and then adjust the material thickness to
0.000.
9. Press the ESC key twice to return to the setup menu.
