DMTA-10084-01EN, Rev. 2, November 2018
Chapter 5 46
The flags that appear in the upper-right corner of the display indicate units (see Units
on page 49 and “Flags” on page 207), gate measurement modes (see “Gate
Measurement Modes” on page 75 and “Flags” on page 207), and battery status (see
“Flags” on page 207).

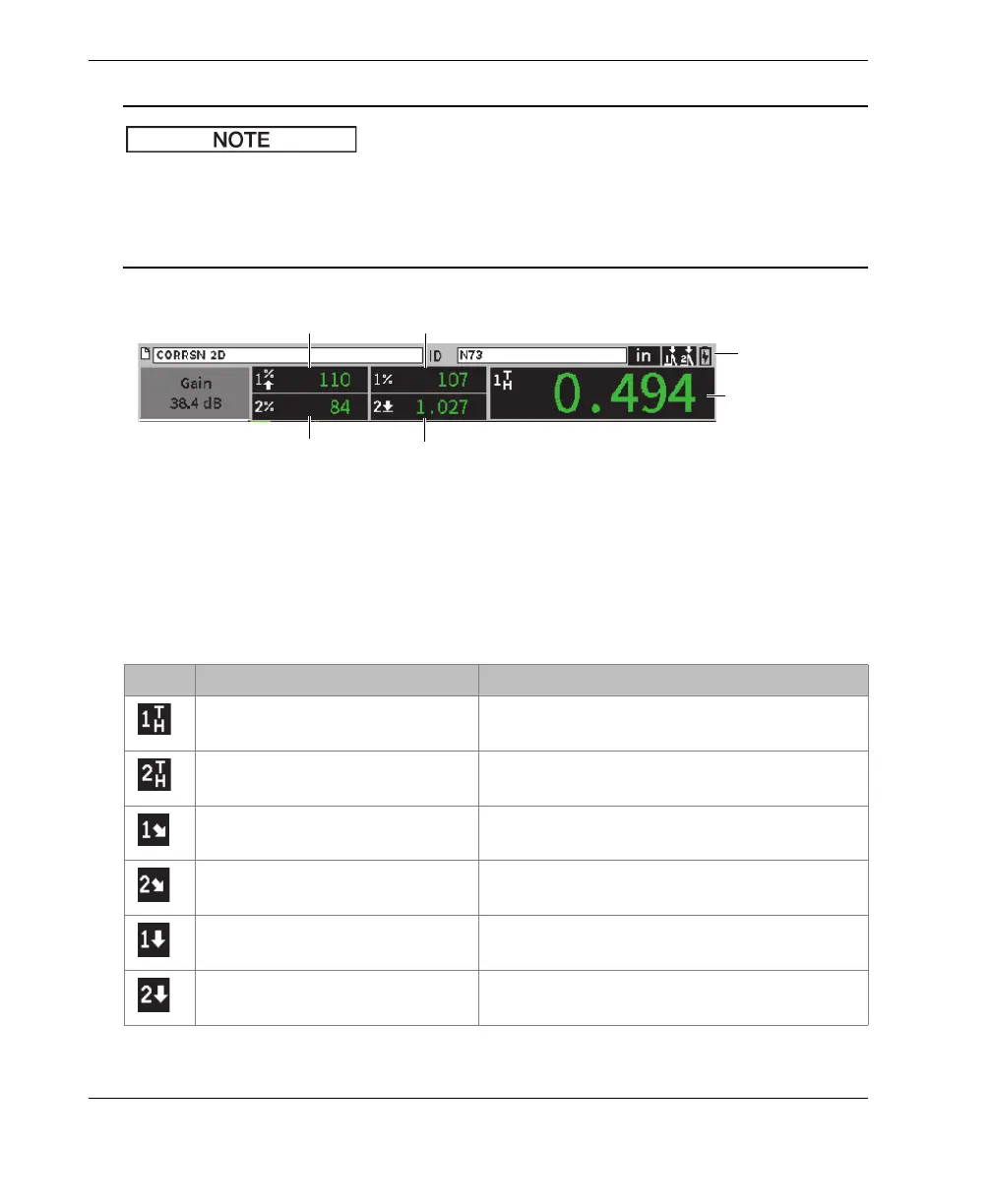

Figure 5-10 Example of measurement reading boxes with icons
Table 3 on page 46 describes the available measurement readings.
Table 3 Available measurement readings
Flag Measurement reading Description
Gate 1 Thickness Thickness in gate 1. Not used with the
Angle setting.
Gate 2 Thickness Thickness in gate 2. Not used with the
Angle setting.
Gate 1 Soundpath Distance Sound path (angular) distance in gate 1.
Gate 2 Soundpath Distance Sound path (angular) distance in gate 2.
Gate 1 Depth to Reflector Depth to reflector in gate 1. Used with the
Angle setting.
Gate 2 Depth to Reflector Depth to reflector in gate 2. Used with the
Angle setting.
NOTE
Reading 5
Reading 4
Reading 2
Reading 3
Reading 1
Flags
