DMTA-10084-01EN, Rev. 2, November 2018
Chapter 2 12
2.1 File Identifier Bar
The file identifier bar appears at the top of the live A-scan display and shows the
name and the ID number of the currently opened file (see Figure 2-2 on page 12). The
file identifier bar also displays status flags.

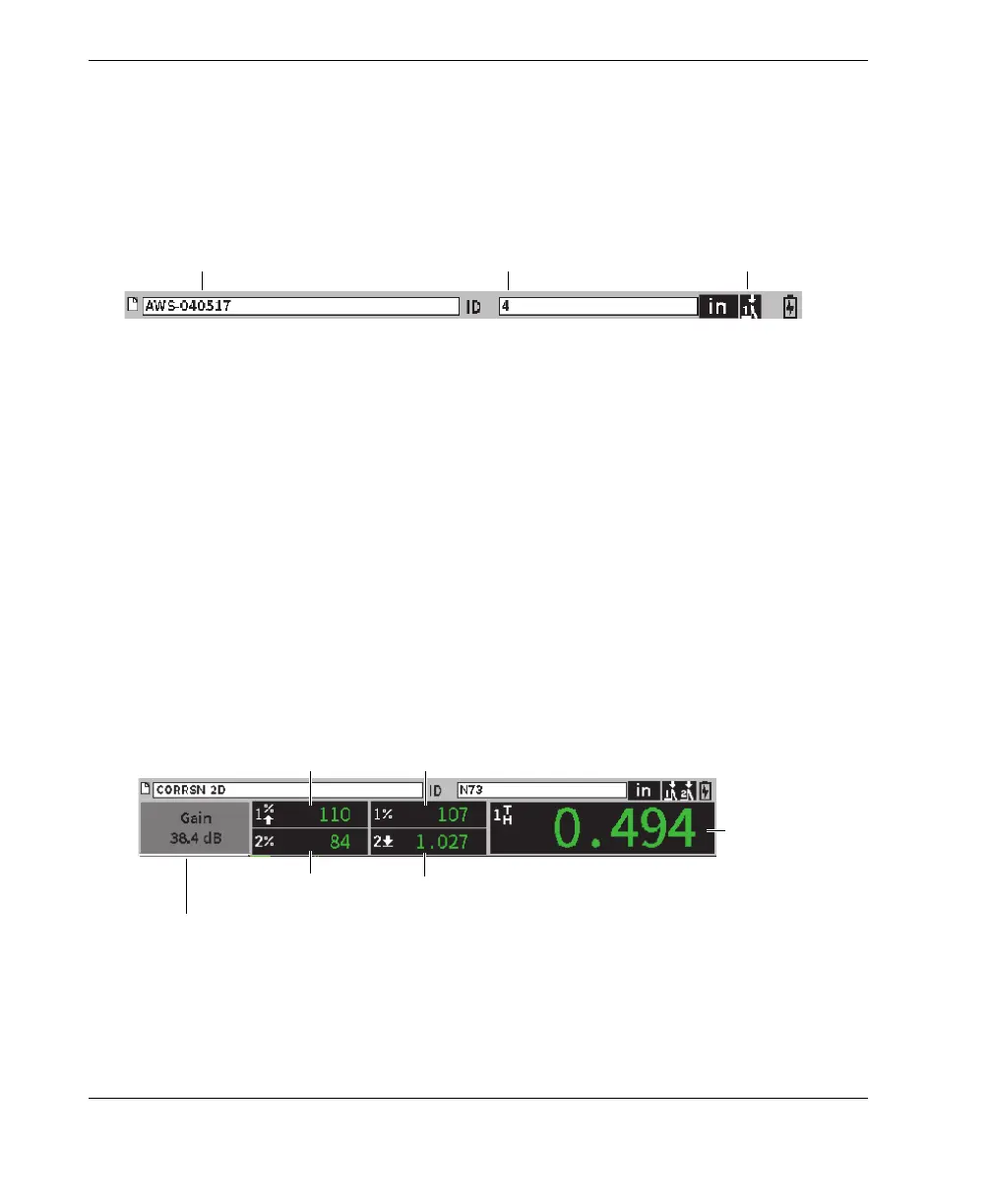

Figure 2-2 File identifier bar with ID example
2.2 Gain Adjustment Box
The Gain adjustment box is used to display and set the reference and scanning gain
(see Figure 2-3 on page 12).
2.3 Measurement Reading Boxes
The measurement reading boxes at the top of the live A-scan display present the icons
and digital values for up to five selectable measurements (see Figure 2-3 on page 12).
See “Measurement Setup Page” on page 44 for a description of available
measurements and details on how to select measurements.
Figure 2-3 Measurement reading boxes example
File ID number
File name
Flags
Reading 5
Reading 4
Reading 2
Reading 3
Reading 1
Gain adjustment box
